2012 Latest Cheap Popular Kidde Ride for Carnival and Amusement Park

Specifications

1. CE & RoHs Approved;
2. ISO & TUV;
3. Germany Technology;
4. European Quality Standard;
5. Reliable Working Performance

This tourist road train is specially designed for city tour and sightseeing purpose. They are widely used in cities, towns, or

amusement parks, resorts, and so on. It is with high climbing capacity, and could widely used in some hilly or mountain

area for tourists transportation.

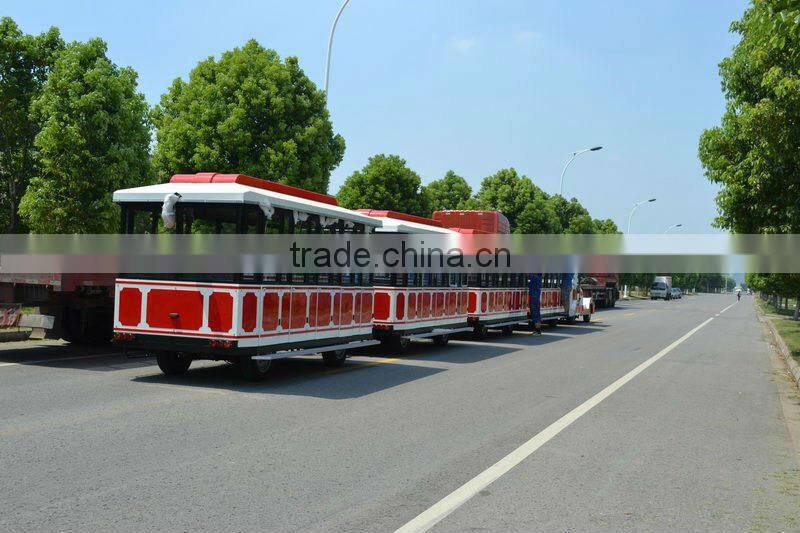

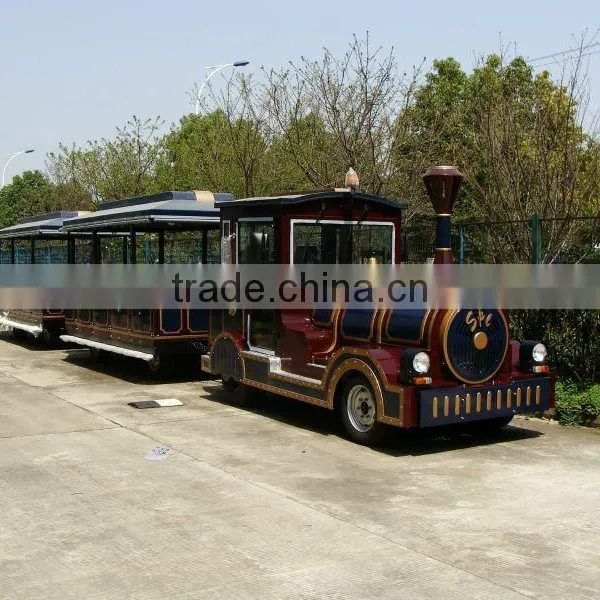

Product picture:





Specification:



SIZE	PQC92:3965*1620*2210mm                                        PTC20: 4987x1810x2410mm
WEIGHT	PQC92: 2500kg;   PTC20 :1180kg
ENGINE	IVECO   Sofim 8140.43S3 Diesel Engine, 92kw, 2.8L
EMISSION	EURO 3
TRANSMISSION	IVECO   original manual gearbox, 3F+1R
MAX   SPEED	20km/h
CLIMBING   CAPACITY	20%
MIN   TURNING RADIUS	6.5m
PASSENGERS	20seats   per wagon, 62seats per train



Advantages



1) Product made by the joint venture by China and Austria

2) CE approval according to European regulation

3) ISO approval from TUV Germany

4) The train body is using environmental FRP material with European ROHS testing



MOTOR

IVECO Sofim 8140.43S diesel engine, common rail, 4 cylinders, Turbo-charged, intercooler, direct injection, Displacement

of 2798cc, Rated power of 92/3600 KW/(r/min), EURO 3, TUV approval





CHASSIS

Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power.



BRAKES

Hydraulic drum brakes on wheels; parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic

circuit for coach braking.





TRANSMISSION

Original IVECO transmission, 3 forward gears with reverse, speed is reduced by using helical gears.



BODY

Made of reinforced fiberglass, with ROSH approval.



Standard Equipments of Locomotive:

• Locomotive Doors
• Bell
• Rotary light for locomotive
• Battery
• MP3 player system
• Leather Seat with E-mark approval Safety Belts
• Adjustable Steering system
• Bus Combination Electric system including dashboard
• Storage Box
• Front windscreen wiper and water spray system
• Inner reading light
• Side mirrors and inner mirror

Standard Equipments of Coach:

          Emergency Alarm button for coach

• Inner lights for coach
• Sound system for coach
• Leather seats
• Foot board for coach
• Rotary light for last wagon
• Open coach without doors would be with chain as standard protection equipment
• Closed coach with door-ajar  indicators



Detailed pictures



Air & Hydraulic double braking system. The Locomotive and wagons brake at the same time. The wagons will brake itself when not connected with Locomotive.



Equipped with Video playing system, including MP5 player and 17-19 inch LCD Video screen





Company



SPL train, is a group company with Headquarter and Manufacturing center in China, who devotes itself to

thecareer of Tech innovation in the field of trackless fun trains, sightseeing vehicles & accessories. During

the development, not only do we insist on tech innovation, but also we pursue concept innovation, product nnovation and cooperation innovation etc. We have been cooperating with our European partners , and  successfully established business relationships in more than 70 countries in the world.

Our markets are mainly in Europe, Southeast Asia, and North America. With strict quality control, continuous

innovation, excellent service, and smooth cooperation with our partners, we have shared fruitful harvest with

partners and customers.





Joint venture with Austria



SUZHOU PLAYER, as the joint venture with European company, with the technical cooperation with

Europe, it grows up quickly. In 2009, the company has passed the inspection of German TUV company,

and got the ISO approval from them. And the same year in Cologne, the wagons from SPL has passed

approval from TUV, and got registration for public road us in Germany.



Product rage





Certificate



ISO Certificate from TUV







SGS certificate



CE certificate



Cologne Church, Germany

Safari Park Use, Xining





Our partners and distributors
