Electric Garbage Barrel Collection Truck,EG6020X

Electric Garbage Barrel Collection Truck,EG6020X thumbnail-1
Electric Garbage Barrel Collection Truck,EG6020X thumbnail-2
Electric Garbage Barrel Collection Truck,EG6020X photo-1
Electric Garbage Barrel Collection Truck,EG6020X photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification EEC
Product Description
Electric garbage barrel collection truck--EG6020X


Model
EG6020x
System
48V/4KW AC Sepex
Battery
8xT105(185Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1204 (275A@2minutes)
Dimensions
Overall dimensions (mm)
3750X1400X1810
Rear garbage bin
1720X1090X1170
Min. ground clearance (mm)
140
Wheelbase (mm)
2450
Front wheel tread (mm)
1160
Rear wheel tread (mm)
1150
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input 110V-240V~50Hz-60Hz, output 48V, 22A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
4-wheel hydraulic brake, front disc brake, rear drum brake
Front suspension
Independent suspension, helix spring + shock absorber
Rear suspension
rear plate spring + shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio12.49:1
Wheel & Tyre
20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Body and Frame
Frame
Welded steel framework with sand blasting+paint treatment
Body
Fibreglass
Roof
Fibreglass+steel frame
Windshield
Laminated glass
Large Seats:
1) backrest and cushion
Sponge + artificial leather
2) armrest
Soft expanded plastic
Floor
Bamboo + artificial leather
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>70
Max. speed @12.49:1 gear ratio
30
Max. speed @10.25:1 gear ratio
/
Minimum turning radius (m)
4
Max. climbing ability (loaded) @ 12.49:1 gear ratio
15%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
500kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

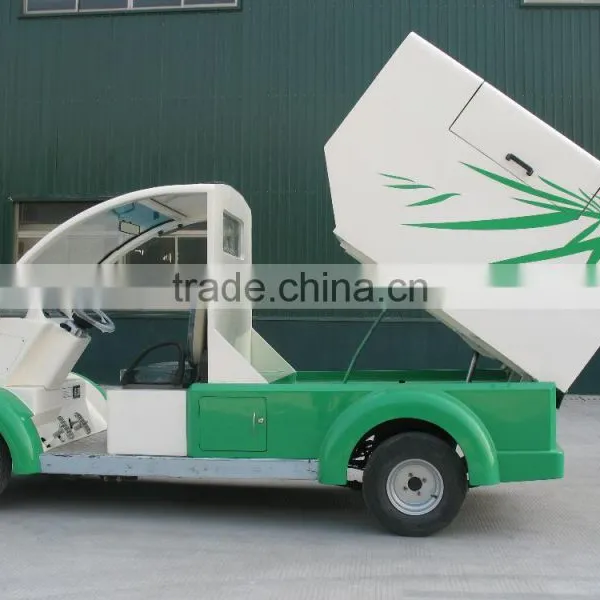

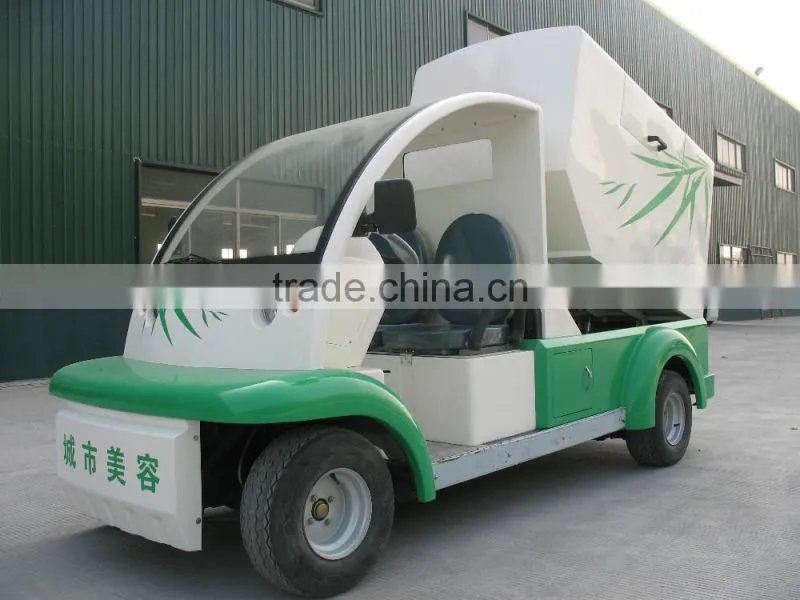

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Assembled
20'ft GP
1
40'ft GP
2
40'HQ
2
Other Products

EG2028HR

.https://img13.fr-trading.com/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

https://img13.fr-trading.com/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided

Certifications
