Full Automatic Sleeve Shrink Packing Machine

Full Automatic Sleeve Shrink Packing Machine photo-1
US$ 5,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V, 50Hz, 3 phase
Power 30-100KW
Place of Origin Shanghai, China
Brand Name TNN
Model Number TNN
Dimension(L*W*H) customized
Weight customized
Certification None
After-sales Service Provided Overseas service center available

Specifications

sleeve shrink packing machine
A.automatic
B.good quality
C.low consumption
D.especially for big size material

Full Automatic Heat Shrink Wrapping Machine for big material

Suitable Range:

  1. Product film wrapping + Heat shrinking - Full automatic
  2. Be used for multi-row or single-row packaging of purified water, zip-top can, beer, pharmaceutical, infusion bottle etc. Or can be directly used for cartons of all sizes. Performance is stable and output is high. After packaging, product is neat, compact, and beautiful.
  3. Contacting directly with production line.
  4. shrink wrapping machine for big size product
    A.full automatic
    B.good appearance
    C.low consumption
    D.especially for big size material

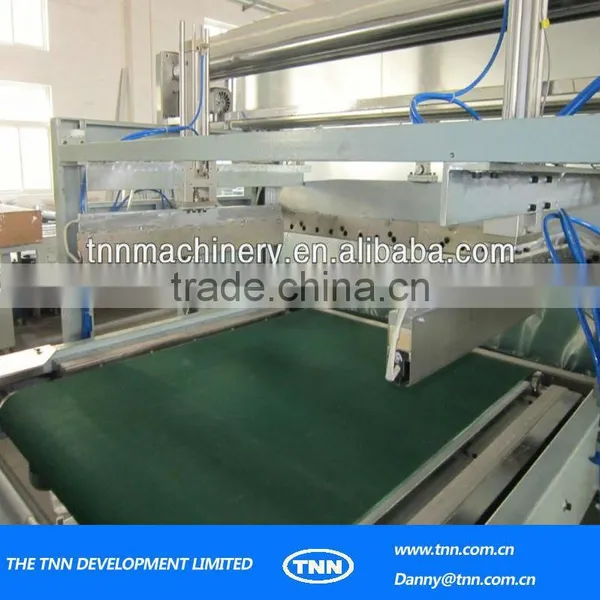

Full Automatic sleeve shrink packing machine



Technical parameters

Model

TNN

Horizontal Height of Feeding Conveyor

800mm + - 50mm (Customizable)

Max Packing Dimension

L3000 * W1500 * H500

Packing Speed

2-10 Pack/min

Power Supply, Heating power

380V, 50Hz, 3 phase

Air Pressure

0.6 MPa

Shrink tunn  temperature

180-220 centigrade

Machine size (L×W×H)

 L11100×W2500×H2000 mm

Net weight:

1-10 tons



Factory

The factory is over 2,000 square meters and have over 50 staffs.

Modern processing equipment to control the quality strictly.





Customer visiting

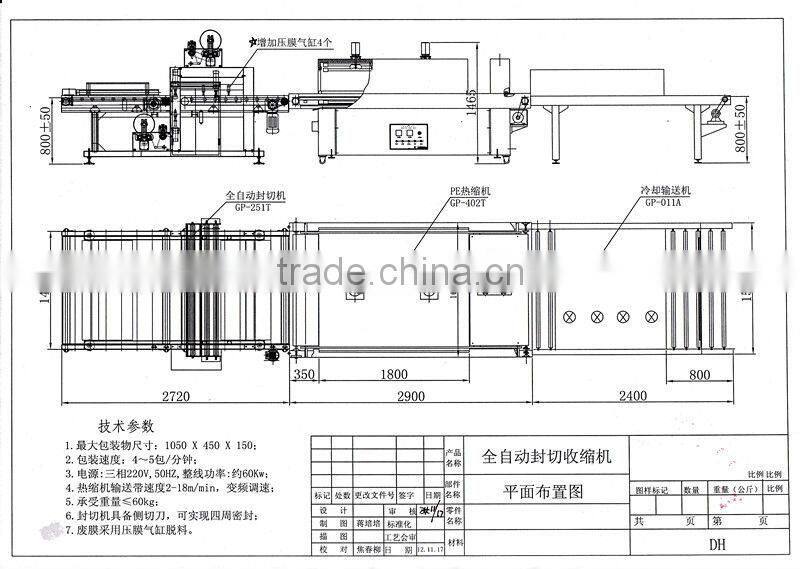

Machine drawing



Company Activities





Certificate

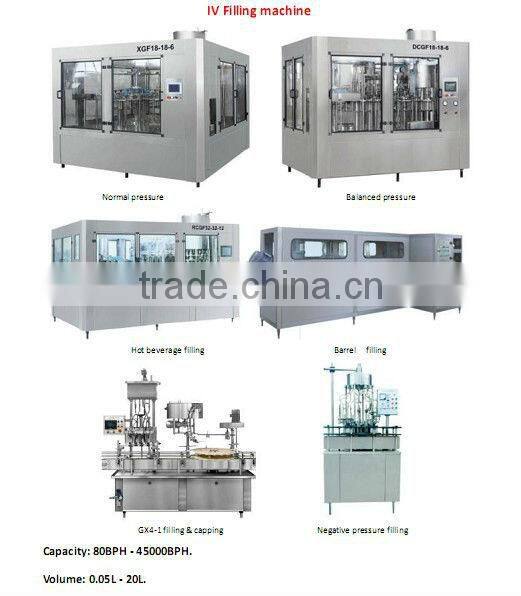

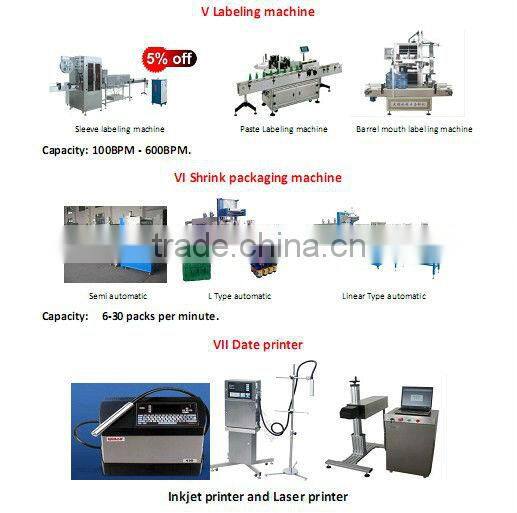

You may also interested in the following products.

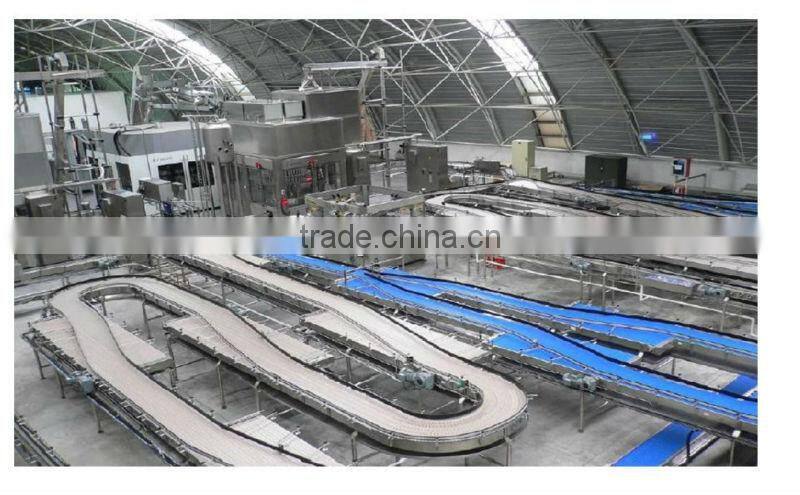

Whole production plant design



TNN Development Ltd. (TNN) is an export-oriented, overseas-funded enterprise established in October, 1998.



TNN has passed ISO 9001: 2008 verification, TNN management and operation has obtained international advanced level.



Our goal is: Make your life better!

***********************************
