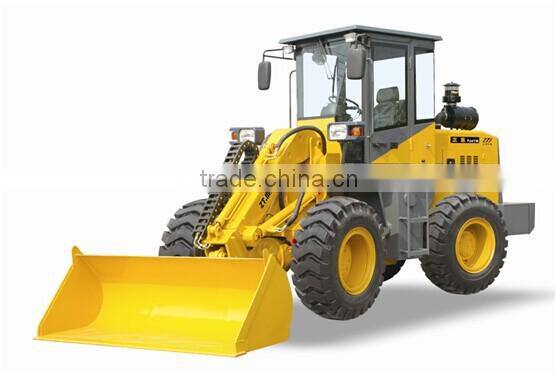

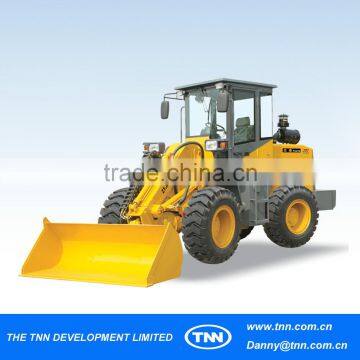

#12-5 fast delivery garden bulldozing loader 2010kg ISO certificate

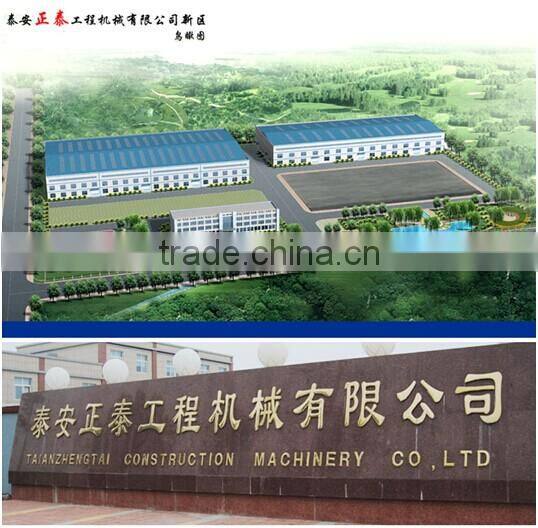

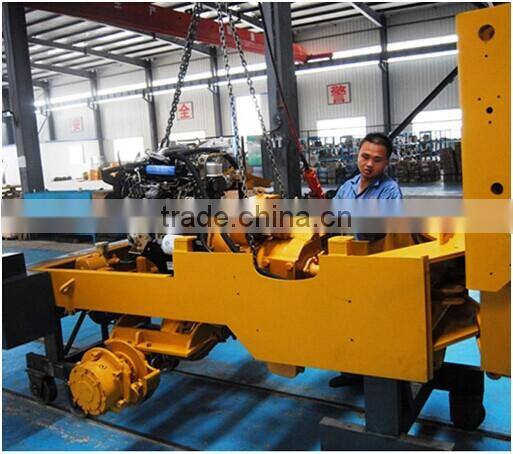

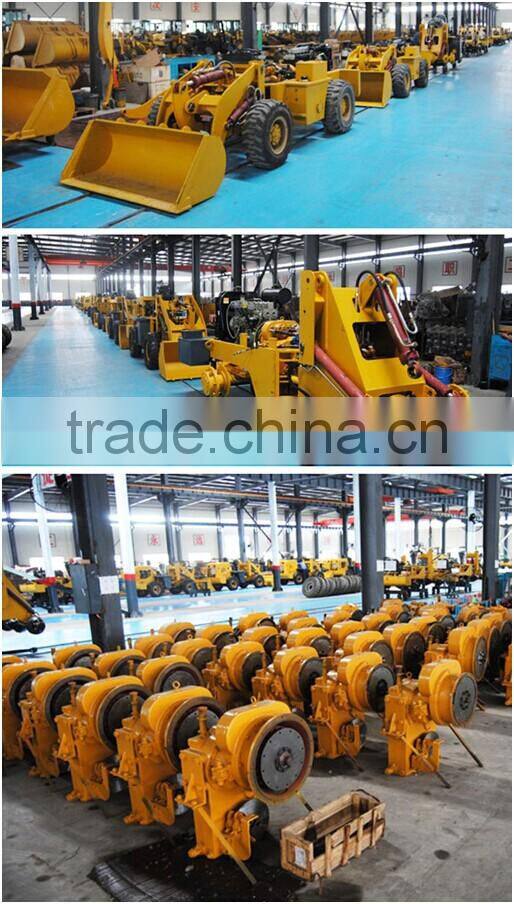

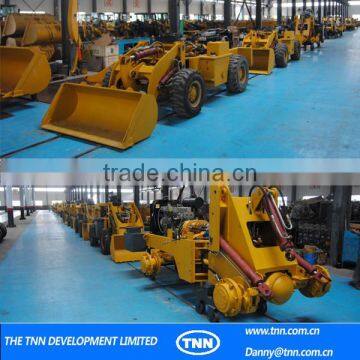

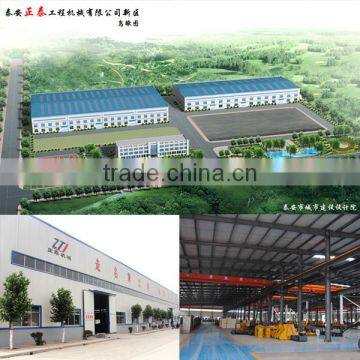

The TNN Development Limited is specializedin machine exporting, invested factory named ZT machine group who is producing wheel loader, skid steer loader and excavatoer
Rated load capacity | 4Tm |
operating weightkg) | 6000 |
Max.breakout force(kN) | 55 |
Max.dump height(mm) | 4250 |
Max.dump reach(mm) | 300 |
Max.grade ability(°) | 30 |
Automatic leveling ability | Y |
Total cycle time(lifting, dumping, lowering)(s) | ≤10 |
Wheel base(mm) | 2350 |
Tread(mm) | 1500 |
Min.ground clearance(mm) | 300 |
Overall dimensions (l×w×h)mm(mm) | 5670×2060×2750 |
travel speed(km/h) |
|
Forward gear I | 0~6 |
II | 0~24 |
reverse gear I | 0~6 |
II | 0~24 |
Engine Model | cummins4BT3.9-C100 |
Type | Inline, water cooling, direct injection four-stroke |
Rated power(kW) | 60 |
Rated speed(rpm) | 2400 |
Maximum torque(N·m) | 305 |
Hydraulic torque converter/transmission model | YJ280 /ZL15-I |
Hydraulic torque converter/transmission type | Fixed shaft type hydraulic power shift change. |
Transmission gear | FORWARD 2 reverse 2 |
Drive axle | 20F |
Tire model | 16/70-20 |
Steering model | BZZ5-320 |
Multi-way diverter valve model | ZL20 |
operating oil pump | CBG2063 |
The system pressure(MPa) | 17 |
The braking system | Gas-liquid caliper disc brake |
The voltage(V) | 24 |
