#8 new designed low top bottle blowing machine exporter
A.full automatic function
B.free bottle, label design
C.2years guarantee
D.1year free parts

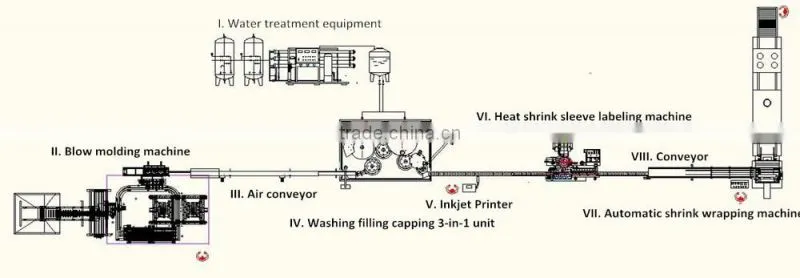

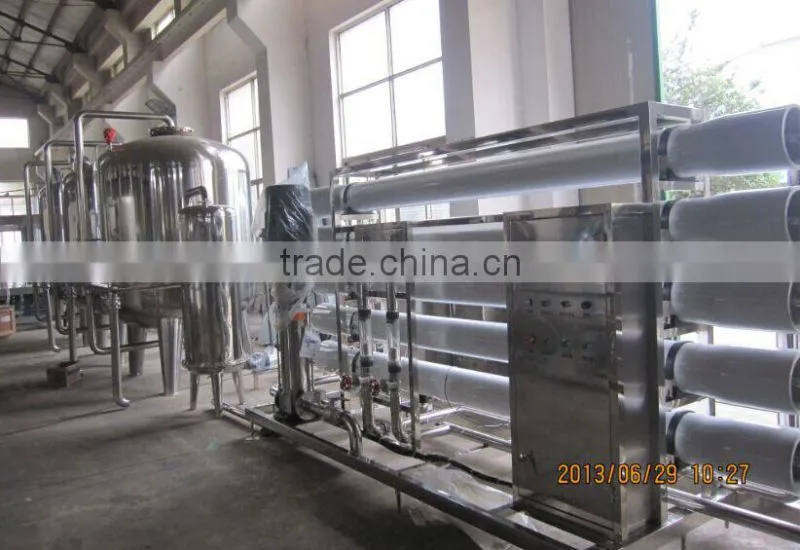

I. Water treatment equipment
Application |
water purification, before filling in the bottle |
Capacity |
1-20ton per hour |
Processing included |
Sand filter, Active carbon filter, Precision filter, high pressure pump, RO system, UV sterilizer, Ozone sterilizer and water tanks. |
II. Blow molding machine

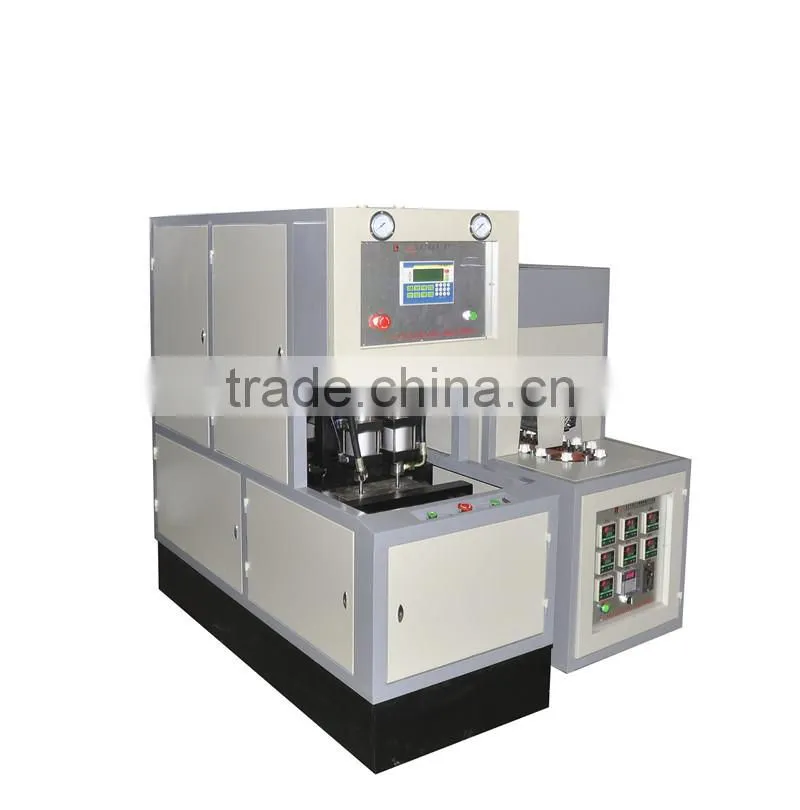

Option 1: HY Series semi automatic blow molding machine Click here to learn more
Application |
To make PET plastic bottles |
Model |
HY Series |
Bottle size |
0.1-2.5L, 3-6L, 6-10L, 20L |
Capacity |
60-1500BPH |

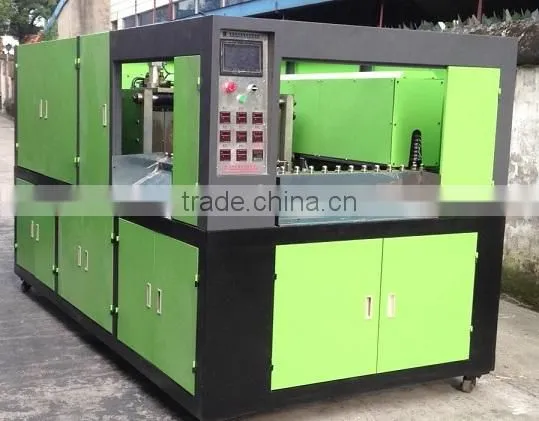

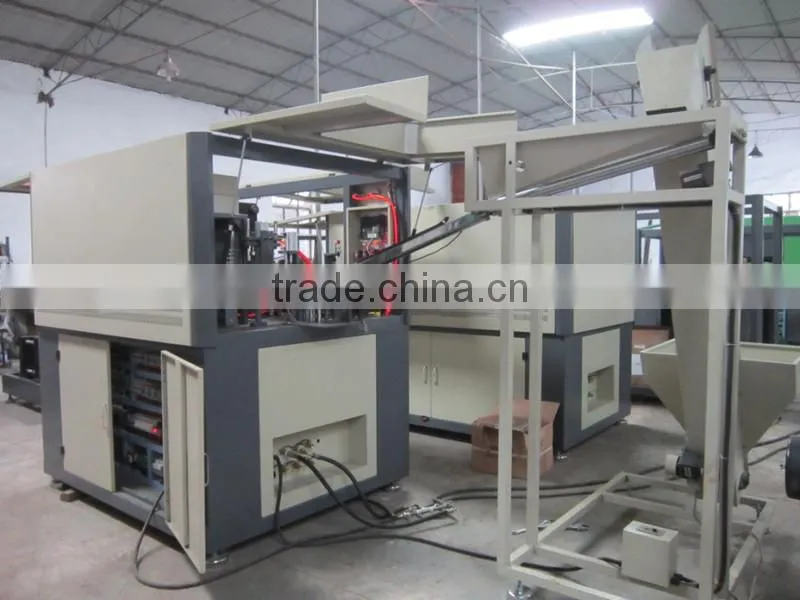

Option 2: TNN Series full automatic blow molding machine Click here to learn more
Application |
To make PET plastic bottles |
Model |
TNN Series |
Cavity No. |
2/4/6/8 |
Bottle size |
0.1-2.0L, 3-10L |
Capacity |
800-9000BPH |

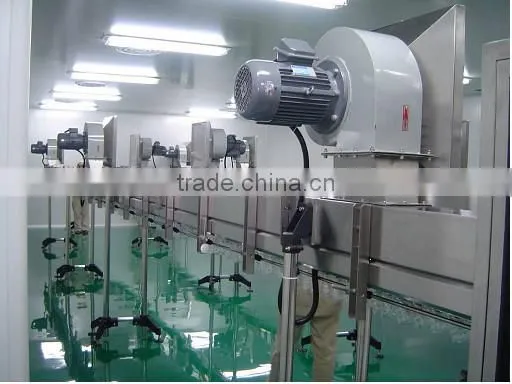

III. Air conveyor
Application |
To transfer empty bottles to the 3-in-1 unit by wind |
Conveyor height |
1.25-1.50m |
Bottle neck |
28mm, 30mm, 38mm, etc |
Bottle size |
0.1-2.0L |
IV. Washing filling capping 3-in-1 unit Click here to learn more
Application: Washing, filling and capping the bottle, for water filling machine.
Model |
XGF8-8-3 |
XGF12-12-6 |
XGF18-18-6 |
XGF24-24-8 |
Rinsing head |
8 |
12 |
18 |
24 |
Filling head |
8 |
12 |
18 |
24 |
Capping head |
3 |
6 |
6 |
8 |
|
Capacity (based on 500ml) |
2000-3000BPH |
4000-5000BPH |
6000-8000BPH |
8000-10000BPH |
Diameter of bottle |
φ50-φ100mm |
|||
Height of bottle |
160-340mm |
|||
Bottle volume |
0.3-2.0L |
|||
Machine power |
2.7 KW |
3.5 KW |
4.8 KW |
5.8 KW |
Power supply |
380V 3 phase, 50Hz or customized |
|||
Weight |
2100kg |
2300kg |
2800kg |
4800kg |
|
External dimensions (L×W×H) |
2100×1700×2100mm |
2200×1800×2100mm |
2400×1950×2100mm |
3200×2100×2600mm |
V. Inkjet Printer
Application |
To print Production date and Expiry date on the bottle |
Character height |
1.2~15mm |
Printing lines |
1-2 lines (adjustable) |
Power supply |
AC 220V 50HZ, 1- phase |
Total weight |
120kg |
Overall size |
600×500×1250mm |
Expiry date, Batch numbers, Logos, Automatic date, Time, Shift, Incremental numbering.
VI. Heat shrink sleeve labeling machine TNN-SLM Series Click here to learn more
Application |
To sleeve and shrink labels on the bottle |
Model |
TNN-SLM Series |
Bottle size |
0.1-2.5L |
Capacity |
3,000-36,000BPH |
VII. Automatic shrink wrapping machine TNN-SPM Series Click here to learn more
Application |
To shrink packing certain numbers of bottles in a pack by PE film |
Model |
TNN-SPM Series |
Bottle size |
0.1-2.5L |
Capacity |
6-35packs per minute |
VIII. Conveyor
Conveyor is used for connecting machines together and making them function well.
The width and height can be customized by client.
IX. PET preform, bottle cap, PVC label, PE film
2 years of quality guarantee period.
We will supply standard spare parts and accessories with all machines when shipment.
Within 2 years after receiving our machines, under proper operation,
If there are any damaged spare parts or accessories,
We will replace them by DHL express immediately FREE OF CHARGE.
We will send technicians to install the machine and teach your staff how to use it. All the cost should be stood by the customer, including visa fee, round way air ticket, food, hotel and $80 per day for each technician.
Free bottle design
Free label design
For more information, please feel free to contact with us at any time!
