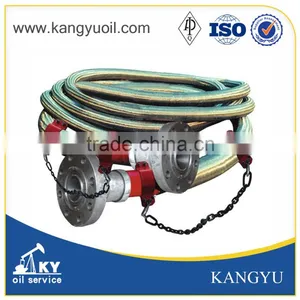

Help CenterChoke and Kill Hose 7200PSI API Spec 16C
Related Products
API16C Standard Choke and Kill hose
Tube: Fluoroelastomer , resists abrasion, corrosion, oil, weather and up to 20% H2S
Reinforcement: Multiple layers of polyester cord over tube, high tensile steel cables.
Cover: NBR, Specially compounded, resistant to abrasion, corrosion, cutting, gouging, oil and weather.
Application: Flexible Connection between standpipe and swivel(Rotary Drilling) or between pump and standpipe(Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work.
Fitting: Hammer Unions, API Male End, Flanges
Attachment: Safety Clamp & Chain
Applicable Standard: API Spec 16C
ID, mm(inch) | WP,MPA(PSI) | BP,MPA(PSI) | Min. Bending Radius(mm) |
50.8(2) | 35.0(5000) | 105.0(15000) | 900 |
64(2 1/2) | 1000 | ||
76(3) | 1000 | ||
89(3 1/2) | 1100 | ||
101.6(4) | 1200 | ||
50.8(2) | 52.0(7200) | 70.0(10000) | 1950 |
63.5(2 1/2) | 1000 | ||
76.2(3) | 1050 | ||
89(3 1/2) | 1150 | ||
101.6(4) | 1250 | ||
50.8(2) | 70.0(10000) | 157.5(22500) | 1000 |
63.5(2 1/2) | 1100 | ||
76.2(3) | 1150 | ||
89(3 1/2) | 1200 | ||
101.6(4) | 1250 | ||
50.8(2) | 105.0(15000) | 236.25(33750) | 1000 |
63.5(2 1/2) | 1150 | ||
76.2(3) | 1200 | ||
50.8(2) | 138.0(20000) | 310.0(45000) | 900 |
64(2 1/2) | 1100 | ||
76.2(3) | 1200 |
