Help CenterAPI Oilfield Drill Collar Lifting Sub
Related Products

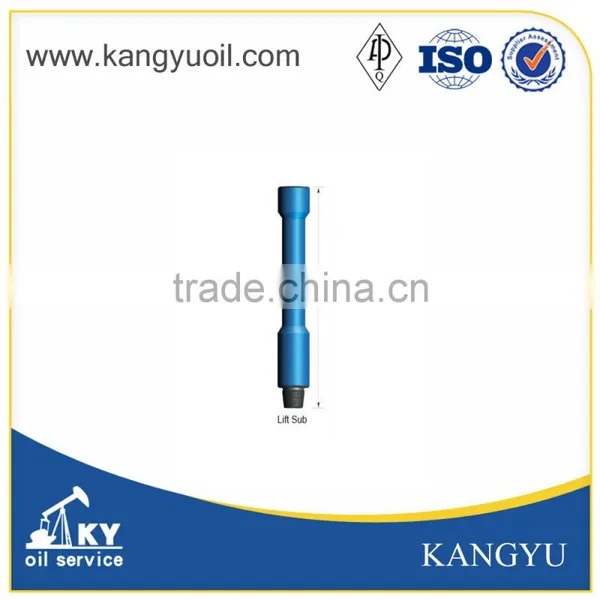

API Drill Tool Lifting Sub
The Lifting sub is a tool for lifting down hole drilling tools such as drill collars, drill pipes etc. in oil, gas and geology field drilling operations.
The structure is devided to two types: "A" and "B". The shoulder of Type A is 18°, type B is 90°, which could be chosen according to the elevator structures. The connections should suit to the drill string which is connected to it. The lifting groove is clamped by elevator.
Model |
Elevator groove OD mm(inch) |
Sub OD. mm(inch) |
Length mm(inch) |
Connection |
TDJ60.3 |
60.3(2-3/8) |
73.0(2-7/8) |
915(36),1200 |
NC23 |
TDJ73 |
73.0(2-7/8) |
88.9(3-1/2) |
NC26 |
|
TDJ 88.9 |
88.9(3-1/2) |
104.8(4-1/8),120.6(4-3/4) |
NC31,NC38 |
|
TDJ 114.3 |
114.3(4-1/2) |
158.8(6-1/4) |
NC46 |
|
TDJ 127.0 |
127.0(5) |
165.1(6-1/2),177.8(7) |
NC46,NC50,5-1/2FH |
|
TDJ 139.7 |
139.7(5-1/2) |
203(8) |
C56,6 5/8REG |
|
TDJ 168.3 |
168.3(6-5/8) |
229(9) |
7 5/8REG |
183
