2017 Popular Model XC6-4517/XT680-170/ 4WD Lifting capacity 4.5TON 16.7M Telescopic Handler
Main description:
Engine Cummins 82kW
Max.lifting capacity 4500kg
Lift height 16700mm
Fork length 1200mm
Operating weight: 13500kg
Dimension(L×W×H): 6890*2500*2815mm

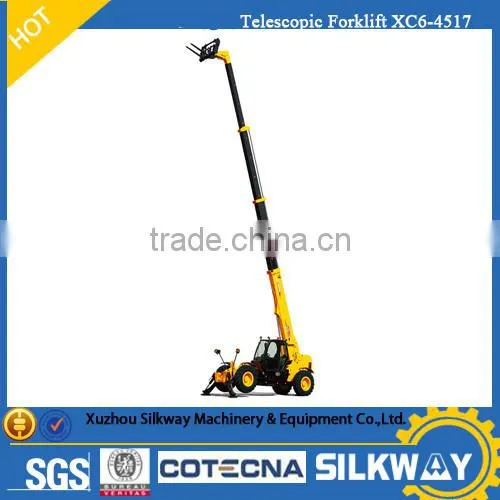

Features of XC6-4517 Telescopic Handler
Telescopic Forklift is a kind of Multi-functional engineering machinery .It can be used for lift and carry, with good stability and efficiency. It has compact frame, flexible operation, sensitive lift, automatic adjustment, high carrying capacity.
Adopting the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.

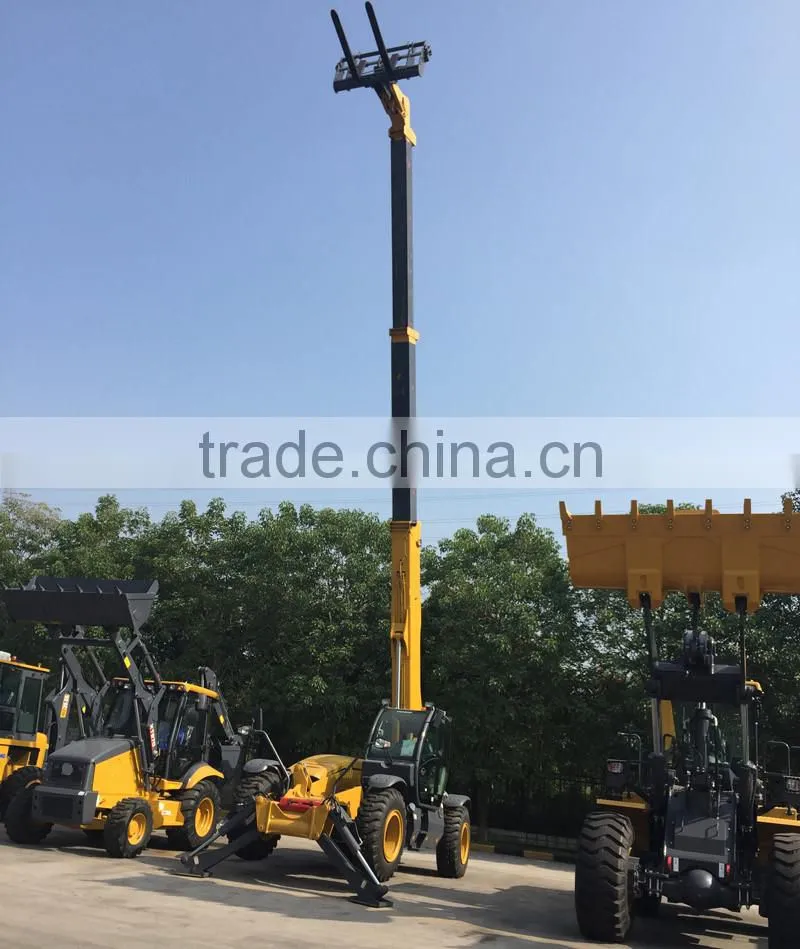

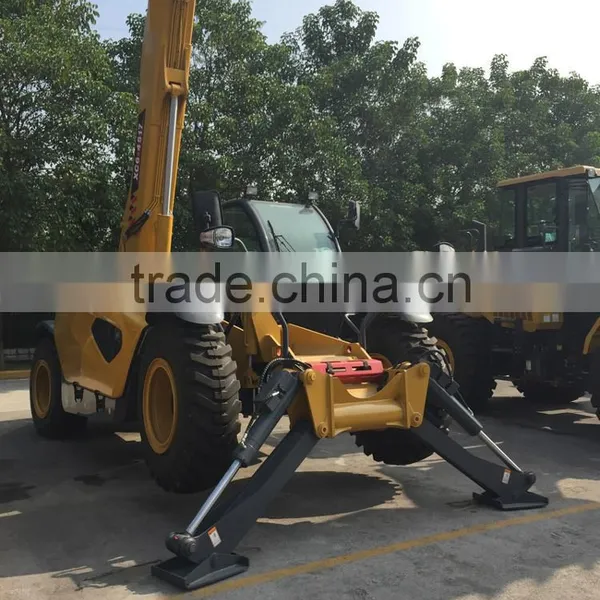

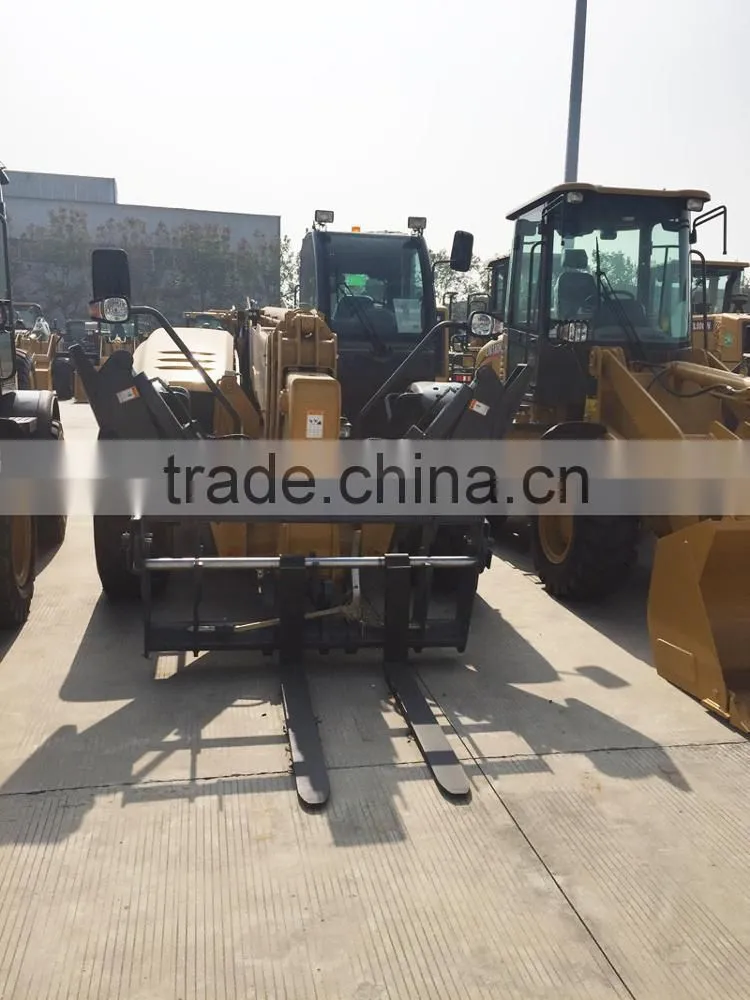

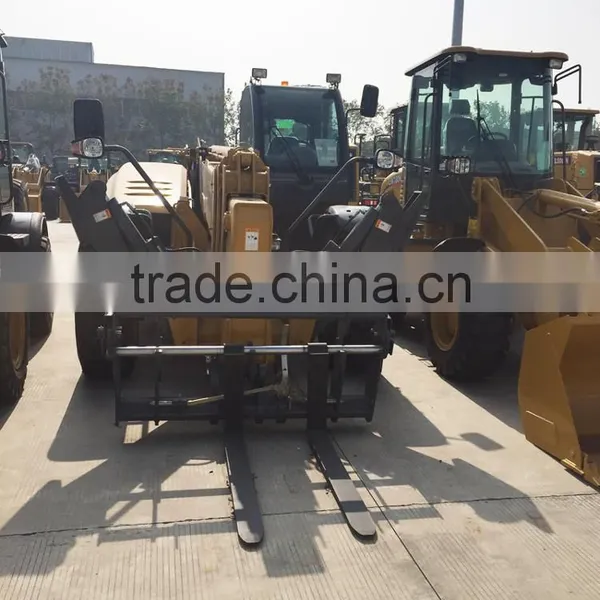

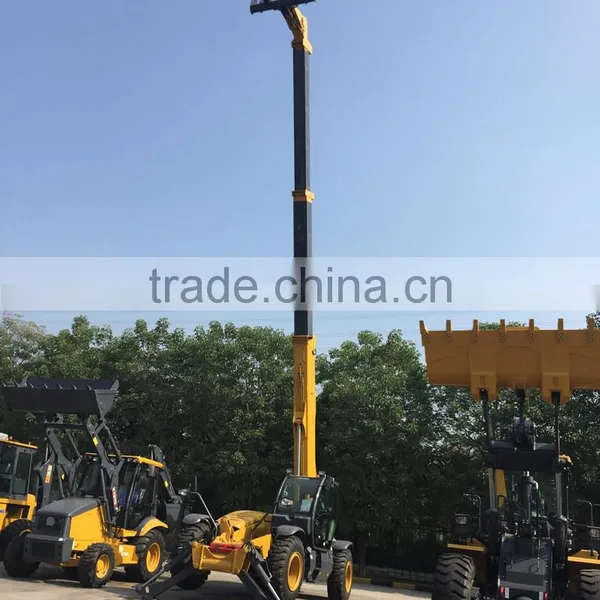

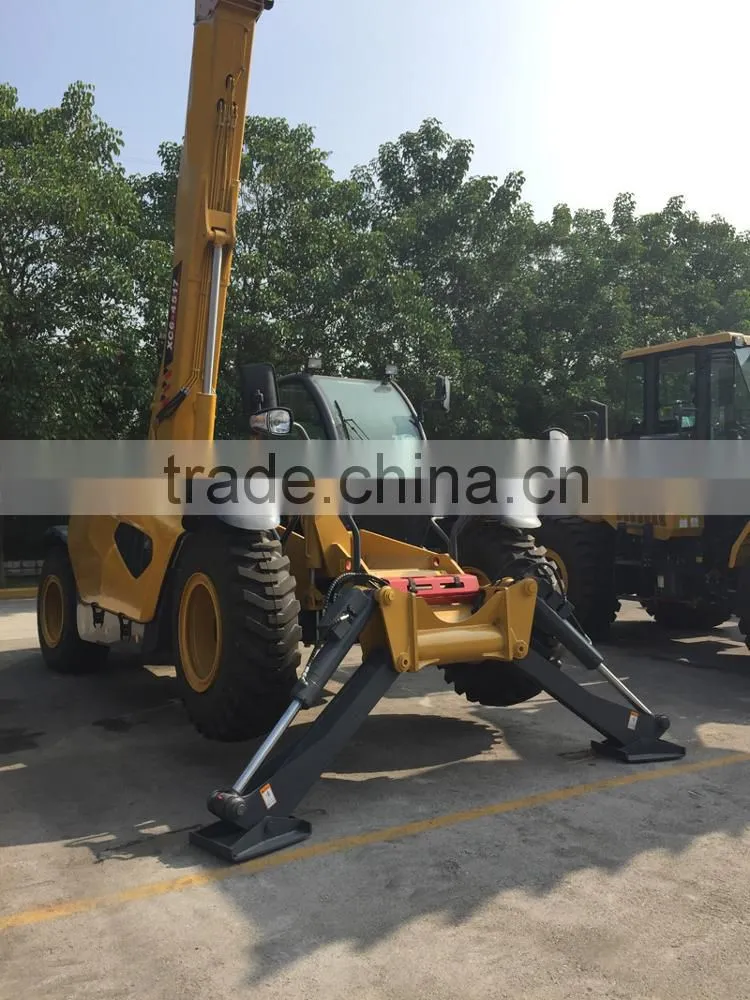

Photos of XC6-4517: 2017 Popular Model XC6-4517/XT680-170/ 4WD Lifting capacity 4.5TON 16.7M Telescopic Handler

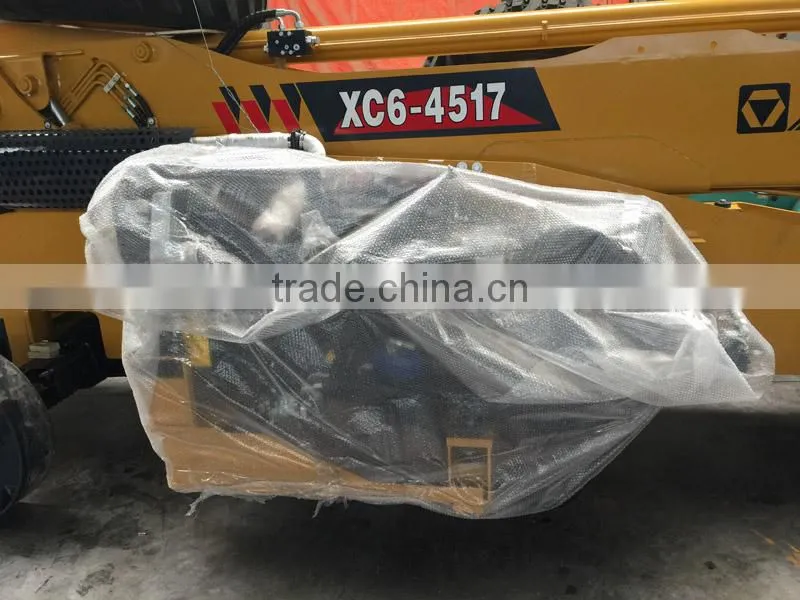

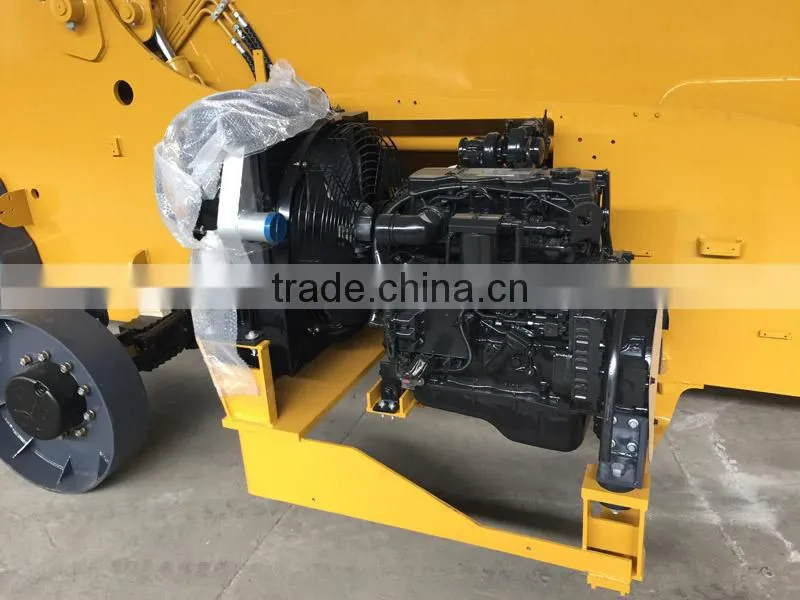

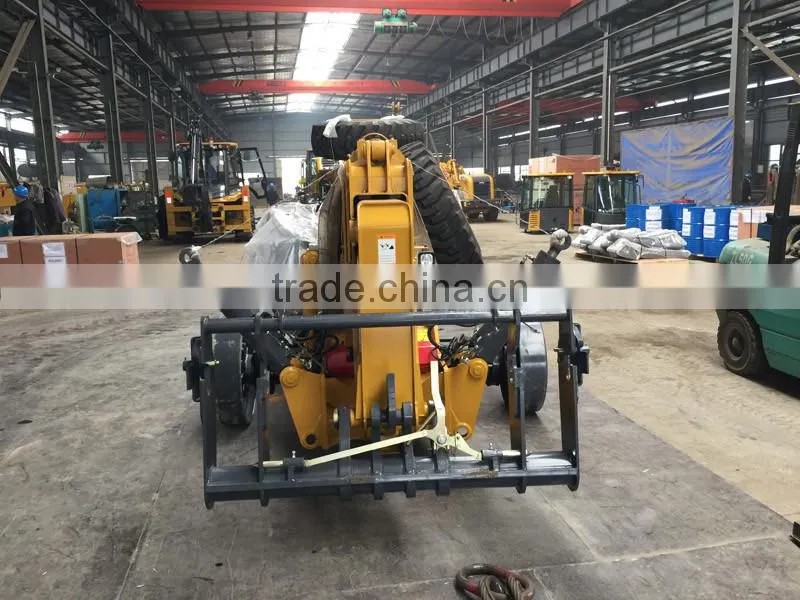

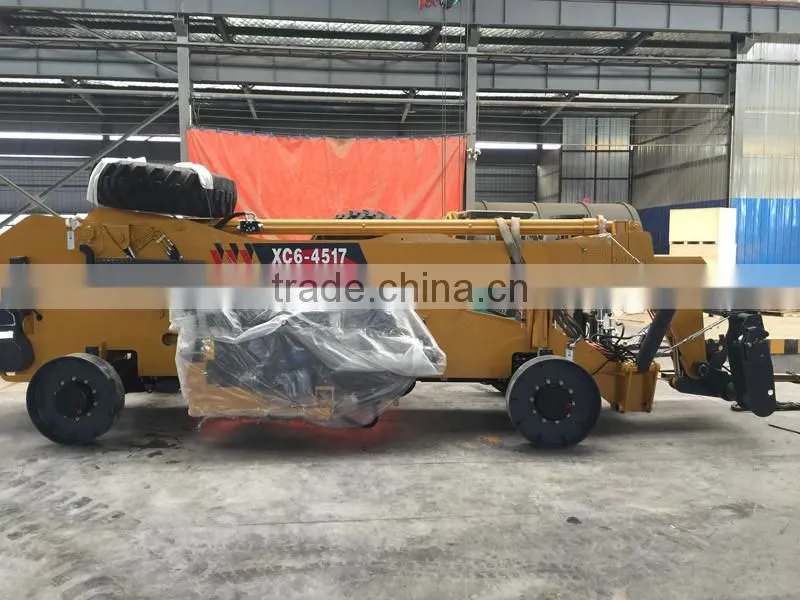

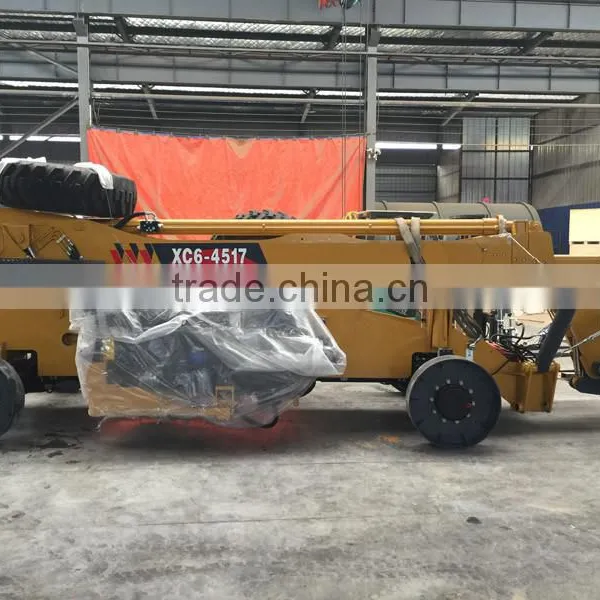

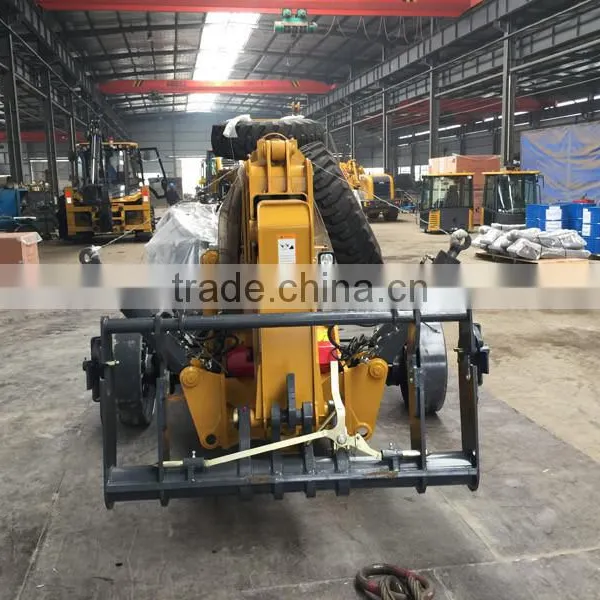

Loading into Container:
Detail Parameters for XC6-4517 telescopic handler Forklift | ||
Machine weight(±5%) |
13500 |
kg |
Engine power rate |
82 |
kw |
Max. payload |
4500 |
kg |
Payload under max. extension |
490 |
kg |
Max. lifting height(±100) |
16700 |
mm |
Max. outreach(±100) |
12600 |
mm |
Load center distance |
600 |
mm |
Swing angle(±1°) |
-4~73 |
(°) |
Fork decline angle Forwards(±1.5) |
90 |
(°) |
Fork decline angle Backwards(±1) |
18 |
(°) |
Max. traction force |
≥73 |
kN |
Grade ability |
≥33 |
(°) |
Max. travel speed(±5%) |
35 |
Km/h |
Turning radius(outer of the tire) |
≤4860 |
mm |
Brake distance |
≤10 |
m |
Total length(±2%) |
6890 |
mm |
Total height(±2%) |
2815 |
mm |
Total weight(±2%) |
2500 |
mm |
Wheelbase(±2%) |
3900 |
mm |
Trade(±2%) |
2060 |
mm |
Fork length |
1200 |
mm |
Our Company Silkway:
WHAT ARE OUR ADVANTAGES ?
1. Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturer /factories.
2. Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours. . Giving reception and orgnize visit of the factory, meeting, technical communication for the customers.
After-sales Service:
1. Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
2. Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
Any questions, pls feel free to contact us!
