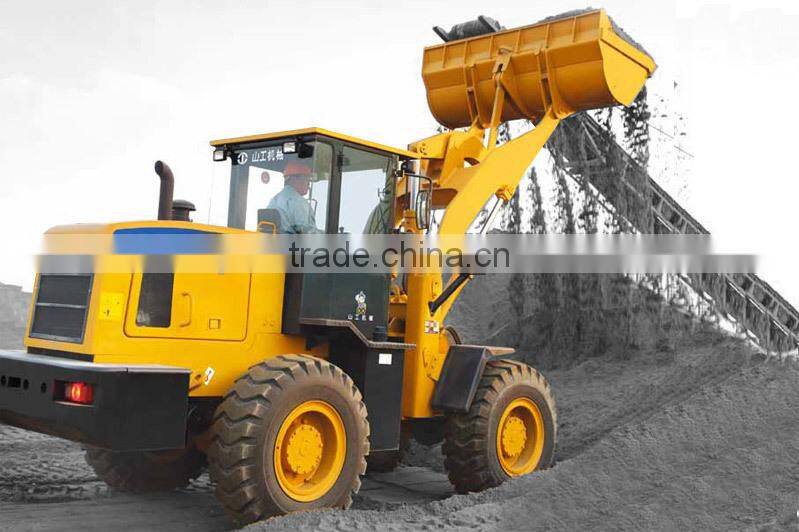

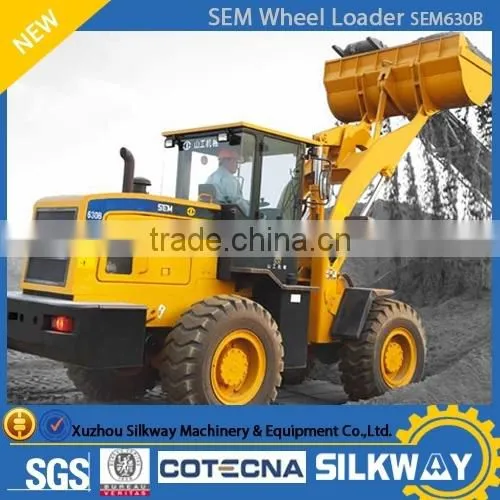

CHINA Hot Sale 3Ton Wheel Loader SEM630B ready in stock
Standard model main specifications:
Engine: Xichai 6110 92kw
Operating weight: 9700 kg
Bucket capacity: 3 ton / 1.5-2.5 m3
Dimension(L*W*H): 6890*2440*3080mm
Mechanical control
Technical parameters for Wheel Loader SEM630B:
| Model | SEM630B |
|---|---|
| Bucket Capacity | 1.5-2.5 m3 |
| Rated Load Capacity | 3000 kg |
| Operating Weight | 9700 kg |
| Max. Drawbar Pull | 97 kN |
| Max. Breakout Force | 127 kN |
| Max. Gradeability | 26° |
| Min. Turning Radius (Outside of Bucket) | 5962 mm |
| Min. Turning Radius (Outer Tire) | 5096 mm |
| Cycle Time (Bucket lifting, tipping and lowering) | 9.3 s |
| Dump Height | 3100mm |
| Dump Reach | 1006mm |
| Wheelbase | 2630 mm |
| Standard Dimensions (L×W×H) (mm) | 6890×2440×3080 |
| Engine | |
| Model | Xichai 6110 CA6DFID National Stage II emission standards |
| Type | In-line, vertical, water cooling, 4-stroke |
| Rated Power | 92 kW |
| Max. Torque | 520 Nm |
| Drive System | |
| Torque Converter | YJ320B |
| Type | Single stage, 3 elements, centripetal type |
| Transmission Type | Fixed axle, constant engaged power shift |
| Speed Gears | 4 forward, 2 reverse gears |
| Max. Speed | 37.6 km/hr |
| Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
| Steering System | |
| Type | Articulated frame, full hydraulic steering |
| Steering Angle (left/right) | 36°±1 |
| Hydraulic System | |
| Hydraulic System Pressure | 16.5 MPa |
| Operation Mode | Mechanical control |
| Brake System | |
| Service Brake | Single circuit, air-over-oil 4-wheel caliper disc brake |
| Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
| Tires | |
| Size | 17.5-25 |
| Volume | |
| Fuel Tank | 137 L |
| Hydraulic System | 90 L |
| Optional Devices | |
| Deutz WP6G125E22National Stage II emission standards | Quick coupler and tools |
| Coal bucket and long reach arm | Sand bucket |
| Rock bucket | Long reach arm |
| Grass fork | Log grab |
| Air conditioner | Heater |

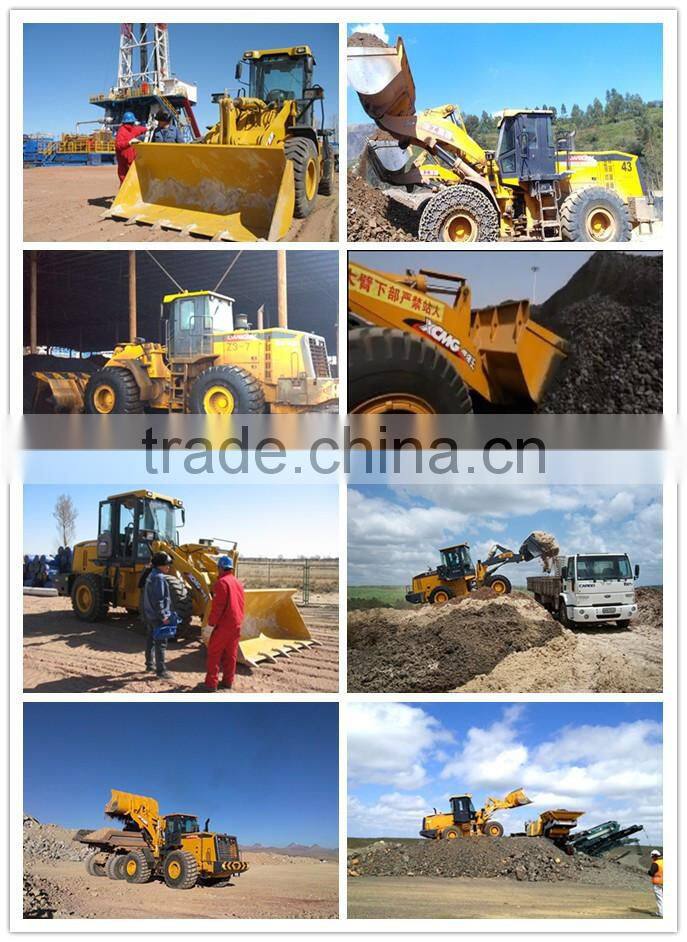

Our Loaders Working in Project Site...
ALL Spare Parts are Available, ready in stock.. can be delivered within few days!
Sales Service
u Being available online 24 hours a day.
u Responding to your e-mails at the first time.
u Providing the best choice according to the customer’s needs.
u Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service
u Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
01 WHAT ARE OUR ADVANTAGES COMPARED WITH ?
u Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedbacks from clients, our price is more competitive than manufacturer /factories.
u Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
02 WHICH TERMS OF PAYMENT CAN WE ACCEPT ?
u On T/T term, 30% down payment should be paid in advance, and 70% balance should be paid within 5 days before departure goods from factory.
u On L/C term, a 100% irrevocable L/C at sight by our acceptable bank.
03 HOW LONG WILL OUR PRICE BE VALID ?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remain s stable through the year. We only adjust our price based on two situations:
u The rate of USD /RMB varies significantly according to the international currency exchange rates.
u Manufacturers/factories adjusted to the machine price, because of the increasing of labor cost and raw material cost.
04 WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship construction machinery by various transportation tools.
u For 90% of our shipment, we will go by sea, for other machinery, like truck crane, big bulldozer and road roller, either by RO/RO and Bulk shipment.
u For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, etc., we can ship construction machinery by road or railway.
u For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
05 HOW LONG IS OUR GUARANTEE TIME?
u 2000 working hours or one year from the date of B/L, which comes first.
u Engineers available to service machinery overseas.
Silkway is very famous construction machinery exporter in China and have exported products to more than 60 countries. Our main products are as follows: XCMG wheel loader, road roller, motor grader, excavator, truck crane and SHANTUI bulldozer etc. We always guarantee official products, quick after-sale service, and the most competitive price.
Please contact us without any hesitation if u need any help!
