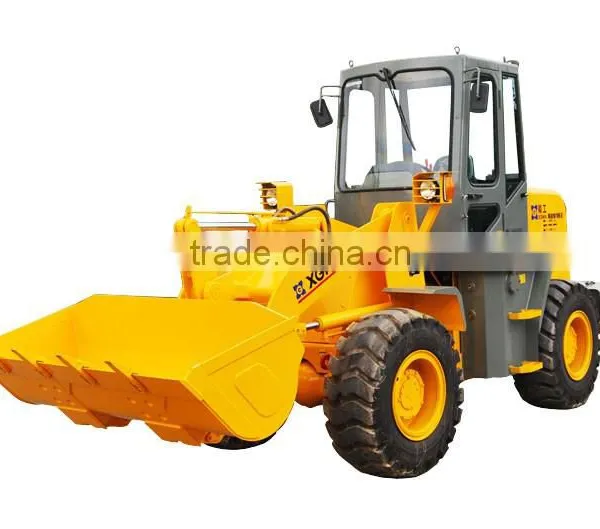

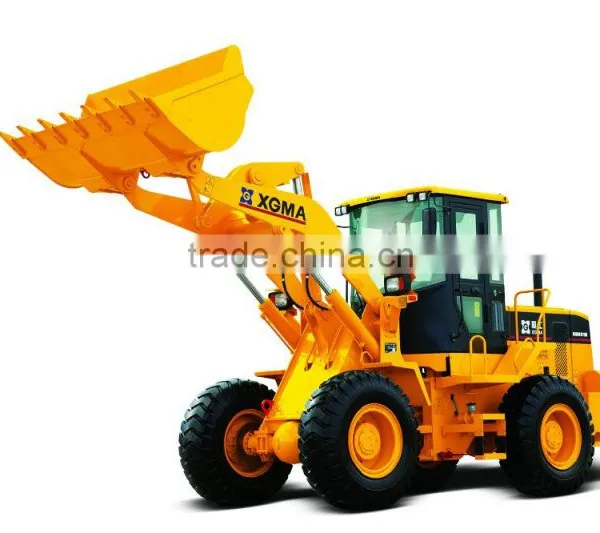

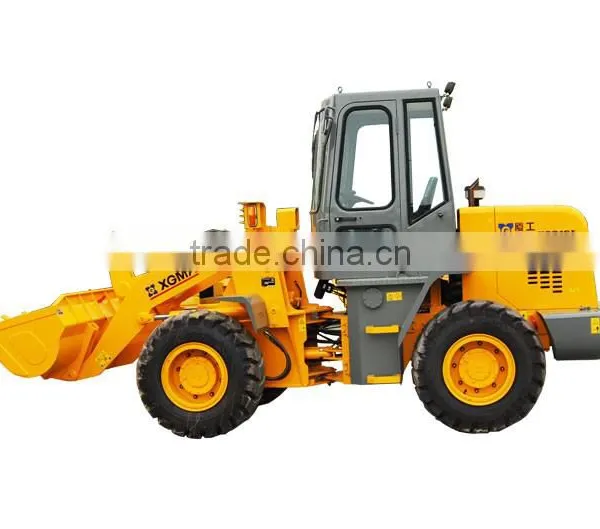

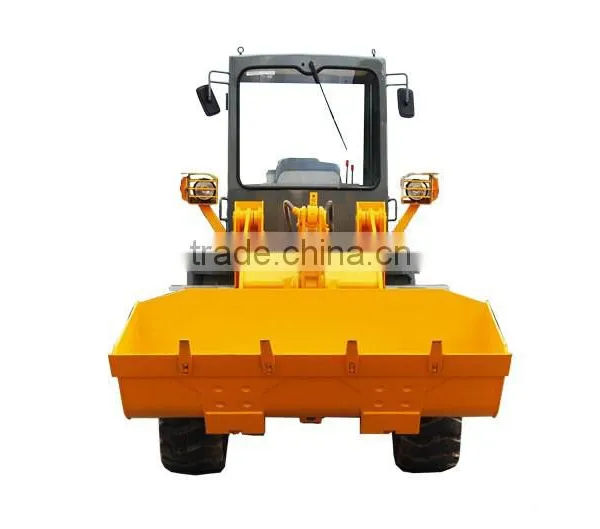

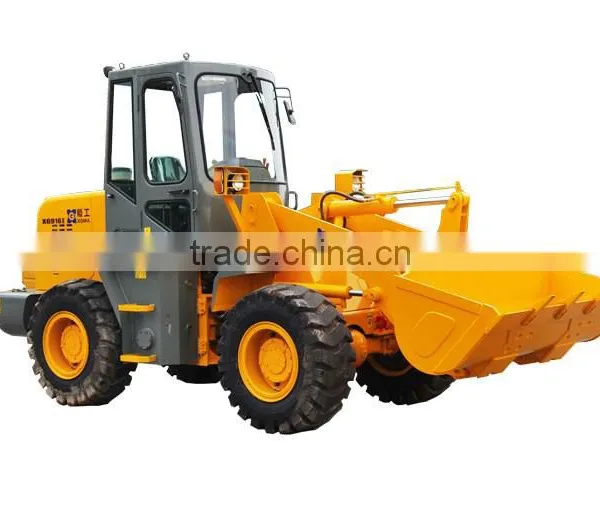

Hot Selling 3 Ton`XGMA Loader XG931H With Best XGMA Wheel Loader Price
US$ 1 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XGMA
Model Number:
XG931H
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Version for 3t Load Superior Mini Payloader Champion Model SL18C With High QualityUS$ 30,000 - 40,000MOQ: 1 Set -
Changlin Most Popular 3t Wheel Loader 933 With Best PriceUS$ 1 - 100,000MOQ: 1 Unit
-
China Most Popular 5t Wheel Loader for Sale With Best PriceUS$ 1 - 10,000MOQ: 1 Unit
-
China Brand Changlin Most Popular 3t Wheel Loader 933 With Best PriceUS$ 1 - 40,000MOQ: 1 Unit
-
Best Selling China Most Popular 3 Ton Wheel Loader Changlin 937HUS$ 1 - 50,000MOQ: 1 Unit
Condition
New
Brand Name
XGMA
Model Number
XG931H
Place of Origin
Fujian, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
6970x3330x2245mm
Rated Load
3000kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Overseas service center available
Specifications
| Model | XG931H | XG932H | XG935H | |
| Overall length(mm) | 6970 | 6970 | 6970 | |
| Overall height(mm) | 3330 | 3330 | 3330 | |
| Overall width(mm) | 2245 | 2245 | 2245 | |
| Wheel base(mm) | 2750 | 2750 | 2750 | |
| Ground clearance(mm) | 358 | 356 | 356 | |
| Tread(mm) | 1800 | 1800 | 1800 | |
| Bucket Width (mm) | 2420 | 2420 | 2420 | |
| Turn radius(mm) | 5280 | 5280 | 5280 | |
| Min.Turn radius outside of bucket (mm) | 5860 | 5860 | 5860 | |
| 3930 | 3930 | 3930 | ||
| Max. Dumping Height(mm) | 3060 | 3060 | 3060 | |
| Dumping Reach(mm) | 1020 | 1020 | 1020 | |
| Digging depth(mm) | 100 | 100 | 100 | |
| 50 | 50 | 50 | ||
| Engine model | YC6J125Z-T21 | YC6J125Z-T20 | YC6J125Z-T20/ 6BTAA5.9-C130 |
|
| Rated power (kw) | 92 | 92 | 92/97 | |
| Fuel comsumption per hour(g/kw.h ) | 235 | 225 | 225/237 | |
| Rated speed (r/min) | 2300 | 2200 | 2200 | |
| Max torque(N.m) | 500 | 500 | 500/580 | |
| Operating Weight (Tonnes) | 10 | 10.8 | 10.8 | |
| Rated Load(Tonnes) | 3 | 3.2 | 3.2 | |
| Bucket capacity (m³) | 1.7 | 1.8 | 1.8 | |
| Lifting time/Lifting, dumping and lowering(s) | 5.7/10.5 | 6/10.4 | 6/10.4s | |
| Max Breakout force(KN) | 100 | 100 | 100 | |
| Max.drawing force (KN) | 87.5 | 103 | 108 | |
| Max. turning angle(°) | ±35° | ±35° | ±35° | |
| Climbing ability(°) | ≤ 30 ° | ≤ 30 ° | ≤ 30 ° | |
| Fuel tank(L) | 178 | 135 | 135 | |
| Hydraulic tank(L) | 150 | 160 | 160 | |
| Working pressure of steering hydraulic system(MPa) | 13 | 13 | 13 | |
| Working pressure of load hydraulic system(MPa) | 16 | 16 | 16 | |
| Travel speeds(km/h) | FORWARD 1ST | 0~7 | 0~12 | 0~12 |
| FORWARD 2ND | 0~13 | 0~40 | 0~40 | |
| FORWARD 3RD | 0~25 | |||
| FORWARD 4TH | 0~41 | |||
| REVERSE 1ST | 0~9 | 0~16 | 0~16 | |
| REVERSE 2ND | 0~30 | |||
| Fuel type | diesel | diesel | diesel | |
| Gear Box | shangtui | XG | XG | |
| Axle | XG/ | XG | ||
| Implement pump | 206 | 132 | 132 | |
| Distibuting valve | DF25-2C | DF25-2C | YGDF-25-00-WX | |
| Steering Hydraulic system | BZZ5-500 | BZZ5-500 | BBZ5-500 | |
| Steering pump | 90 | 90 | ||
| Tyre size | 17.5-25-12PR | 17.5-25-12PR | 17.5-25-12PR | |
| Tyre Make | ||||
| Air Conditioning/Anti-mist when idleing | yes | yes | yes | |
| Heating | yes | yes | yes | |
| Radio/Cassette | yes | yes | yes | |
| Bucket and arm raiseing (limit height) Device | no | no | yes | |
| Hydraulic Operation system | no/yes | yes | yes | |
| Seat Buckle | yes | yes | yes | |
| Head lamp | yes | yes | yes | |
| Reversing Alarm (Back vehicle) | yes | yes | yes | |
