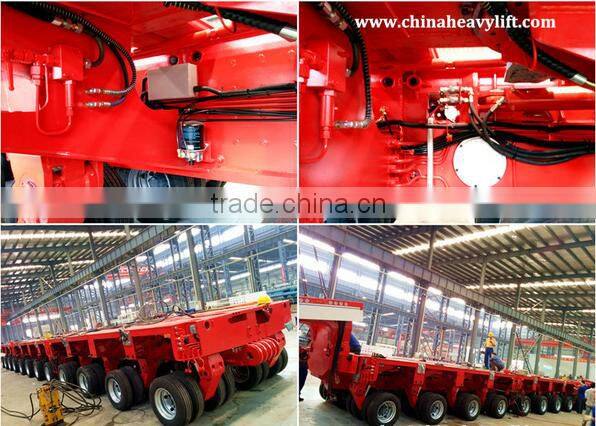

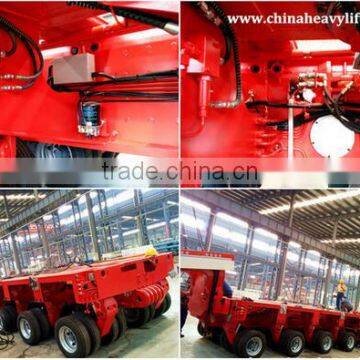

CIMC Multi Axles Platform Lowbed Modular Trailer With Hydraulic System

Name: CIMC Multi Axles Platform Lowbed Modular Trailer With Hydraulic System
Brand: CIMC
SKU: 140804246
Availability: InStock

US$ 20,000 - 100,000 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ANY PORT AROUND THE WORLD

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 12.4*2.5*1.55 METERS

OEM No. 73847328472

Max Payload 45 - 100 Tons

Place of Origin Shandong, China

Brand Name CIMC

Model Number CIMC

Product Description

cimc multi axles platform lowbed modular trailer with hydraulic system

Product Specifications
Parameter
Outside Dimensions (LWH)	Optional ,according to the NO. of the axles
features	Hydraulic adjustable and all wheel drive
steering	Steering on every wheel
Rated Load	100-3000 ton
Tare Weight	optional
Running Gear
Tires	specification		8.25-15, 7.50-15 or small vacuum tyre with no tube
	No. of tires		optional
	Spare tire carriers		optional
Axles	Brand		FUWA (BPW optional)
	No. of axles:		More than 6
	Axle-load		24000kg
Wheel rim	24 units of 7.50-20 rim or 8.00
Suspension	rigid suspension
Brakes	brand		TKL brand
	Brake chamber		double air chamber
	System		Dual line braking system /ABS
Under Frame
Main Beam	material	I beam ,Q345B, automatic submerged arc welded
	specification	Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam material	Q235B
Side beam	Channel steel
Plate form	Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing gear	28Ton
Accessory	One tooling box with a set of standard trailer tool
Electrical
Voltage	24V
Receptacle	7 ways (7 wire harness)
Lights	Front corner marker lamp :red ;reflector lamp :white
	Side marker :orange
	Rear lamp :red; rear reflector :white; turn single lamp :orange
Other

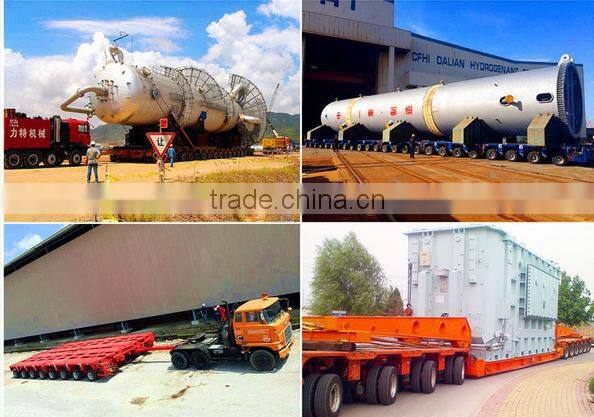

Usage	This trailer is available for transporting large cargo of 100-3000 tons which cannot be disassembled in the industries of electricity, mines, chemical industry, building as well as bridge construction.
