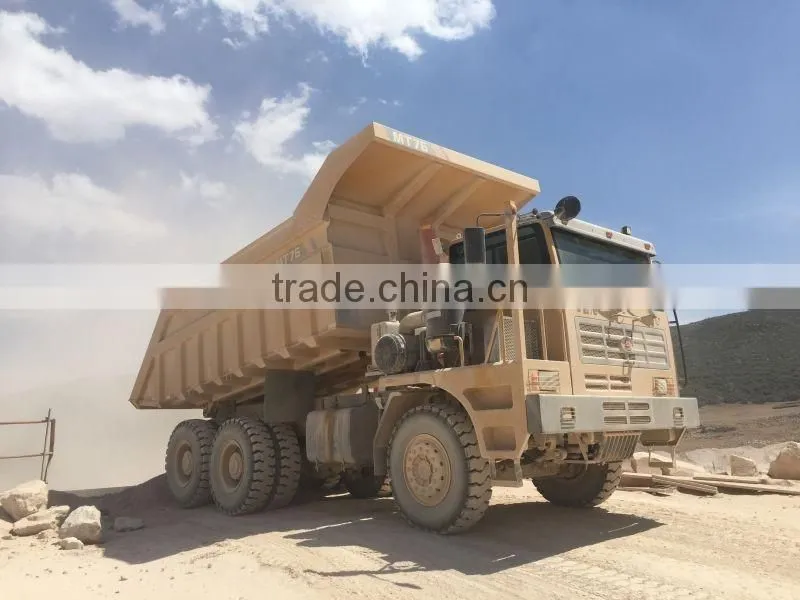

Mountain Work 50Ton Loading Mining Truck LGMG Brand MT76
High Quality LGMG Mining Dump Truck for Sale MT76 in Africa, 50Ton capacity!
Features

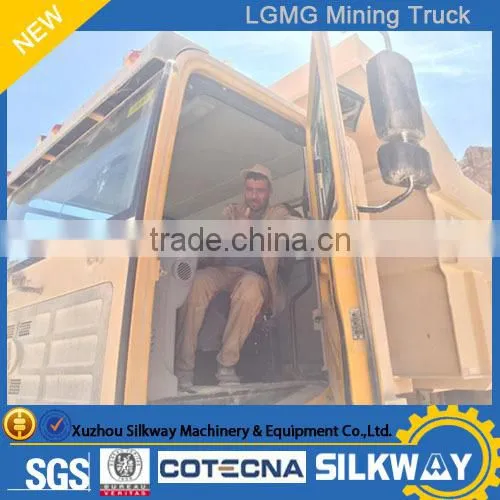

1. The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity, good shock and twisting resistance. 2. The transmission, specially developed for mining operations, is featured large torque output, and is more adaptive to harsh working conditions. 3. By applying dual push rods, rubber shock blocks and adding leaf spring plates, the front suspension is greatly strengthened. 4. Box-section stiffeners wedged to form a frame structure for the body, and abrasion resistant steel applied, better impact and abrasion resistance. 5. Driver’s cab strengthened by roll-over protection structure, which is derived from excavator technique. The cab is optimized from all-around way, making it safe and comfortable.

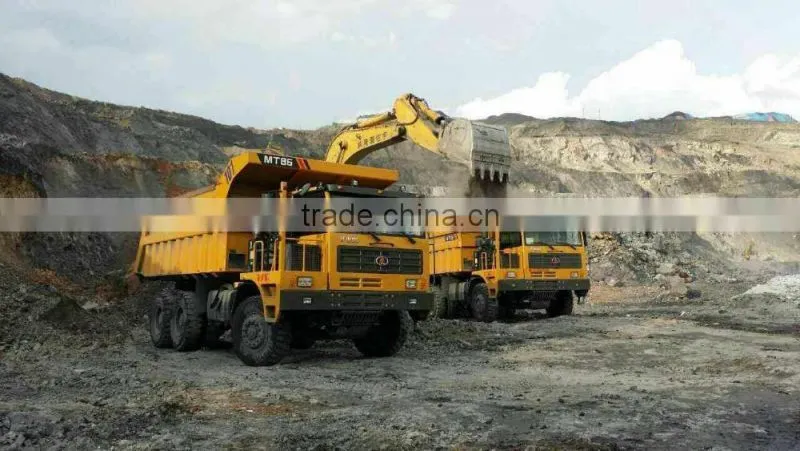

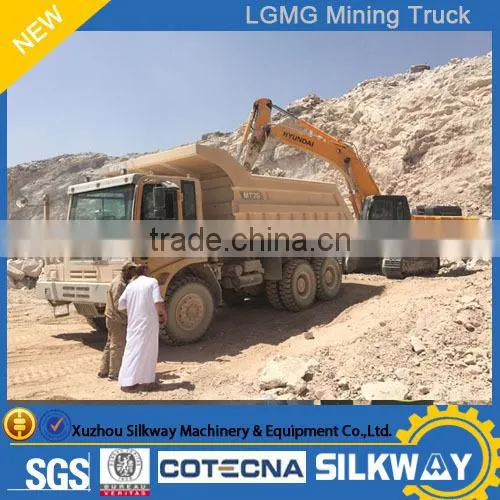

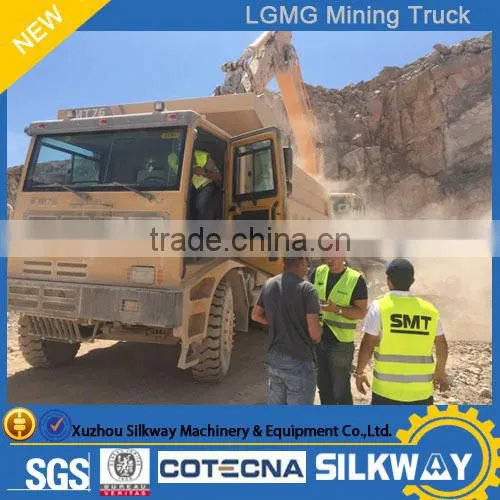

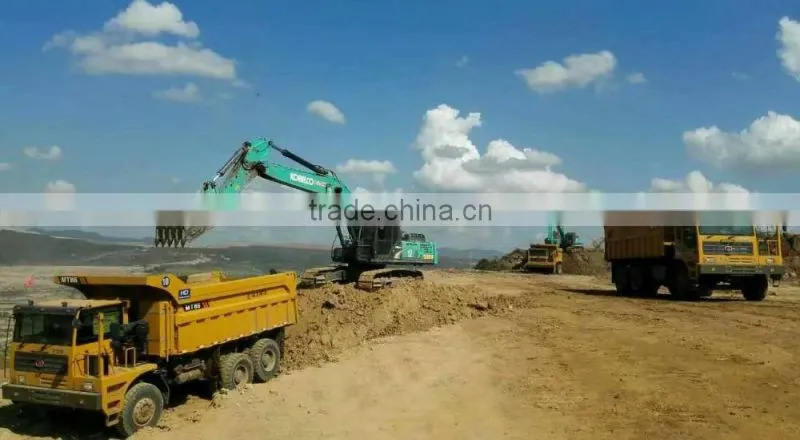

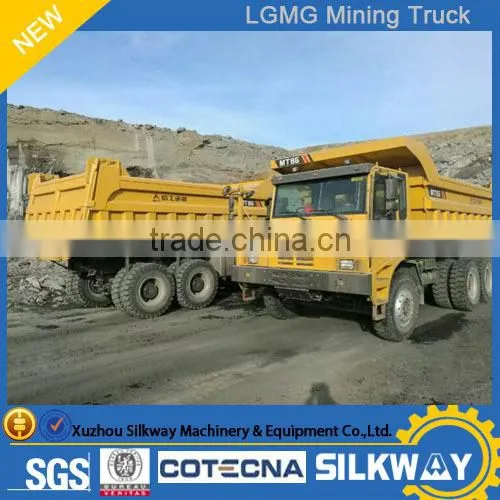

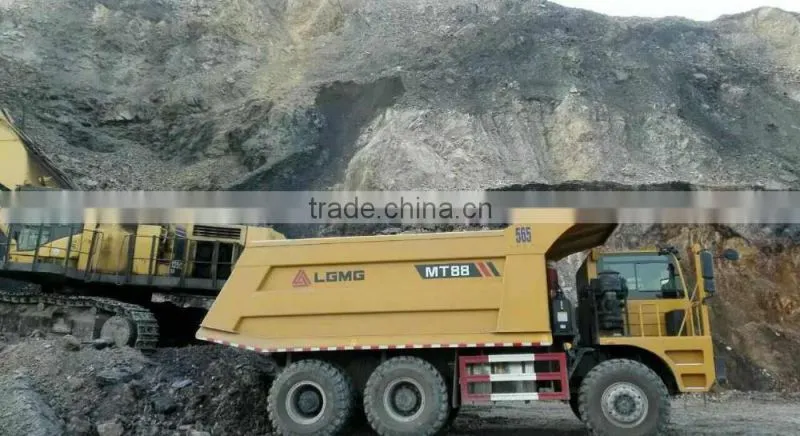

Truck in mining working site !

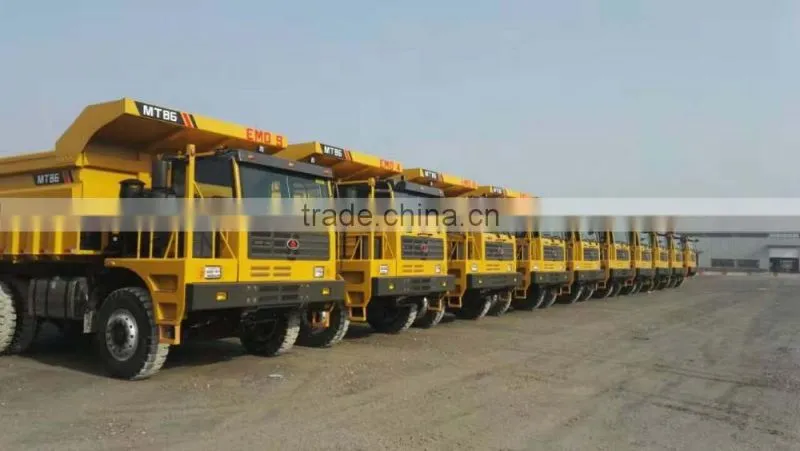

Ready fior delivery!
1. Specifications
Item |
Data |
Item |
Data |
Max.Design Weight(kg) |
76000 |
Overall Dimension(LxWxH)(mm) |
9050x3450x3960 |
Unladen/Laden Max.Speed(km/h) |
48/39 |
Unladen/Laden Max.Gradeability(°) |
37 |
Struck Capacity(m³) |
28 |
steel thickness(bottom+side+tailgate) |
18+12+14 mm |
Curb Weight(kg) |
26000 |
Min.Turning Diameter(m) |
≤22 |
Payload(kg) |
50000 |
|
|
2. Main Data
Item |
Data |
Item |
Data |
Wheel Tread(mm) |
Front Axle:2530;Middle-Rear Axle:2396 |
Wheelbase(mm) |
3800(Front-Middle)1500(Middle-Rear) |
Approaching Angle(°) |
30 |
Departure Angle(°) |
38 |
Ground Clearance(mm) |
≥350 |
No.of Axles |
3 |
3. Engine
Item |
Data |
Item |
Data |
Make |
Weichai WD12.420 |
Number of Cylinder |
6 |
Type |
Line,Direct Injection, Water-cooling, Inter-cooling, Electric-controlled |
Bore/Stroke(mm) |
126/150 |
Rated Power(kW) |
309 |
Min. Fuel Consumption(g/kW.h) |
196 |
Rated Speed(r/min) |
2200 |
Max. Torque(N.m) |
1750 |
Emission load (ml) |
11596 |
Emission Standard |
StageⅡGB17691-2005 |
We Have Original Spare Parts for Sale...
1 WHAT ARE OUR ADVANTAGES COMPARED WITH ?
u Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedbacks from clients, our price is more competitive than manufacturer /factories.
u Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
02 WHICH TERMS OF PAYMENT CAN WE ACCEPT ?
u On T/T term, 30% down payment should be paid in advance, and 70% balance should be paid within 5 days before departure goods from factory.
u On L/C term, a 100% irrevocable L/C at sight by our acceptable bank.
03 HOW LONG WILL OUR PRICE BE VALID ?
u We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remain s stable through the year. We only adjust our price based on two situations:
u The rate of USD /RMB varies significantly according to the international currency exchange rates.
Manufacturers/factories adjusted to the machine price, because of the increasing of labor cost and raw material cost.
04 WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
u We can ship construction machinery by various transportation tools.
For 90% of our shipment, we will go by sea, for other machinery, like truck crane, big bulldozer and road roller, either by RO/RO and Bulk shipment.
u For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, etc., we can ship construction machinery by road or railway.
u For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
05 HOW LONG IS OUR GUARANTEE TIME?
u 2000 working hours or one year from the date of B/L, which comes first.
u Engineers available to service machinery overseas.
Sales Service
u Being available online 24 hours a day.
u Responding to your e-mails at the first time.
u Providing the best choice according to the customer’s needs.
u Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service
u Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
Please Contact Us for more information you need...
