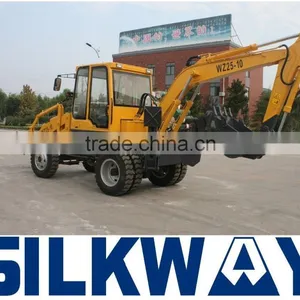

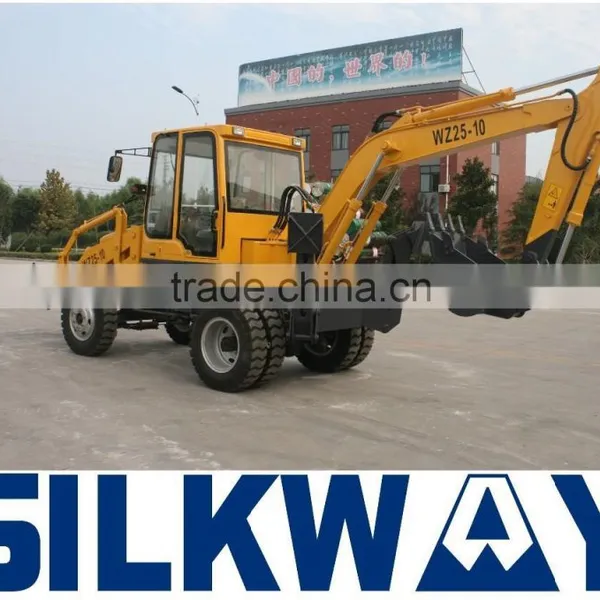

China Small Backhoe Loader WZL25-10A for Sale

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

WZL25-10A

Type:

Backhoe Loader

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number WZL25-10A

Type Backhoe Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8570*2420*2820mm

Certification CIQ,BV,SGS,ISO

Warranty 1 year or 2000 working hours

After-sales Service Provided Engineers available to service machinery overseas

Company Information

Product Description

Details for CHINA Small Backhoe Loader WZL25-10A :

Shipping by Container to Port!

Specifications for Backhoe Loader Samll Backhoe WZL25-10A:

WZL25-10 A backhoe loader
Total weight (kg)		6100
Traveling maximum length (mm)		8570
Traveling maximum width (mm)		2420
Traveling maximum height (mm)		2820
Wheel base (mm)		2750
Front tread (mm)		1760
Rear tread (mm)		1680
Minimum ground clearance (mm)		255
Digging Bucket capacity (m3)		0.25
Travel Speed (km/h)		35
Maximum digging radius (mm)		6080
Maximum digging depth (mm)		3400
Maximum digging height (mm)		6450
Maximum unloading height (mm)		4750
Maximum track force (kn)		48
Loading Bucket capacity ( m3)		0.75
Maximum loading height (mm)		4230
Engine Information	Engine Model	YTO 4108
	Type	Four stroke Turbo charge Water cooling
	Rated Power	74.9 kw
	Rated Speed	2200 r/min
Hydraulic System	Hydraulic Pump Displacement	80 mL/r
	Rated Working Pressure	20 Mpa
	Maximum Working Pressure	25 Mpa
