Product Details
| Parts | Trailer Wheels | OEM No. | 001 | |
| Max Payload | 10T | Size | 4000*2600*2500mm | |
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | LZ-8T |
Product Description

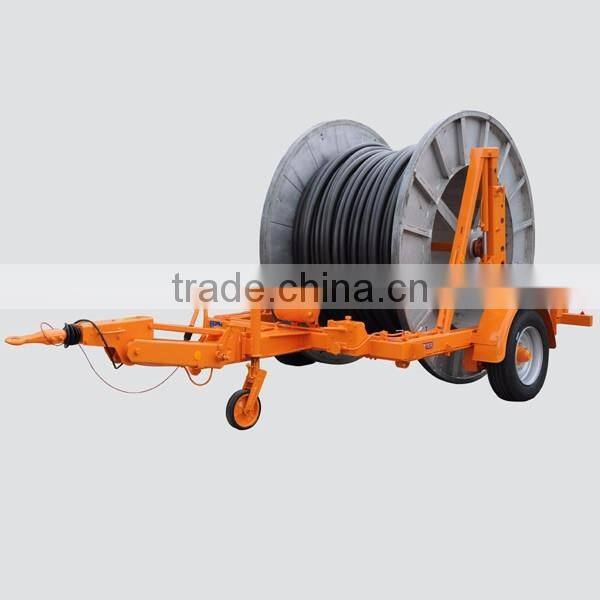

3Ton Cable Reel Carrier Cable Reel Trailer
Introduction
This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.
Application
cable drum trailer used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. Thetraction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.
Technical Data
Model |
|
| Max coil diameter | Wide | length | Wide | High |
(T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
LZ-3T | 3T | 900 | 2300 | 1250 | 3800 | 2300 | 2200 |
LZ -5T | 5T | 1500 | 2800 | 1450 | 4000 | 2600 | 2500 |
LZ -8T | 8T | 2300 | 3300 | 1750 | 4300 | 3200 | 2700 |
LZ -10T | 10T | 2800 | 3500 | 1850 | 4300 | 3400 | 2800 |
Air Brake System

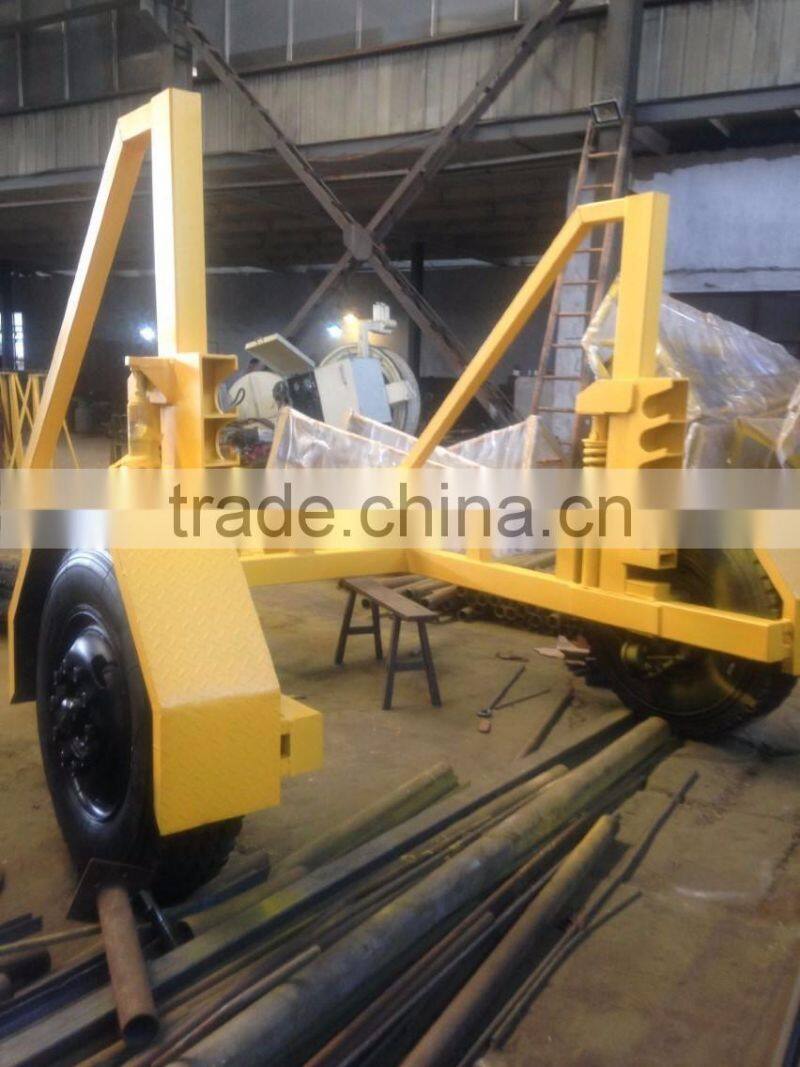

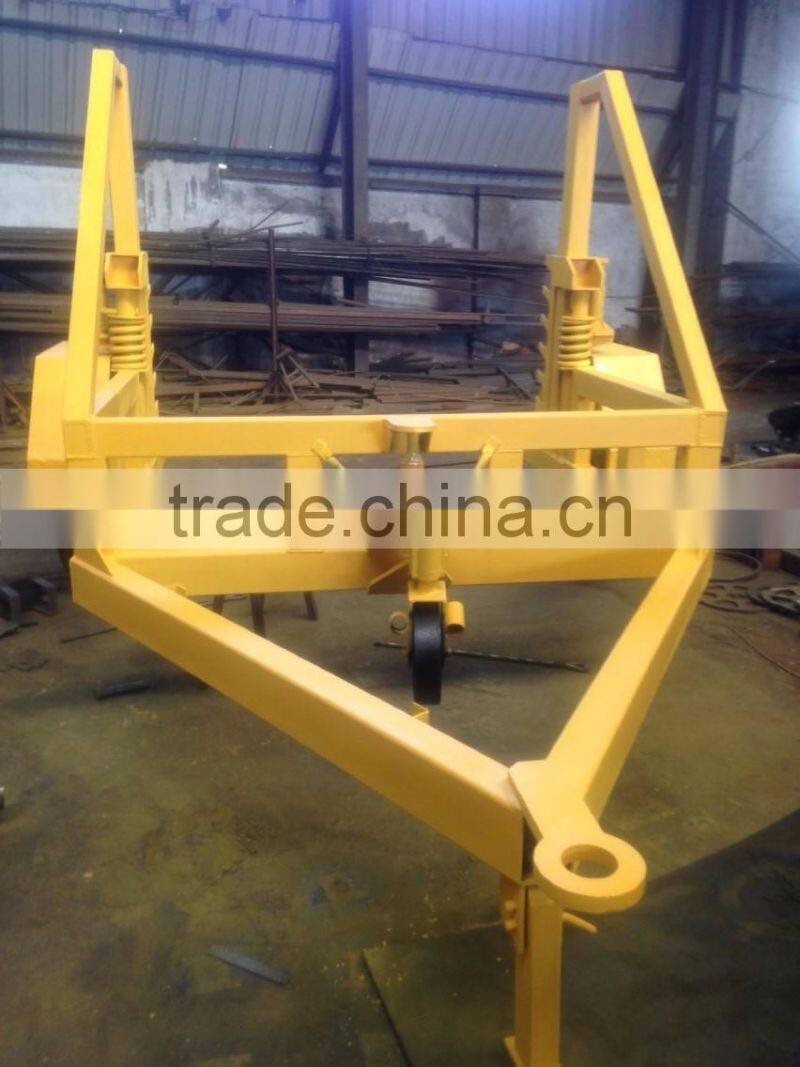

Practical Application
