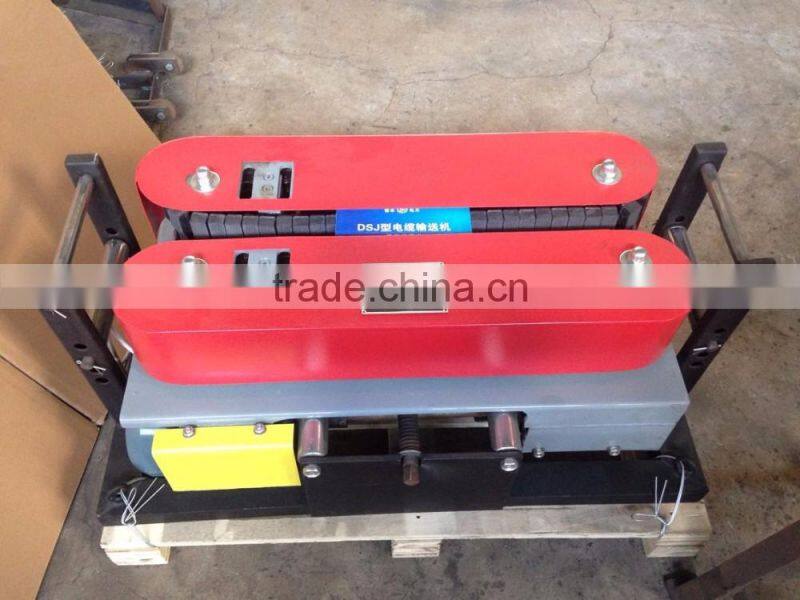

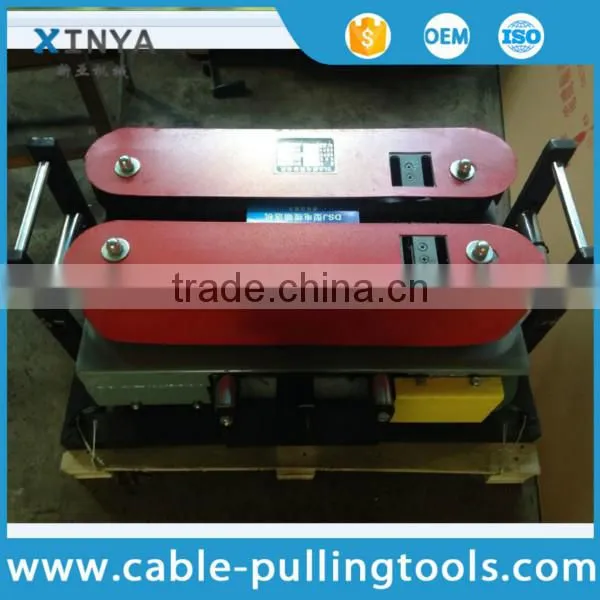

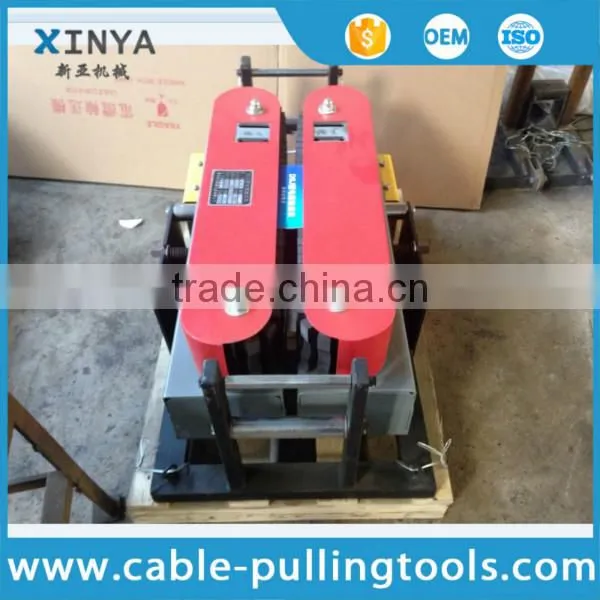

Electrical Cable Pulling Machine Model DSJ-180 for Underground Cable Hauling
US$ 2,000 - 3,000
MOQ: 2 Sets
Key Specifications
Get Latest Price
Type:
Flat Belt
Material:
Steel
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cable Conveyor Engine Driven Petrol Powered Cable PusherUS$ 1,680 - 1,900MOQ: 1 Set -
Supply Electric Cable Laying Machine Cable ConveyorUS$ 2,000 - 3,000MOQ: 2 Sets
-
DSJ Cable Hauling Machine With Electric Power SourceUS$ 2,000 - 3,000MOQ: 2 Sets
-
Motorized Steel Cable Belt ConveyorNegotiableMOQ: 2 Sets
-
10KN Push Force Cable Pusher Machine With Fast SpeedNegotiableMOQ: 2 Sets
Type
Flat Belt
Material
Steel
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
DSJ
Electrical Cable Pulling Machine Model DSJ-180 for Underground Cable Hauling
Application
DSJ Cable Hauling Machine With Electric Power Source we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
Product Show

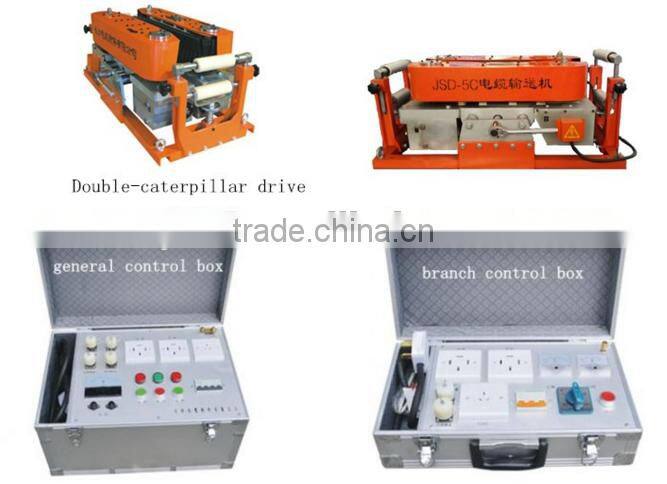

Double-caterpillar drive, satisfy elastic clamping cable requirements.
The pulling force is on the cylindrical surface of cable outer sheath,
which helps to protect the cable insulation layer. The stressed area of cable is large and even.
Fitted with high-low adjustable roll, convenient for laying.
Fitted with double power switch and can convey the cable by double direction.
If something wrong with the cable itself, the machine can take back the cable by opposite direction during laying.
Complete electrical control system consist of control box,branch control box, power wire, control wire and cable hauling machine.
And this will ensure every cable hauling machine work synchronously.
