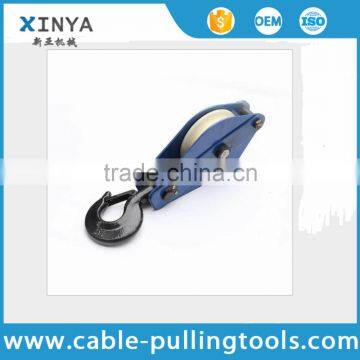

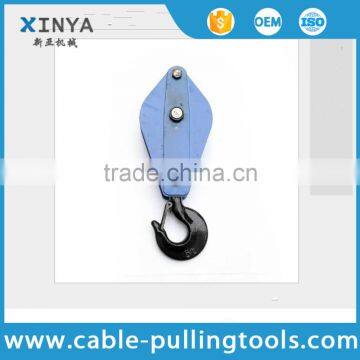

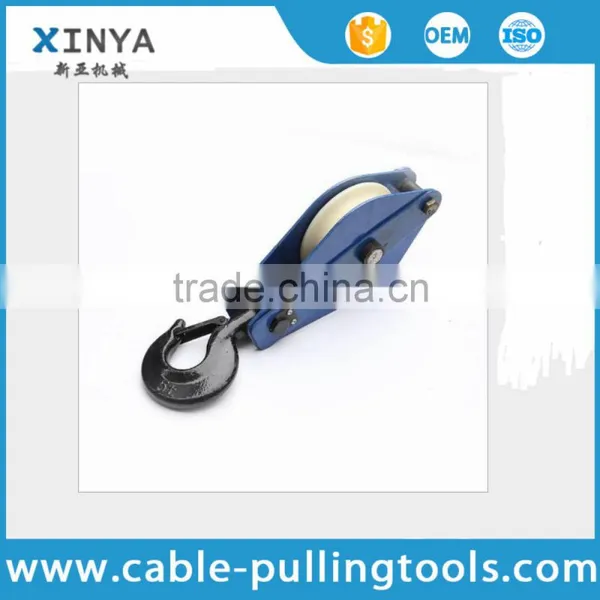

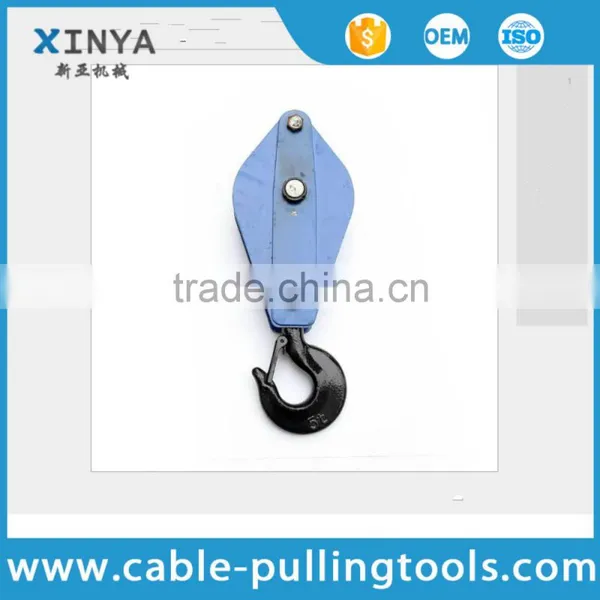

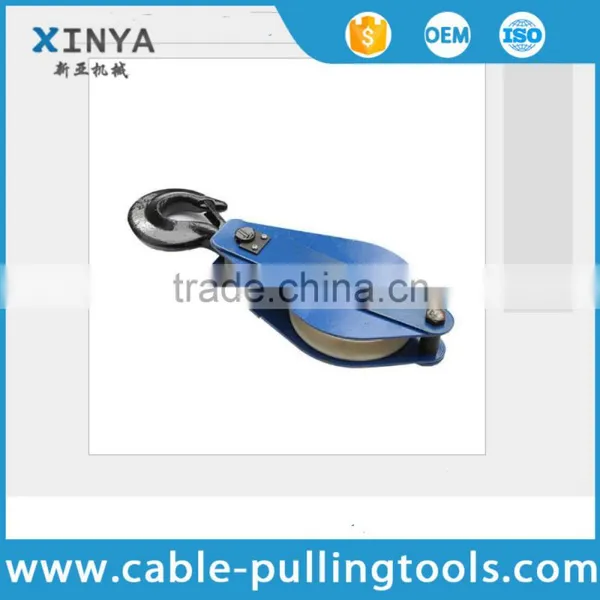

3 Ton Nylon Single Sheave Hoisting Tackle Blocks Snatch Block Hook Type
The nylon sheave tackle blocks are used for lifting and sagging operation in transmission line construction. It is light and with heavy strength.
Features:
With Aluminum Alloy side plates, MC Nylon sheaves, the block is lighter.
Data Sheet
| Item No. | Model | No. of sheaves | Fitting type | Rated Load (KN) | Outer Diameter x Width (mm) | Weight (kg) |
| 11101 | QH1GN-1 | 1 | Hook fitting | 10 | Φ100 x 31 | 1.8 |
| 11102 | QH2GN-1 | 2 | 10 | Φ80 x 27 | 1.8 | |
| 11103 | QH3GN-1 | 3 | 10 | Φ80 x 27 | 2.1 | |
| 11111 | QH1GN-2 | 1 | Hook fitting | 20 | Φ120 x 35 | 2.2 |
| 11112 | QH2GN-2 | 2 | 20 | Φ100 x 31 | 2.6 | |
| 11113 | QH3GN-2 | 3 | 20 | Φ100 x 31 | 3.7 | |
| 11121 | QH1GN-3 | 1 | Hook fitting | 30 | Φ142 x 39 | 3.4 |
| 11122 | QH2GN-3 | 2 | 30 | Φ120 x 35 | 4.5 | |
| 11123 | QH3GN-3 | 3 | 30 | Φ100 x 31 | 4.6 | |
| 11131 | QH1GN-5 | 1 | Hook fitting | 50 | Φ166 x 40 | 5.2 |
| 11132 | QH1BN-5 | 1 | Clevis fitting | 50 | Φ166 x 40 | 4 |
| 11133 | QH2HN-5 | 2 | Eye fitting | 50 | Φ142 x 39 | 5.5 |
| 11134 | QH3HN-5 | 3 | Eye fitting | 50 | Φ120 x 35 | 5.1 |
| 11141 | QH1BN-5 | 1 | Clevis fitting | 80 | Φ205 x 50 | 7.2 |
| 11142 | QH2HN-5 | 2 | Eye fitting | 80 | Φ166 x 40 | 8.3 |
| 11143 | QH3HN-8 | 3 | Eye fitting | 80 | Φ142 x 39 | 7.9 |
| 11151 | QH1BN-10 | 1 | Clevis fitting | 100 | Φ246 x 60 | 11.4 |
| 11152 | QH2HN-10 | 2 | Eye fitting | 100 | Φ166 x 40 | 10.2 |
| 11153 | QH3HN-10 | 3 | Eye fitting | 100 | Φ142 x 39 | 11.7 |
| 11161 | QH1BN-15 | 1 | Clevis fitting | 150 | Φ280 x 65 | 12.1 |
| 11162 | QH2HN-15 | 2 | Eye fitting | 150 | Φ205 x 50 | 12.8 |
| 11163 | QH3HN-15 | 3 | Eye fitting | 150 | Φ166 x 40 | 11.8 |
| 11164 | QH4HN-15 | 4 | Eye fitting | 150 | Φ166 x 40 | 13. |
All the sheaves are mounted on ball bearings. The frame is made of galvanized steel.
Shipment
1. The blocks will be shipped in plywood case
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The blocks will be packed in plywood case
2. It also can be packed in plywood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
