Aluminum Alloy A-shape Tubular Gin Pole With Manual Winch for Small Pole Erection
US$ 1,000 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xinya
Model Number:
LBGR
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Alloy Inner Suspended Lattice Gin Pole for Erection TowerUS$ 100 - 400MOQ: 1 Unit -
Single Pulley Aluminum Alloy Inner Suspended Lattice Gin Pole for Tower ErectionUS$ 100 - 200MOQ: 1 Unit
-
LBGR Aluminum Alloy A-shape Tubular Gin PoleUS$ 10 - 800MOQ: 1 Set
-
20KN Portable Aluminum Alloy Small Gin Pole SupportUS$ 10 - 800MOQ: 1 Set
-
LBGT Aluminum Alloy Tower Mounted Tubular Gin Pole for Erecting TowerUS$ 10 - 800MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Xinya
Model Number
LBGR
Type
Other, gin pole

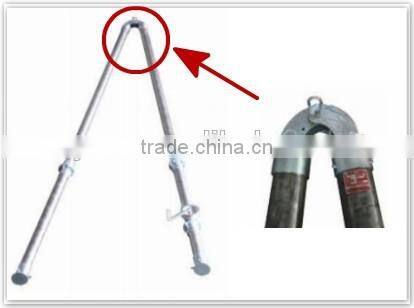

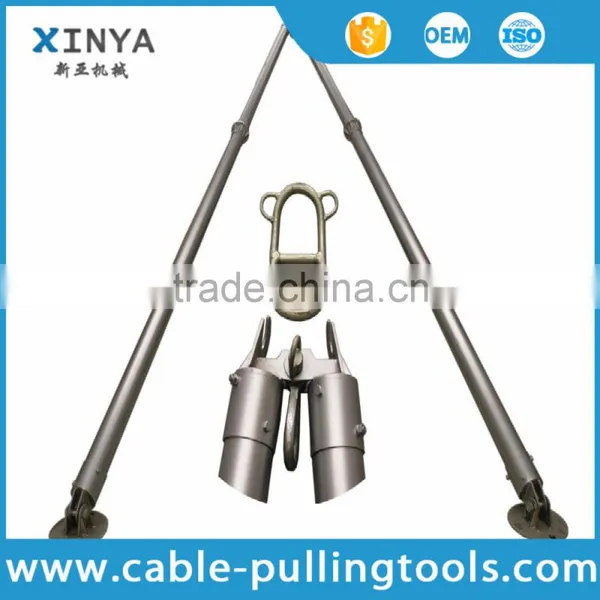

Aluminum alloy A-shape tubular gin pole with manual winch for small pole erection
Aluminum alloy A-shape tubular gin pole with manual winch for small pole erection is used for small pole erection in line construction.
Notes
1.The maximum output force of the manual winch is 5KN.
2.Use high strength aluminum alloy tube as main materials, steel parts are galvanized.
3.Fixed style head part mounted with tri-pullsy.
4.The safety factor is 2.5
5.Recommend using 7mm steel wire rope, the workable length is 9 times the length of the gin pole.
6.Recommend using iron hoisting block.
Technical Data of Aluminum alloy A-shape tubular gin pole with manual winch for small pole erection
| Model | Base strake(m)/allowable vertical load(KN) | Hoisting with manual winch | Weight(kg) | |||
| Maximum length(m) | Maximum weight(kg) | |||||
| Hoisting directly | Using bi-pulley | Using tri-pulley | ||||
| LBGR100J-6 | 2.1/18 | 9 | 600 | 720 | 5.5 | |
| LBGR100J-7 | 2.4/13 | 11 | 550 | 700 | ||
| LBGR120J-6 | 2.1/30 | 9 | 550 | 1050 | 1280 | 7.5 |
| LBR120J-7 | 2.4/26 | 11 | 550 | 870 | 1040 | |
| LBGR120J-8 | 2.8/21 | 13 | 700 | 840 | ||
| LBGR150J-8 | 2.8/31 | 13 | 550 | 1100 | 1500 | 8 |
| LBGR150J-9 | 3.1/28 | 15 | 550 | 1100 | 1500 | |
| LBGR150J-10 | 3.5/24 | 17 | 550 | 1050 | 1280 | |
| LBGR150J-11 | 3.8/20 | 19 | 550 | 980 | 1160 | |
