CYO 130 KN Hydraulic Cable Lug Crimping Tool Crimping Up to 400 Sqmm

CYO Hydraulic Cable Lug Crimping Tool

Characteristics

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 50,70,95,120,150,185,240,300,400mm2

3.Press tools is suitable for DIN.AWG.JIS.

4.There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

5.It can be operated by one person,it saves time and labor.

6.Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Introduction

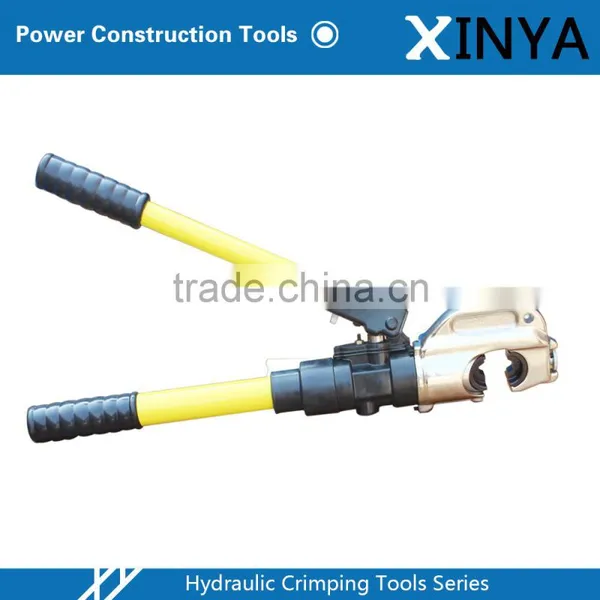

Hydraulic Crimping Tools CYO-510B is a hand-operated, self-contained tool, it is designed to crimp Cu and Al connectors onto cable. It's crimping range is from 50 to 400mm2. With the help of hydraulic power and double speed unit, crimping become easy and fast. Fiberglass handles and safety valve equipped, avoid electric shock and protect hydraulic system from overpressure.

Features

1. The compression pliers are designed for hydraulic crimping on power cable and wire.The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Open cut design for convenient operation.

3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

4. The head could be rotated 180° freely for narrow space working.

5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.

6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².

7. Fiberglass insulated handles to prevent accidental electrichitting.

8.Packing case is made form robust integarl plastic box.

Technical Data
