Motorized Hydraulic Compressor Hydraulic Crimping Tool With Gasoline Engine 100 Tons 200 Tons
US$ 500 - 900
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
HP-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EP-510 Hand Hydraulic Cable Lug Crimping ToolUS$ 250 - 300MOQ: 2 Sets -
EP-510 Hydraulic Crimping Tool Hydraulic Cable Lug Crimping ToolsUS$ 200 - 300MOQ: 2 Sets
-
EP-510 Hydraulic Wire Rope Crimping Tools for Crimping Cable LugUS$ 200 - 300MOQ: 2 Pieces
-
EP-510 Hydraulic Cable Lug Crimping Tool Up to 400mm2US$ 300 - 400MOQ: 2 Sets
-
High Quality CYQ Portable Hydraulic Crimping ToolNegotiableMOQ: 2 Sets
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
HP-100
Type
Hydraulic Crimping Tools

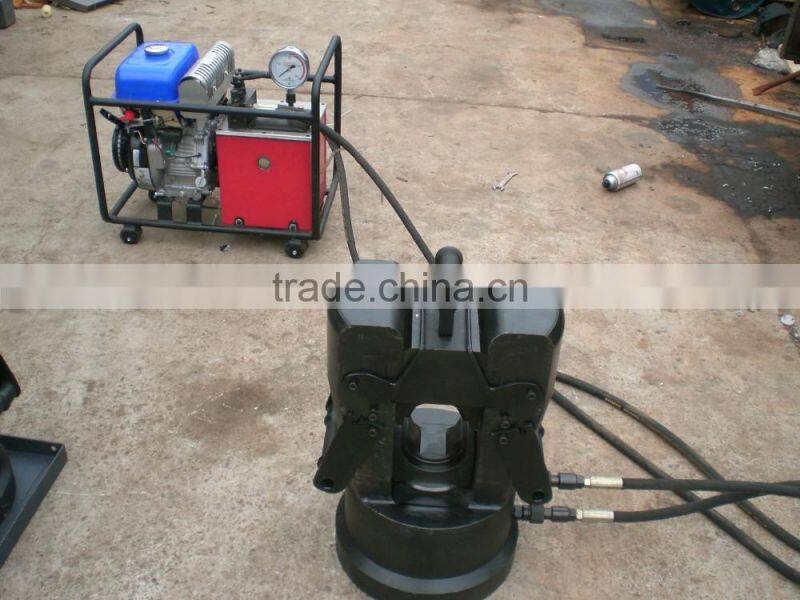

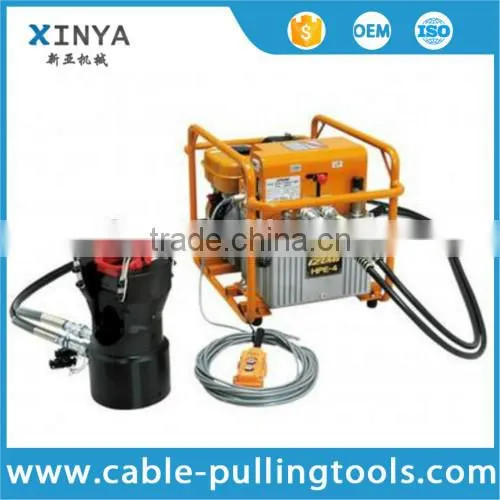

Motorized Hydraulic Compressor Hydraulic Crimping Tool
with Gasoline Engine 100 tons / 200 tons ;
Hydraulic Press with Petrol Engine Double Acting
Application:

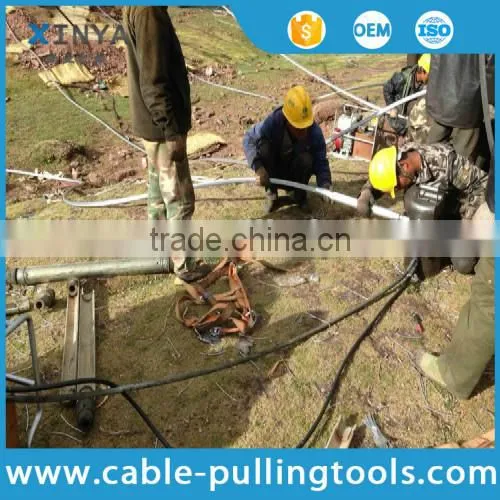

Motorized Hydraulic Compressor / Hydraulic press is used to join wire ends and strengthen damaged condcutor (restorative-repair).
Technical Data:

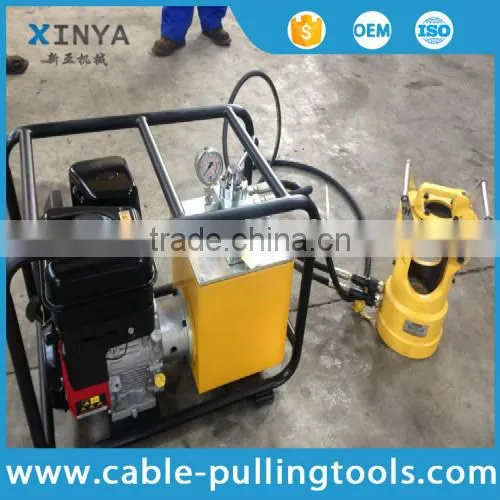

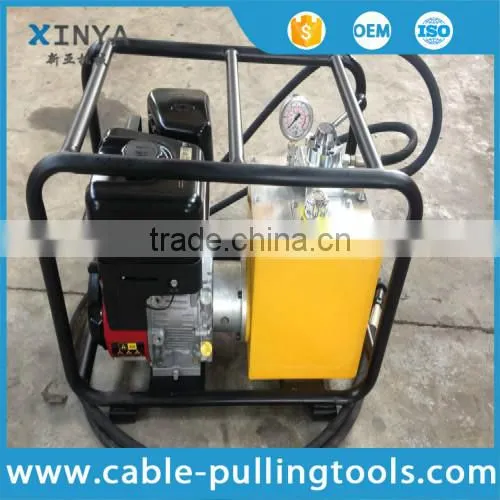

| Superhigh Hydraulic Pump SP2H | |
| Model | SP2HHX-1 |
| Engine Power | 5.5HP(3.4KW) HONDA GX160 Petrol engine |
| Engine Rotational speed | 4000r/min |
| Rated Press/Delivery Capacity | 800bar / 1.8L/min (High) |
| 90bar / 9L/min (Low) | |
| Hydraulic Oil Model | 46# antiwear hydraulic oil |
| Capacity of Hydraulic oil box | 19L |
| Filling quantity of hydraulic oil | 15L |
| Overall Dimension | 620×420×430mm |
| Total Weight | 40kg(without hydraulic oil) |
| Acting Style to the hydraulic cylinder | double acting |
| Hydraulic reversal valve for middle position | M(up-hold-down) |
Oil Hose standard length: 2.5 m/pc * 2pcs
Note:
Length of oil hose can be made as per your requirement.

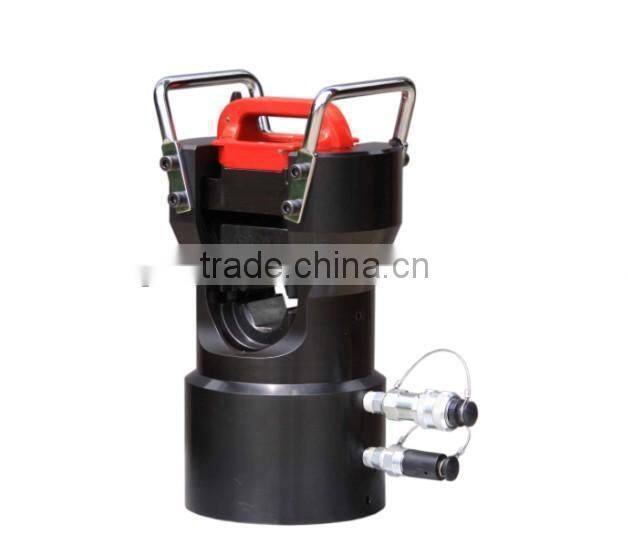

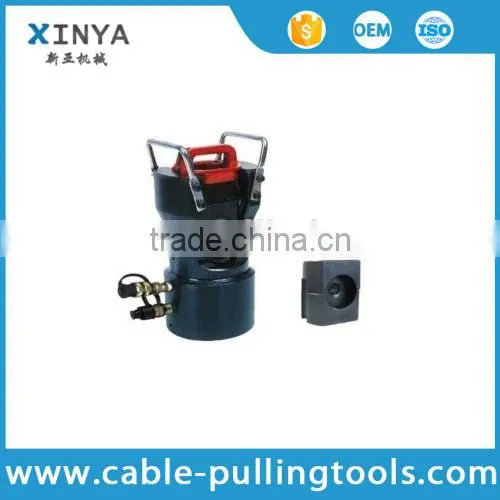

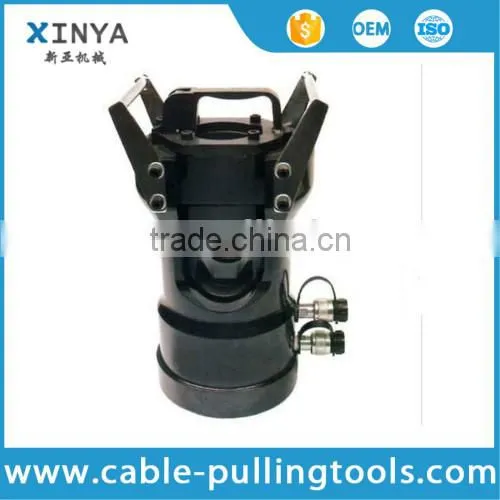

Hydraulic compression head HP-100W:
- Output pressure:100 tons
- Rated working pressure:80MPa;
- Stroke:22mm
- Weight:33kgs
Hydraulic compression head HP-200W:
- Output pressure:200 tons
- Rated working pressure:80MPa;
- Stroke:40mm
- Weight:90kgs
Hydraulic compression head HJC125:
- Max output pressure:125 tons;
- Rated working pressure:80MPa;
- Stroke:25mm;
- Weight:40Kg;
Hydraulic compression head HJC200:
Max output:200 tons;
Rated working pressure:80MPa;
Stroke: 25mm;
Weight:86Kg;
