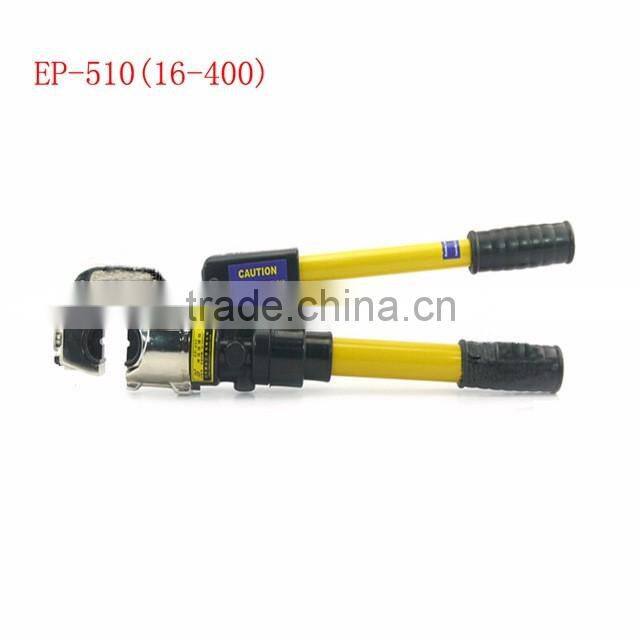

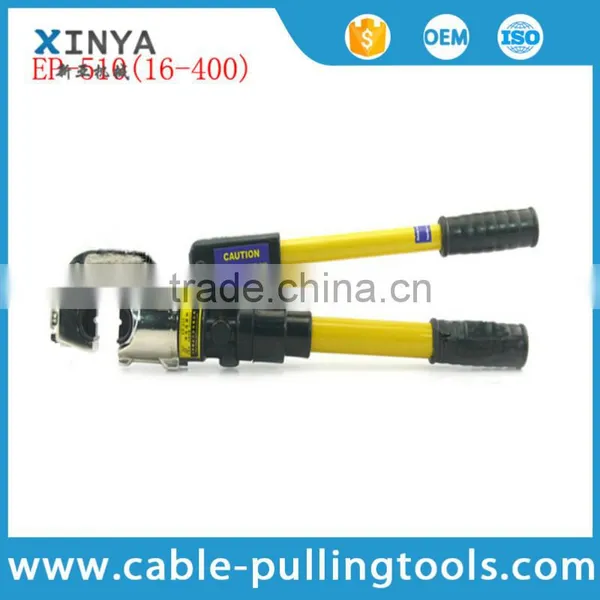

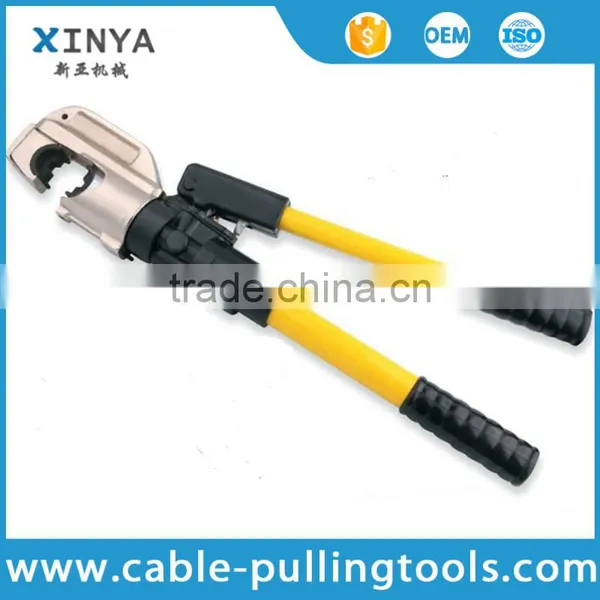

EP-510 Manual Hydraulic Crimping Tool Crimping from 16 to 400sqmm
1. Fully rotated crimping tool head
2. With safet6y euiquipment for protecting the whole hydraulic system.
3. Rotate the handle for pressure release
4. Fiber glass handle
5. Nickel plating tool head
6. C shape open tool head
7. Suitable for 16-400mmsq crimping size
8. Tool Weight:7.6kg
9. Packed in plastic carrying case.
Characteristics
1.Compression mould can be replaced,easy operation.
2.Accessories:50,70,95,120,150,185,240,300,400mm2.
3.Press tools is suitable for DIN,AWG,JIS
4.There is a safety protection device of "Kacha"voice when it reaches to the high voltage or low voltage.
5.It can be used in working in the higher levels by one person.It saves time and labor.
6.Pump is connected to the tools,the head of die-casting can be turned 180 degree.
Technical Data
| Order Number | 10645 | 10646 |
| Model | EP-430 | EP-510 |
| Max Compression(KN) | 120 | 130 |
| Stroke(mm) | 30 | 38 |
| Range of Compression Joint | Terminals:50-400mm² | Terminals:50-400mm² |
| Weight(KG) | 6.4 | 7.4 |
| Dies | 50,70,95,120,150,185,240,300,400mm² | 50,70,95,120,150,185,240,300,400mm² |
