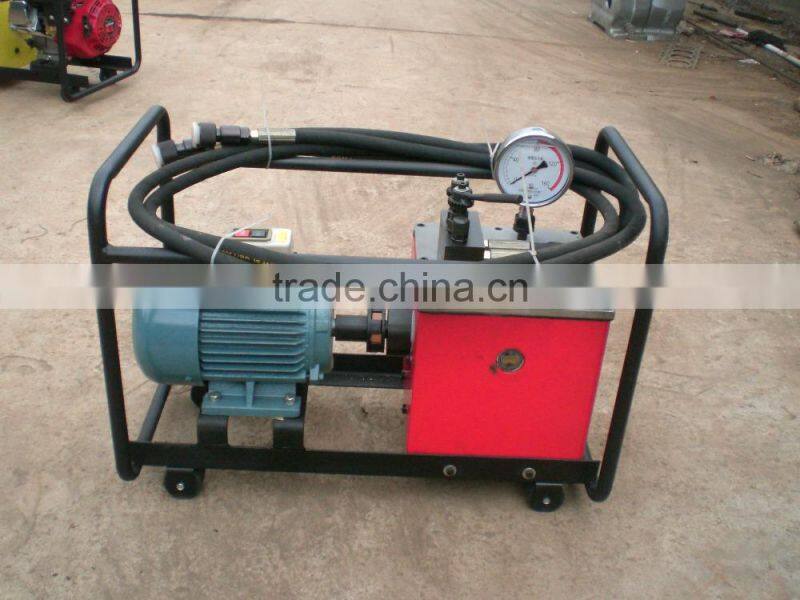

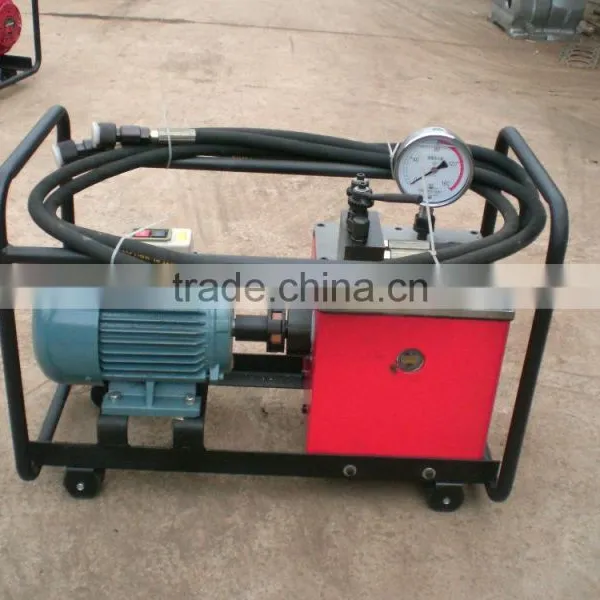

70Mpa electrical hydraulic oil pump

70Mpa electrical hydraulic oil pump

Use and Characteristics

Double speed high performance pumps, built in 10000Psi pressure overflow valve, can ensure the maximum

flow when maximum pressure.

Standard of can see an oil window, observe the location of oil, with the normal operation that assures machine;

Equipped with low noise pure aluminum alloy enclosure motor and light weight, convenient to move.

Can choose to equip long range wire to control a switch, easy to long-distance to leave an operate

Use the following Suggestions 200 T of hydraulic cylinder

Technical specification below for your reference:

Type NO.:JYB100D

Rated Pressure:80MPa

Max Pressure:85MPa

Rated Flow:1.6L/min

Rated Input Power:1.5KW

Suitable Working Tempreture:-5℃≤t≤45℃

Weight:100KG

Demsion(mm):750×400×580
