80Mpa Diesel Engine Pump High Pressure Hydraulic Pumps for Supply Power
Application

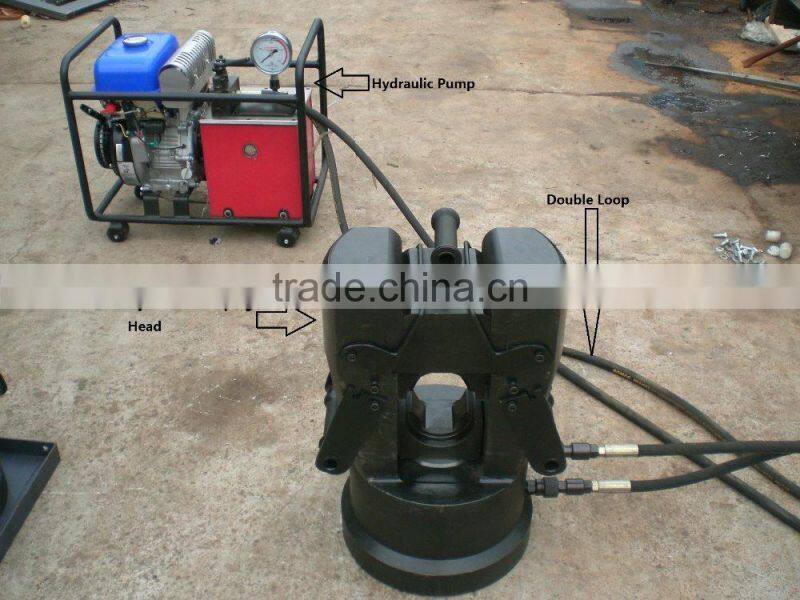

Diesel High Pressure Hydraulic Oil Pump is used to provide power for the cutting tool,the hydraulic compressor ,punching manchine and other construction machinery,which is operated in the wild field in electric power,railway,rescue,construction and other industries.
Features
1 Easy to operate and high safty
2 Precise Machining Technique
3 Long Life of the Machine
4 Delicate and Beautiful Appearance Design
5 Broader Applicable Scope
6 Good quality and less malfunction
Technical Data
| Model No. | JYB-100 |
| Rated Pressure | 80MPa |
| Max Output Pressure | 85Mpa |
| Rated Flow | 1.6L/min |
| Rated Input Power | 1.5KW |
| Hydraulic Oil | No.32 hydraulic oil |
| Oil Tank | 8L |
| Gear Oil | No.32 hydraulic oil |
| Engine | 170F 4HP Diesel engine |
| Weight | 100kg |
| Size | 600*430*520 |
DAILY MAINTENANCE
The life,reliablity,and safety of the tool is dependent on proper maintenance.Clean all surfaces including head,die seat,ram,and body.
Inspect for wear and damage.Worn or damaged parts may malfunction during operation.
All parts must be replaced with new parts if signs of wear or damage are evident.
Keep Lable Set clean and legible.Replace decales when necessary.
Manufacturer recommends regular testing for proper pressure and operation.
Test at least every 6 months,test more often under heavy usage.
GENERAL INFORMATION
1. IMPORTANT:Extreme caution should be used to prevent the entry of this material into th unit.Wipe off all couplings and fittings before connecting to unit.Be sure that any pump to be used with the compression tool is clean and free of dirt and contamminants.
2. PERIODIC MAINTENANCE:Occasionally lubricate die stop plunger assemblies.Use of a molybdenum disulfide grease is recommended.Pull pin and pivot pin assemblies should also be cleaned and lubricated to prevent sticking.
3. Oil LEAKAGE:A small amount of seepage from the piston and pump seals is normal and necessary to aid in the lubrication of the moving parts.Excessive leakage may indicate the need for seal replacement and should be performed only by an authorized reliable service center

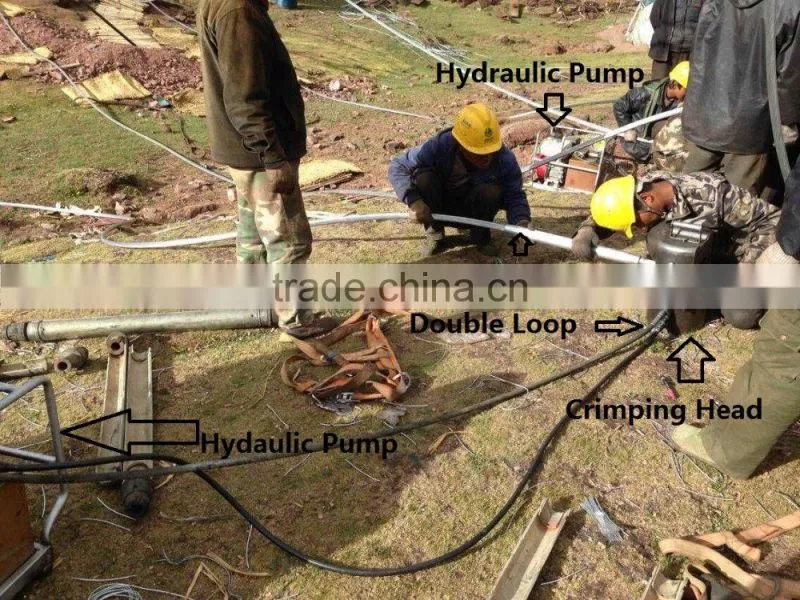

Practical Application
Please tell us the following information in your enquiry:
1. Rated Pressure(Mpa) ?
2. Rated Flow(L/min) ?
3. Max output pressure(Mpa) ?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
