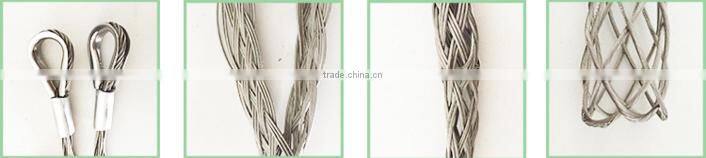

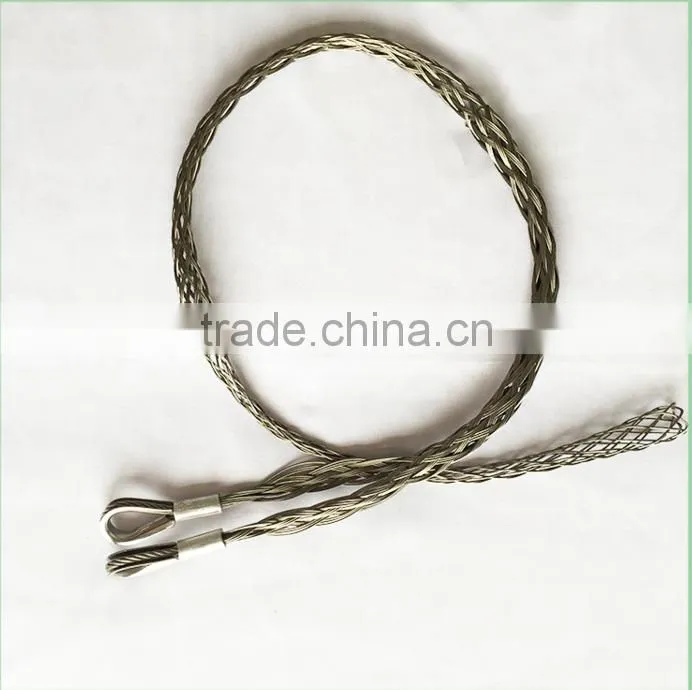

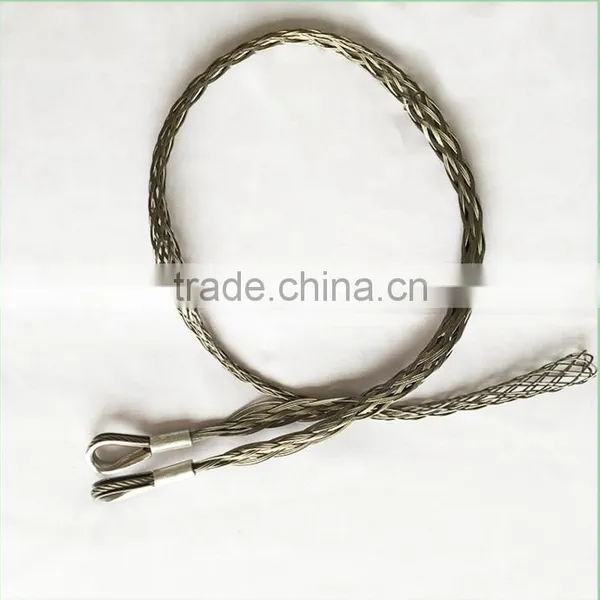

Double Head Close Weave Cable Pulling Grip
Introduction
These grips are specifically designed for use with the metric range of cables. They also feature a
slightly longer lattice design. They are ideal for pulling light to medium loads, where the cable needs
to pass through the grip. The eyes on these grips are reinforced with a thimble for extra durability.
Technical Data
Part number | Dimensions | |||
eye | Mesh | Nominal Size | Support Load Capacity | |
CFGD015 | 9.8 in | 49 in | 0.50”-0.62” in | 1240 lbs |
CFGD020 | 9.8 in | 49 in | 0.63”-0.99” in | 1990 lbs |
CFGD030 | 9.8 in | 49 in | 1.00”-1.49” in | 3060 lbs |
CFGD040 | 9.8 in | 59 in | 1.50”-1.99” in | 5930 lbs |
CFGD050 | 9.8 in | 59 in | 2.00”-2.49” in | 5930 lbs |
CFGD060 | 9.8 in | 59 in | 2.50”-2.99” in | 7790 lbs |
CFGD070 | 9.8 in | 59 in | 3.00”-3.49” in | 8110 lbs |
CFGD090 | 9.8 in | 59 in | 3.50”-4.24” in | 11830 lbs |
CFGD110 | 9.8 in | 59 in | 4.25”-4.99” in | 11830 lbs |
CFGD120 | 9.8 in | 59 in | 5.00”-5.49” in | 12750 lbs |
CFGD140 | 9.8 in | 59 in | 5.50”-5.99” in | 12750 lbs |
