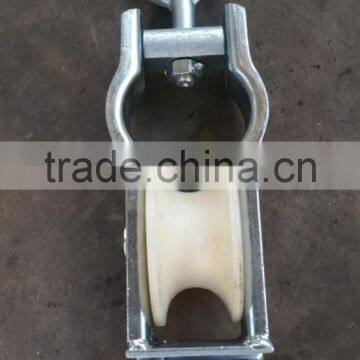

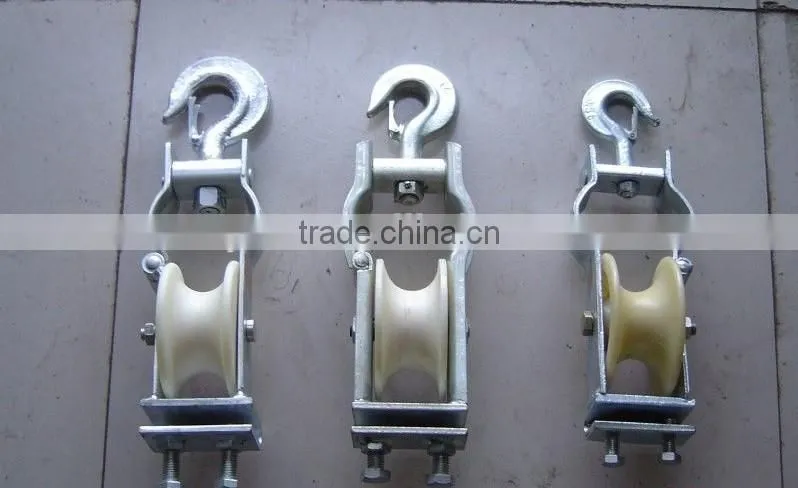

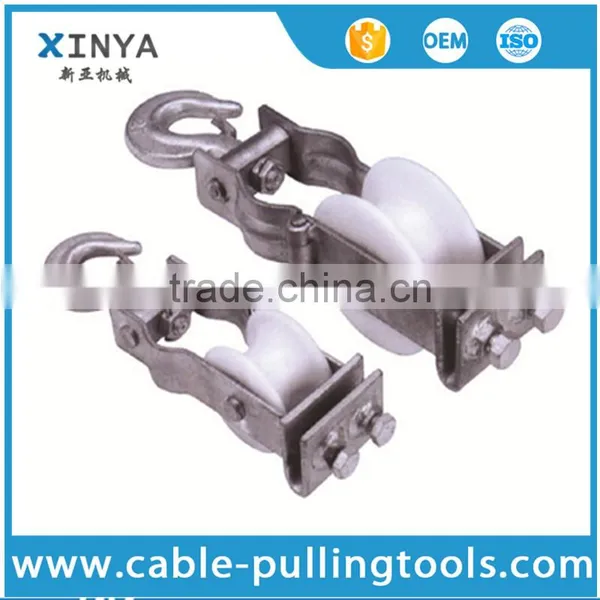

Dual-purpose stringing pulley with Nylon/Aluminum wheel cable pulley block
Use and Characteristics:
Suit for middle and small section wire expand.
About to hang pay-off pulley, also can be face to pay-off pulley.
1)sheave:Nylon/ Al;
2)Material quality:stainless
3)Rated load:0.5Ton,1Ton;2Ton
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical specification below for your reference:
| Product No. | Model Type | Outside Dia * Width(mm) | Rated Load(KN) | Weight(kg) | Material |
| 80357 | SHC-0.5A | Φ80*50 | 5 | 1.9 | Aluminum |
| 80358 | SHC-0.5B | Φ120*30 | 5 | 2.1 | Aluminum |
| 80359 | SHC-1A | Φ160*40 | 10 | 2.5 | Aluminum |
| 80360 | SHC-2B | Φ120*58 | 20 | 3.5 | Aluminum |
| 80361 | SHCN-0.5A | Φ80*50 | 5 | 1.4 | Nylon |
| 80362 | SHCN-0.5B | Φ120*30 | 5 | 1.6 | Nylon |
| 80363 | SHCN-1A | Φ160*40 | 10 | 2 | Nylon |
| 80364 | SHCN-2B | Φ120*58 | 20 | 2.5 | Nylon |
