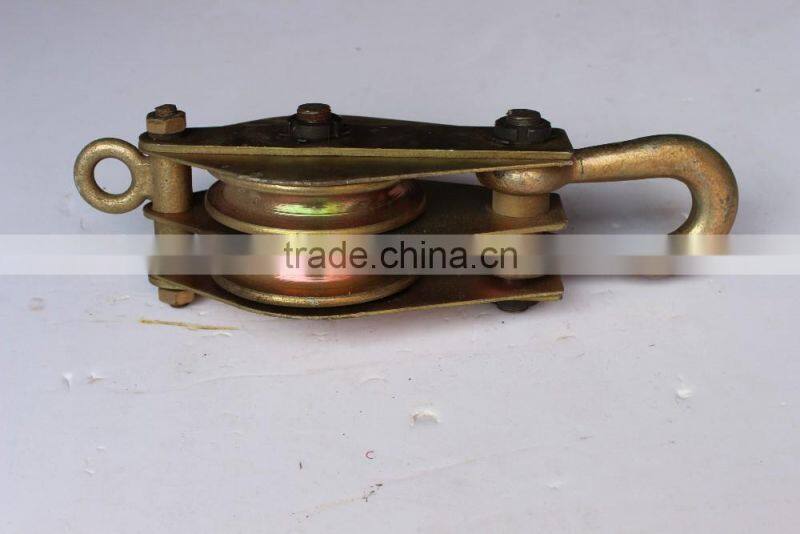

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight thumbnail-1
Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight photo-1
US$ 20 - 500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Round Belt
Material:
Other, Iron
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changshu Xinya Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Round Belt
Material Other, Iron
Place of Origin Jiangsu, China
Brand Name XINYA
Model Number QH1-1K

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight





Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight



Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight





Uses:To erect pole and pylon, line construction, hoist devices,etc.



Features

Safe and Reliable

Light in weight



Notes:You must explain clearly which style you needed in writing contact, hook style(G), round eye style(H) or clevis(B).



Technical Data for Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Order Number Model Number of sheaves Rated load(KN) Outside diameter*width(mm) Diameter of rope(mm) Weight(KG) Hoisting point type
10452 QH1-1K 1 10 Φ100*31 Φ7.7 2.8 G H
10453 QH1-2 2 10 Φ80*28 Φ6 2.8 G H
10454 QH1-3 3 10 Φ80*27 Φ6 4.1 G H
10455 QH2-1K 1 20 Φ120*35 Φ9.3 4.2 G H B
10456 QH2-2 2 20 Φ100*31 Φ7.7 4.2 G H
10457 QH2-3 3 20 Φ100*31 Φ7.7 6 G H
10458 QH3-1K 1 30 Φ150*39 Φ11 7 G H B
10459 QH3-2 2 30 Φ120*35 Φ9.3 5.3 G H
10460 QH3-3 3 30 Φ100*31 Φ7.7 6.5 G H
10461 QH5-1K 1 50 Φ166*40 Φ13 9.6 G H B
10462 QH5-2 2 50 Φ150*39 Φ11 10.8 G H
10463 QH5-3 3 50 Φ120*35 Φ9.3 7.7 G H
10464 QH8-1K 1 80 Φ205*50 Φ17 12.5 G H B
10465 QH8-2 2 80 Φ166*40 Φ13 17 G H
10466 QH8-3 3 80 Φ150*39 Φ11 17.5 G H
10467 QH10-1K 1 100 Φ246*60 Φ18.5 25 G   B
10468 QH10-2 2 100 Φ166*40 Φ13 18.5   H
10469 QH10-3 3 100 Φ150*39 Φ11 20   H
10470 QH15-1K 1 150 Φ280*65 Φ21.5 34     B
10471 QH15-2 2 150 Φ205*50 Φ17 22   H
10472 QH15-3 3 150 Φ166*40 Φ13 26   H
10473 QH15-4 4 150 Φ150*39 Φ11 30   H
10474 QH20-4 4 200 Φ205*50 Φ17 50   H



Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight



Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight





Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning WeightIron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Iron Wheel Hoisting Iron Block and Lifting Tackle for Craning Weight

Please tell us the following information in your enquiry:

1. Applicable Steel Strand(mm2) ?

2. Dia of Wheel(mm)?

3. Width of Wheel(mm) ?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
