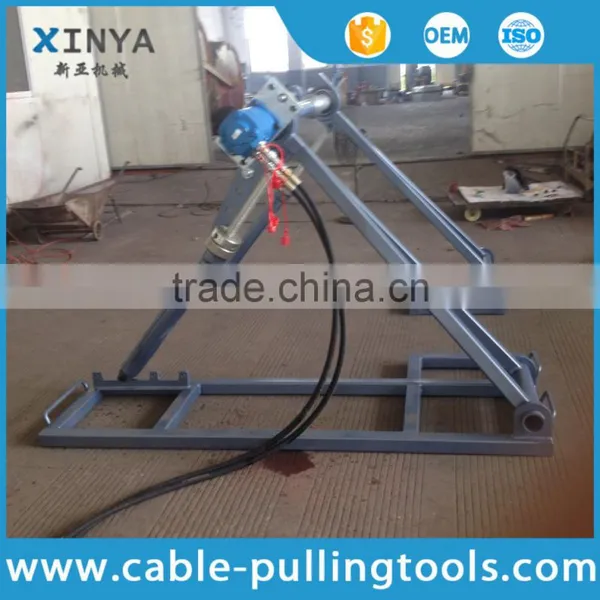

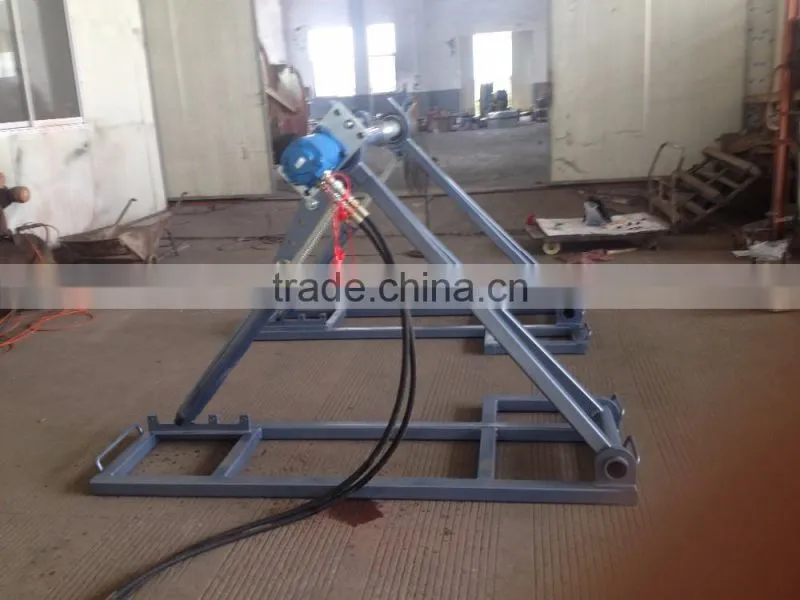

SIPZ-7H Hydraulic Drum Stands Cable Drum Jacks with Hydraulic Motor
Drum stands with hydraulic motor is used with hydraulic tensioner for supporting conductor drum in transmission line stringing operation,
7 Ton Hydraulic reel stand with Motor
| Item No. | Model | Accommodated Reel | Brake force (N.M) | Rotation speed (rpm) | Weight (kg) | |||
| Diameter (mm) | Width (mm) | Bore (mm) | Max. Weight | |||||
| 15152 | SIPZ-7H | ≤Φ1250-2500 | ≤1400 | Φ80-125 | 7Ton | 2000 | 45 | 350 |
Application: It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.
Features: It could be dismantled into 5 pieces, easy for transportation.
10 Ton Hydraulic reel stand with Motor
| Item No. | Model | Accommodated Reel | Brake force (N.M) | Rotation speed (rpm) | Weight (kg) | |||
| Diameter (mm) | Width (mm) | Bore (mm) | Max. Weight | |||||
| 15155 | SIYZ10 | ≤Φ2000-3000 | ≤1700 | Φ80-125 | 10 Ton | 3300 | 45 | 400 |
Application
It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.
Features: It could be dismantled into 5 pieces, easy for transportation.
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The machine will be loaded in container and fixed with steel wire rope.
2. The accessory and operation manual will be packed in plywood case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
