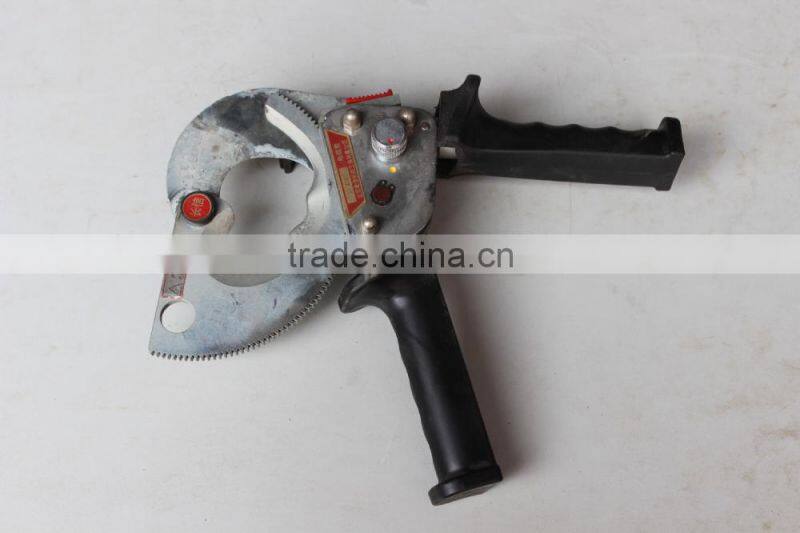

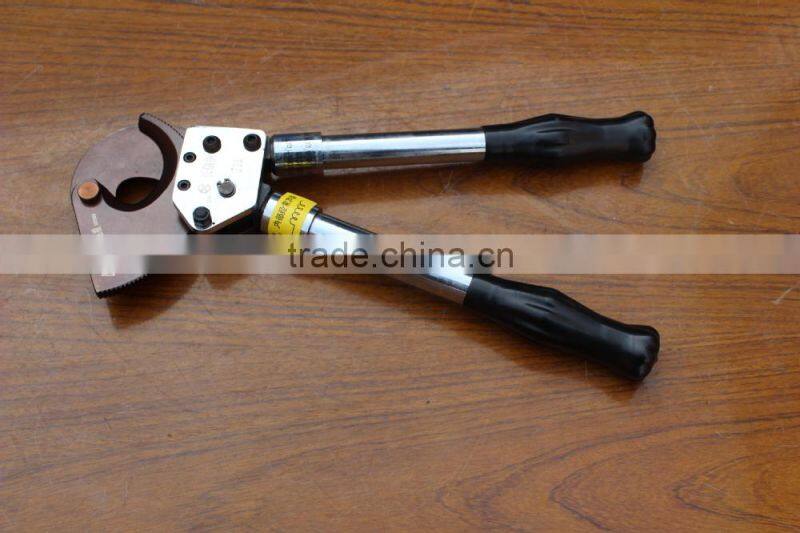

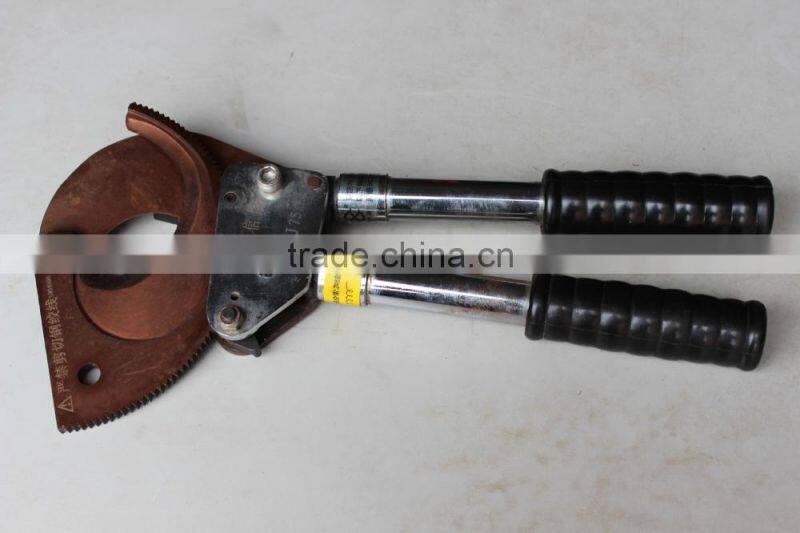

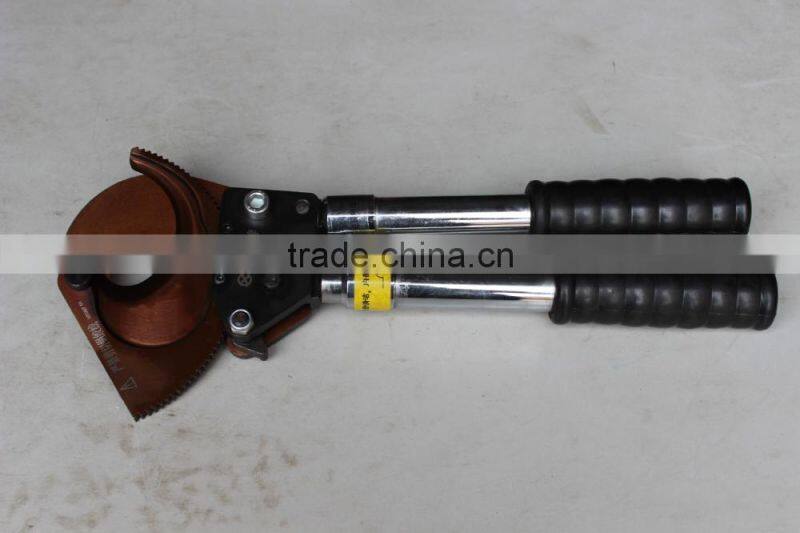

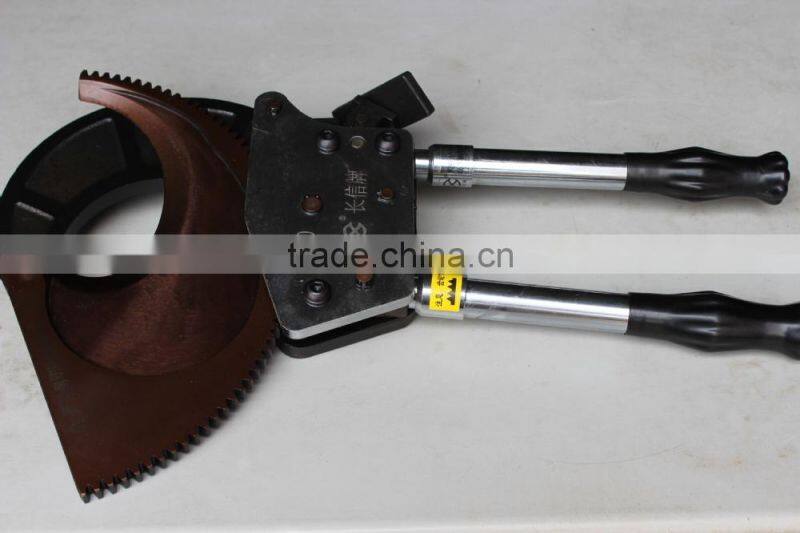

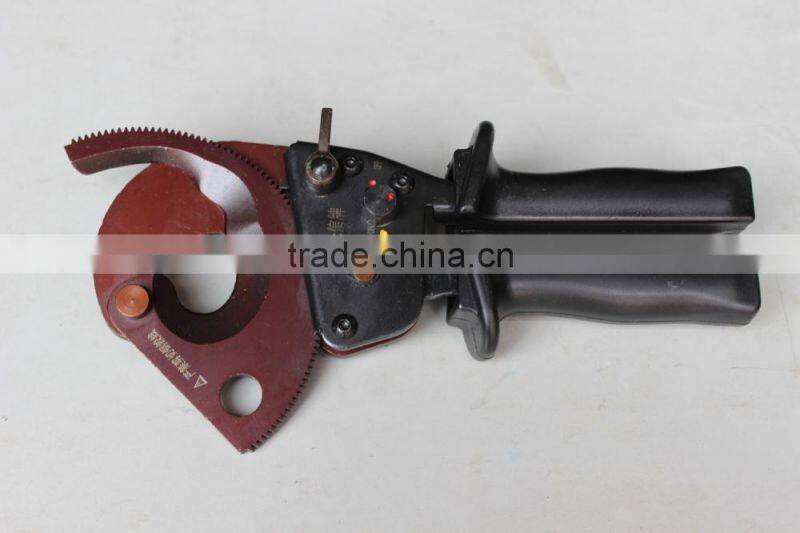

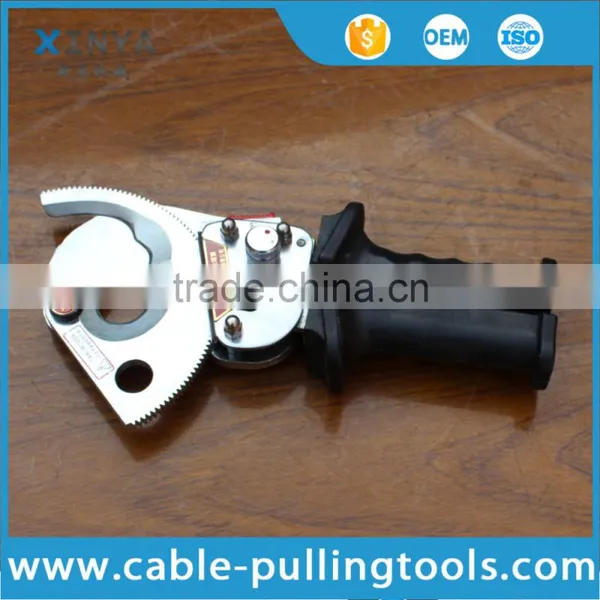

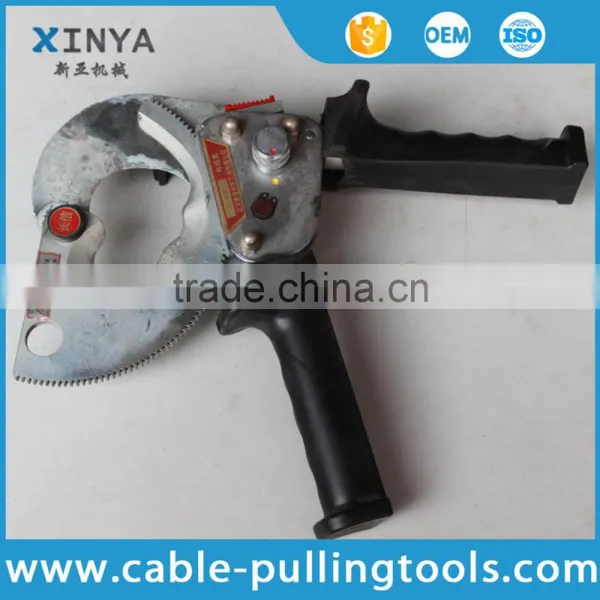

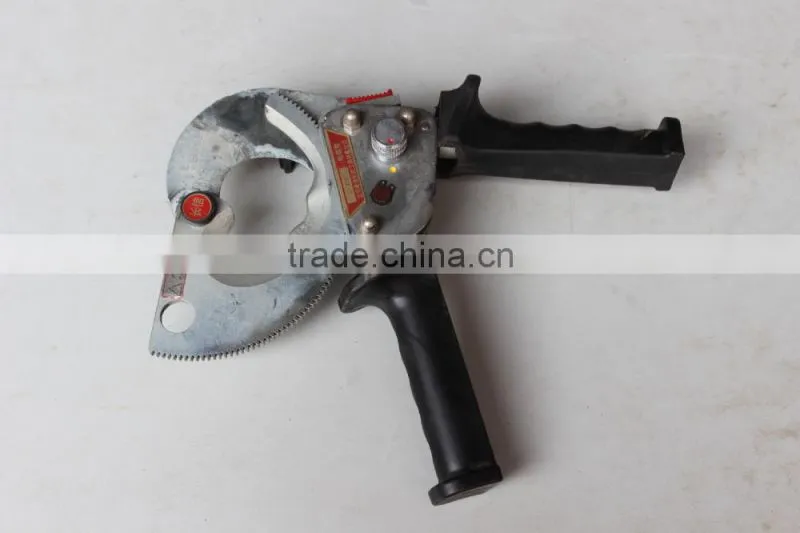

Different Types of Armoured Hand Cable Cutter
Use and Characteristic
1.cutting the different kinds of cable, wire etc.
2. Forged knife edge for long shelf and easy cutting.
3. Compact and light easy carrying.
4. Easy release and could stop at any position.
5. If knife return is necessary during cutting, let the movable handle lock and against the prop tooth block, then loosen the hand which gripes the handle, trun the swivel knife in counter clockwise.
Technical Data
| NO. | Model No | Specification | |
| 1 | J13 | Cutting Range | ACSR≤720mm2,Prestressed steel wire≤150mm2 |
| Weight | 1.95kg | ||
| 2 | J30 | Cutting Range | ACSR≤630mm2,Prestressed steel wire≤100mm2 |
| Weight | 3.6kg | ||
| 3 | J25 | Cutting Range | ACSR≤800mm2,Prestressed steel wire≤150mm2 |
| Weight | 3.45kg | ||
| 4 | J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | ||
| 5 | J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | ||
| 6 | J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | ||
| 7 | J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | ||
| 8 | J40A | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1kg | ||
| 9 | J40B | Cutting Range | Copper&Aluminum Cable ≤240mm2 |
| Weight | 0.65kg | ||
| 10 | J40C | Cutting Range | For Big blade,Copper&Aluminum Cable ≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | ||
| 11 | J40D | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1.05kg | ||
| 12 | J40 | Cutting Range | Copper&Aluminum Cable ≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | ||
| 13 | J52 | Cutting Range | Copper&Aluminum armoured cable≤500mm2 |
| Weight | 3.1kg | ||
| 14 | J75 | Cutting Range | Copper&Aluminum armoured cable≤3×120mm2; Copper&Aluminum armoured cable≤75mm; 3600 pairs coommunication cable |
| Weight | 3.6kg | ||
| 15 | J95 | Cutting Range | Copper&Aluminum armoured cable≤3×185mm2; Copper&Aluminum armoured cable≤95mm |
| Weight | 5kg | ||
| 16 | J100 | Cutting Range | Copper&Aluminum armoured cable≤3×300mm2; Copper&Aluminum armoured cable≤100mm |
| Weight | 6.6kg | ||
| 17 | J130 | Cutting Range | Copper&Aluminum armoured cable≤130mm |
| Weight | 8.3kg | ||
| 18 | J160 | Cutting Range | Copper&Aluminum armoured cable≤160mm |
| Weight | 11.1kg | ||
