Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
J75
Type
Other, Cutting Tools, Cutting Tools
J75 Manual Armoured Cable Cutter
Use and Characteristic
The fly-bar adopts two stage type coupling flange, when incising can scatter strength, easy protect fly-bar.
Note: do not cut still core line and steel strand
Technical Data
| Product No. | Model Type | Cutting Range | Weight(kg) |
| 80271 | DJ-75 | 3.4 |

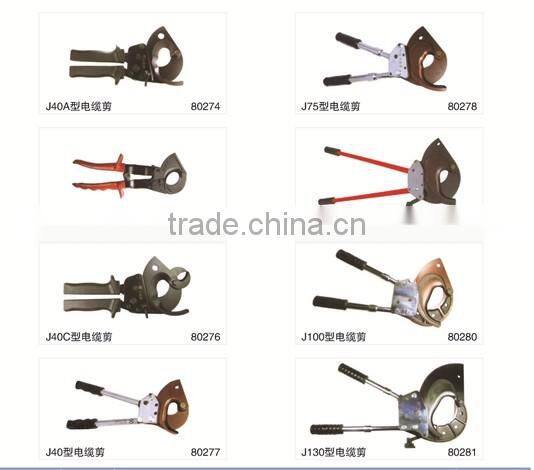

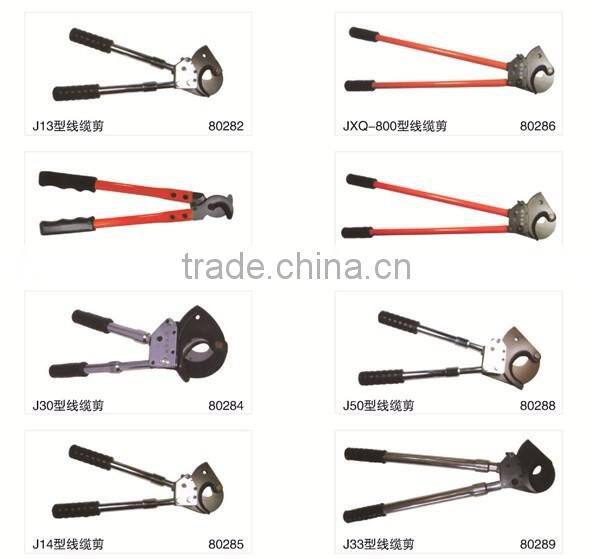

Different Types of Cable Cutters
| NO. | Model No | Specification | |
| 1 | J13 | Cutting Range | ACSR≤720mm2,Prestressed steel wire≤150mm2 |
| Weight | 1.95kg | ||
| 2 | J30 | Cutting Range | ACSR≤630mm2,Prestressed steel wire≤100mm2 |
| Weight | 3.6kg | ||
| 3 | J25 | Cutting Range | ACSR≤800mm2,Prestressed steel wire≤150mm2 |
| Weight | 3.45kg | ||
| 4 | J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | ||
| 5 | J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | ||
| 6 | J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | ||
| 7 | J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | ||
| 8 | J40A | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1kg | ||
| 9 | J40B | Cutting Range | Copper&Aluminum Cable ≤240mm2 |
| Weight | 0.65kg | ||
| 10 | J40C | Cutting Range |
For Big blade,Copper&Aluminum Cable ≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | ||
| 11 | J40D | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1.05kg | ||
| 12 | J40 | Cutting Range |
Copper&Aluminum Cable ≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | ||
| 13 | J52 | Cutting Range | Copper&Aluminum armoured cable≤500mm2 |
| Weight | 3.1kg | ||
| 14 | J75 | Cutting Range |
Copper&Aluminum armoured cable≤3×120mm2; Copper&Aluminum armoured cable≤75mm; 3600 pairs coommunication cable |
| Weight | 3.6kg | ||
| 15 | J95 | Cutting Range |
Copper&Aluminum armoured cable≤3×185mm2; Copper&Aluminum armoured cable≤95mm |
| Weight | 5kg | ||
| 16 | J100 | Cutting Range |
Copper&Aluminum armoured cable≤3×300mm2; Copper&Aluminum armoured cable≤100mm |
| Weight | 6.6kg | ||
| 17 | J130 | Cutting Range | Copper&Aluminum armoured cable≤130mm |
| Weight | 8.3kg | ||
| 18 | J160 | Cutting Range | Copper&Aluminum armoured cable≤160mm |
| Weight | 11.1kg | ||
