Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-1
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-2
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-3
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-4
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-5
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip thumbnail-6
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-1
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-2
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-3

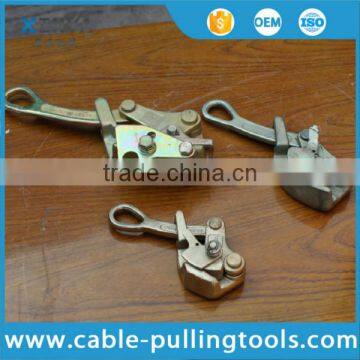

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-4
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-5
Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip photo-6
US$ 20 - 40 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
s
Contact Supplier Request Quote Chat Now
Changshu Xinya Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name OEM
Model Number s
Type Wire Rope Clip
Material Other, steel

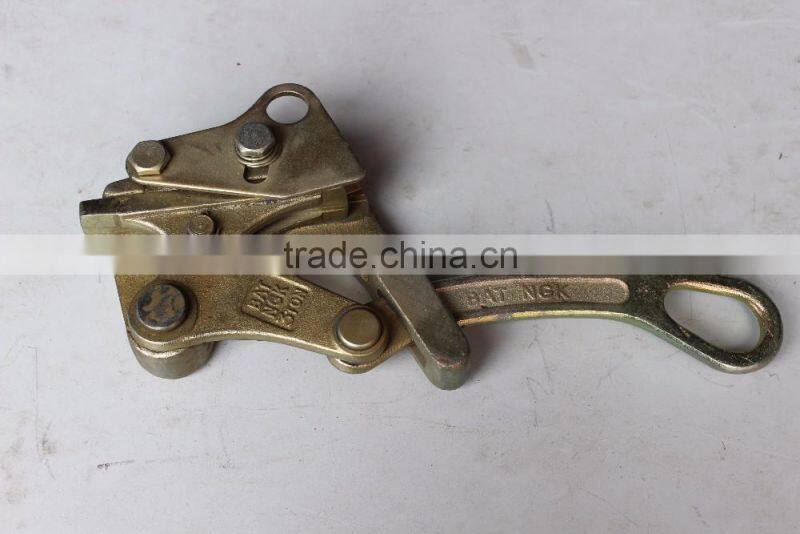

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip



Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip



Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip



Specification

Item No.
Model No.
Rated Load
(KN)
Applicable Conductor Diameter
(MM)
Unit Weight
(KG)
0126
SD-1000
10
2.6~15
0.75
0127
SD-2000CL
20
4~22
1.3
0103
SD-3000CL
30
16~32
2.5

Features: Product is forged of alloy steel with heat treatment. The rack has strong anti-tension with high occlusion strength. It is not easy to slide and deformation.

Note:

1. SD-1000 Apply to steel rope and steel stranded wire;

2. SD-2000CL Apply to steel rope and conductor wire;

3. SD-3000CL Apply to copper wire, aluminum wire, ACSR or aerial insulation line.

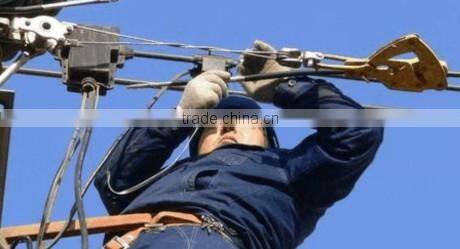

Application

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip

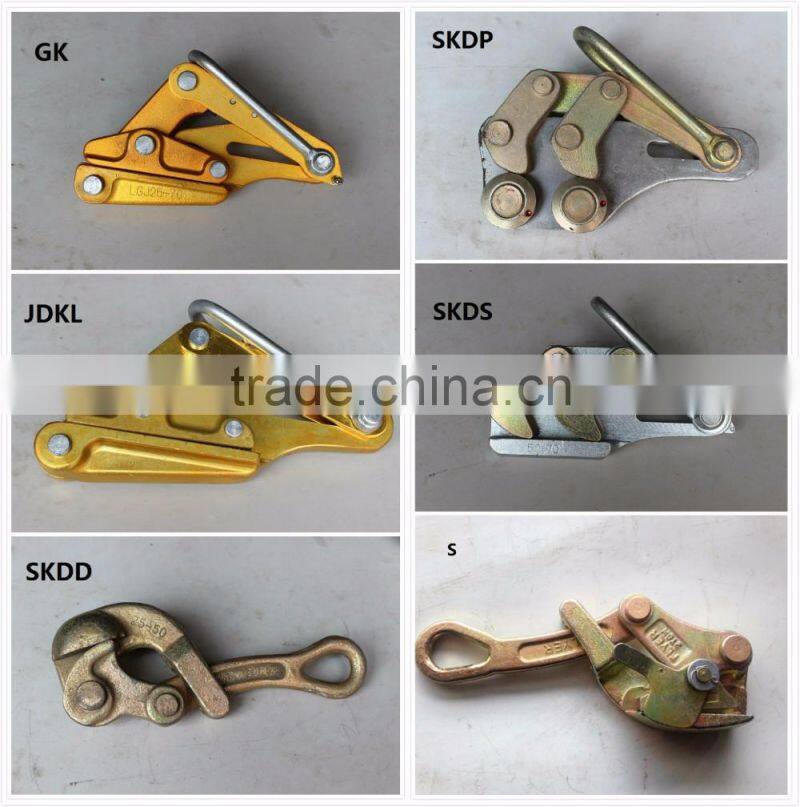

Different Types

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip



Aluminum alloy cable wire grip Wire conductor Grips



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Rated Load(KN)

Adapt wire(mm2)

Open(mm)

Weight(kg)

GK-1

8

25-70

13.5

1.4

GK-2

16

95-120

17.5

2.1

GK-3

30

150-240

24

3

GK-4

42

300-400

32

4

GK-5

50

500-630

37

7

GK-6

70

720-830

40

9.5



Insulated Wire Rope Grip/Cable Grip



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Rated Load(KN)

Applicable Range(mm2)

Weight(kg)

JDKL-1

10

25-70

1.7

JDKL-2

20

95-120

2.5

JDKL-3

30

150-240

2.8

JDKL-4

40

300-400

3.2



Eccenter wire grip for groud wire



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Proper conductor(GJ)

Rated Load(KN)

Max Openging (mm)

Weight(kg)

SKDP-1

25-50

10

11

2.3

SKDP-2

50-70

20

13

2.7

SKDP-3

70-120

30

15

3.7



Ground peach wire grip for grounding wire



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Proper conductor(GJ)

Rated Load(KN)

Max Openging (mm)

Weight(kg)

SKDS-1

25-50

10

11

1.9

SKDS-2

50-70

20

13

2.4

SKDS-3

70-120

30

15

3.5



Single peach wire grip for ground wire



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Proper conductor(GJ)

Rated Load(KN)

Max Openging (mm)

Weight(kg)

SKDD-1

25-50

10

11

1.3

SDKK-2

70-120

20

16

1.7



Multifunction modle wire grip for wire



Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.



Model No.

Proper conductor(GJ)

Rated Load(KN)

Max Openging (mm)

Weight(kg)

SD-1000C

2.6-15

10

13

0.8

SD-2000CL

4-22

20

22

1.3

S-3000CL

16-32

30

32

2.5

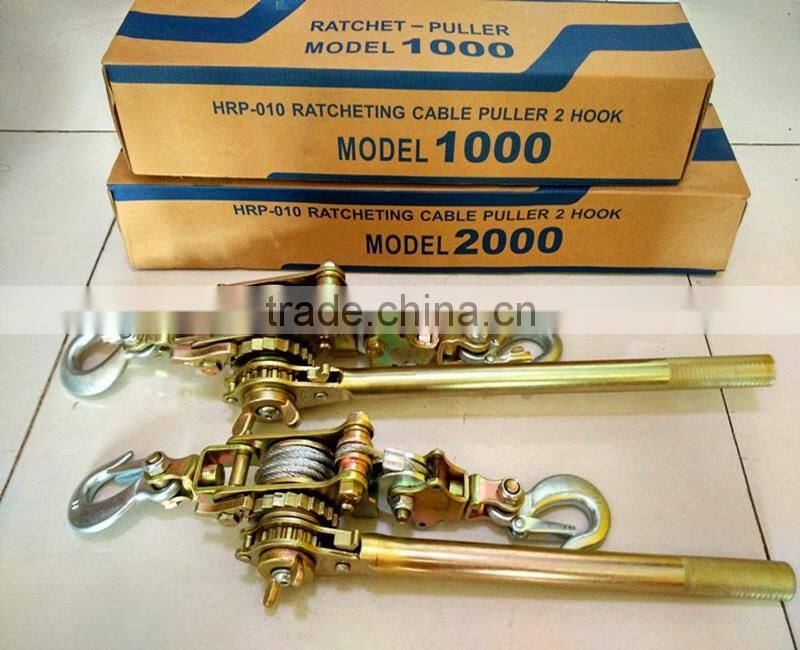

Related Tools-Cable Puller

Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip
