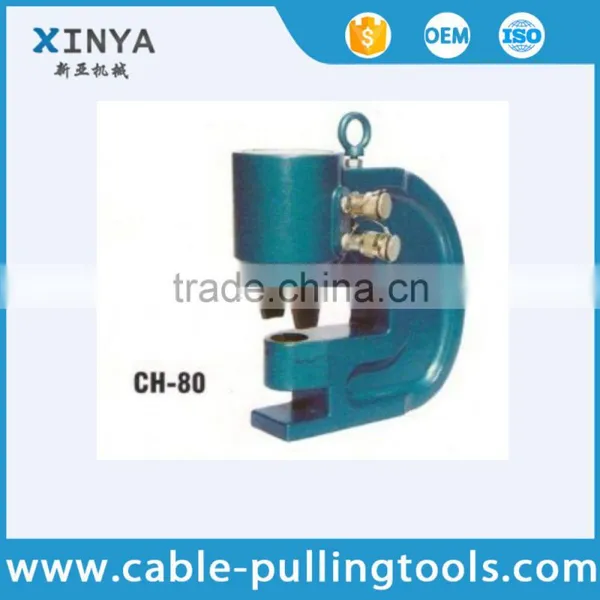

CH-80 Hydraulic Hand Hole Punch For Metal Sheet 50 Ton Output

Application

CH -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

FUNCTION:

This machine is a dedicated bus installation, punching machines and tools required to complete pump (manual pump,Treadle pumps,electric
pumps) use.
1. It is designed for punching holes on Cu/AI bus bar.
2. Fast speed punching, accurate position without deviation.
3. AlI kinds of punching dies could be ordered.
4. Hydraulic punching could avoid cutting scraps while punching hole.It is much safer and clearer while operation.
5. Portable unit could be taken to site or fixed in factory for batch punching work.
6. Standard assembling of four dies in 1 0.5,1 3.8,1 7.5,20.5mm supplied with the puncher.
7. one packing box, one fixing spanner and one hexagon spanner assemblied.

Techincal parameters

Model:CH-80
Aperture(mm):Φ16,Φ18,Φ22,Φ25
Output(T):50
Max thickness(mm):Iron sheet Copper Busbar:16mm 20mm
Throat Depth(mm):115
Size(mm):400×260×160
Weight(kg):50

Data Sheet
