High Strong FRP Fiberglass Cable Pulling Rodder /Electric Cable Duct Rod
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Available push pull rodder
3.With cable roller
4.Lightweight and non-conductive
Features of Cobra Snake Continuous Duct Rod
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
- Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
- There is copper wire inside for tracing easily.
- Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
- Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
- Feed device allows rod to feed out or be back with easy push or pull of rod
- Rugged tubular steel reel with adjustable positioning
- Rustproof bull-nose pulling eye for longer conduit run and underground duct
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod
Technical Data
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |

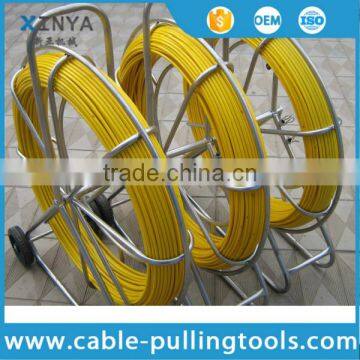

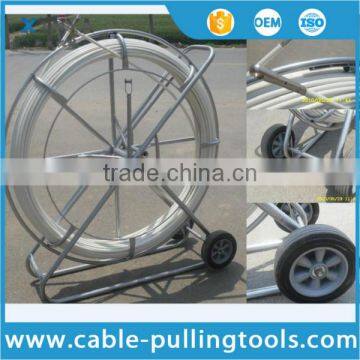

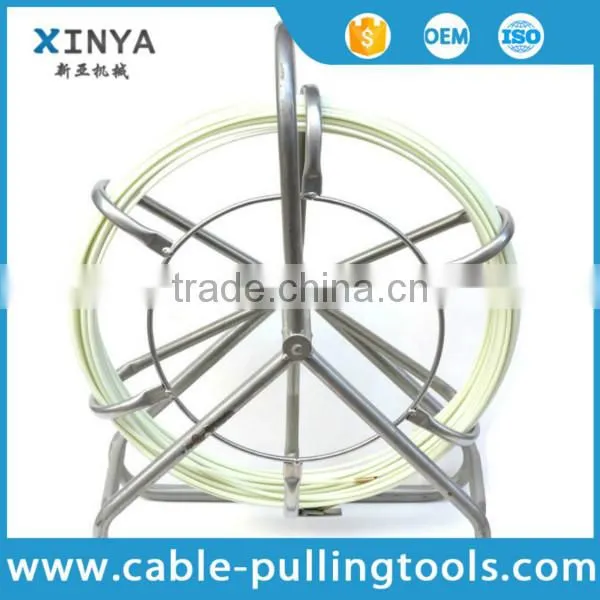

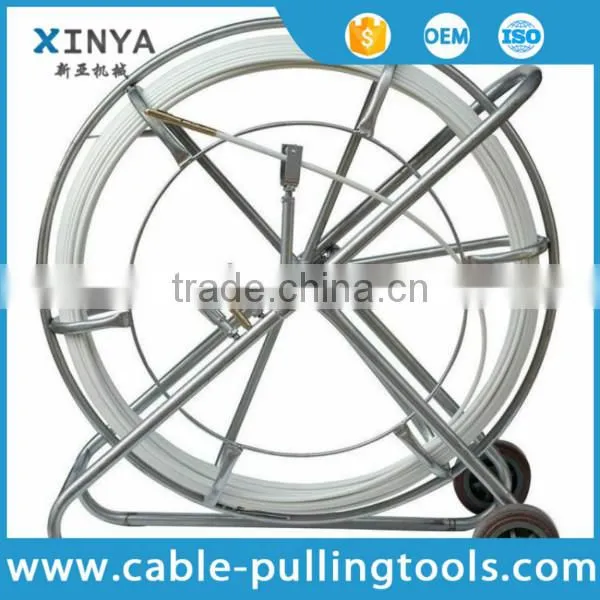

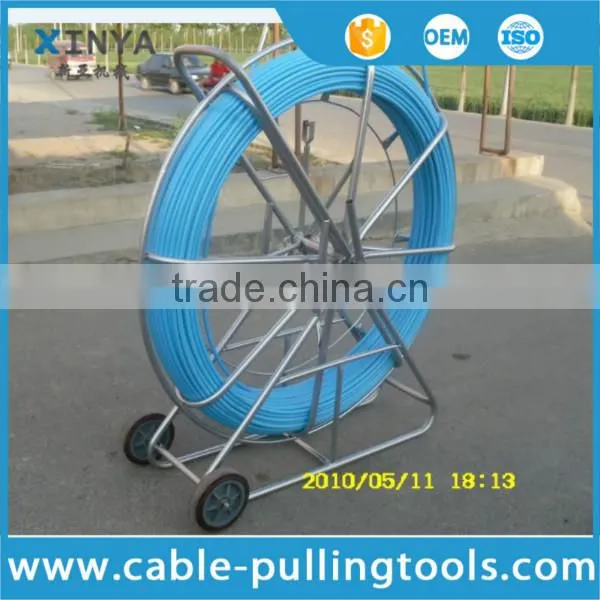

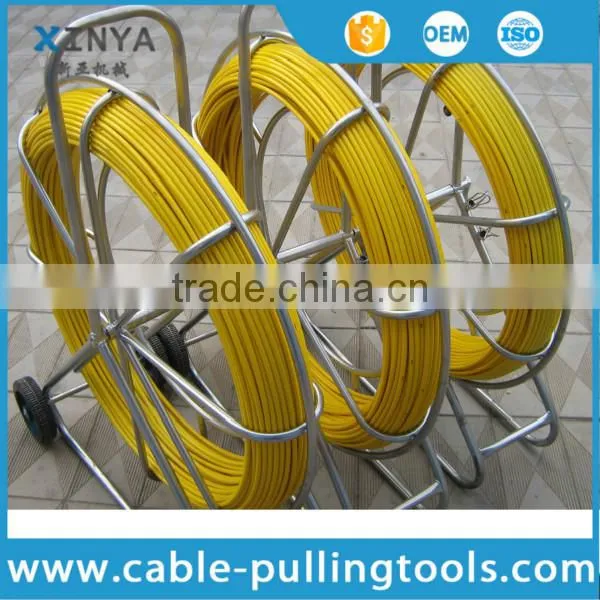

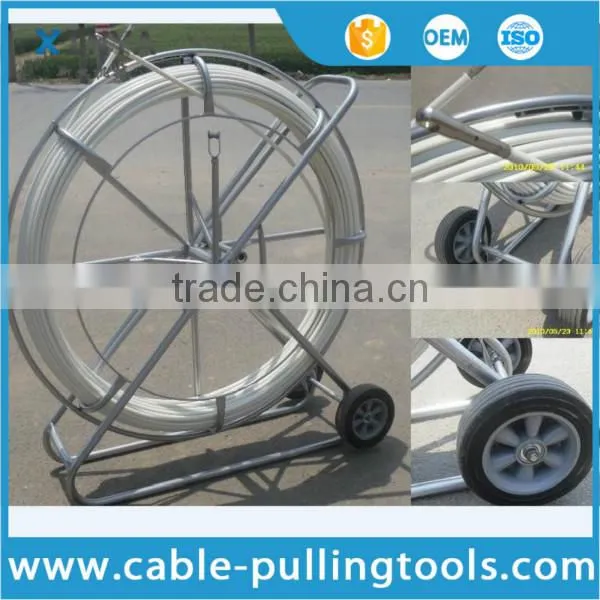

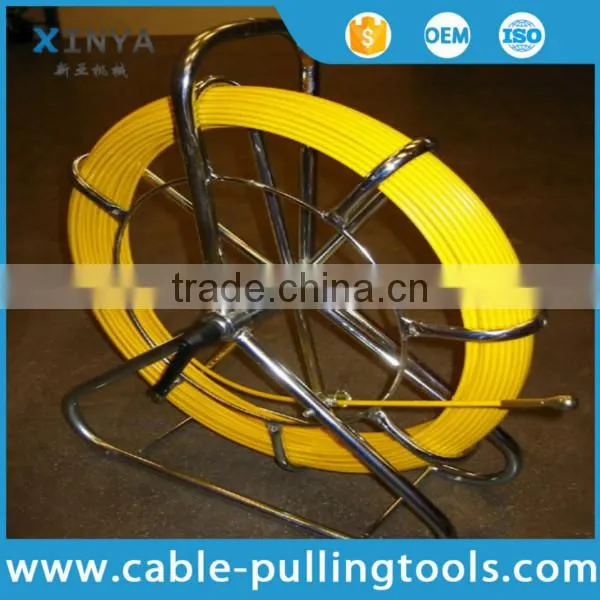

Detailed Images
Contact Information
Please tell us the following information in your enquiry:
1. Dia of duct rod(mm) ?
2. Length of pulling rod(KN) ?
3. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
