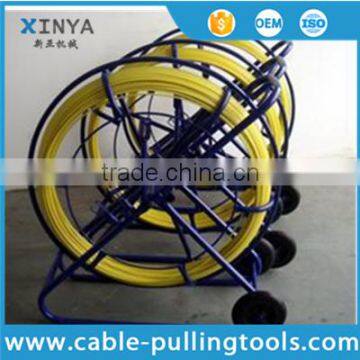

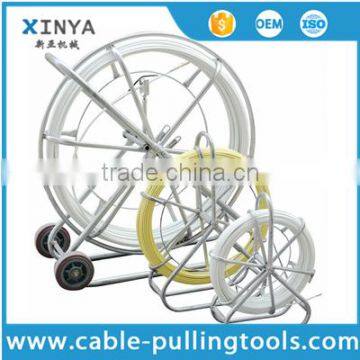

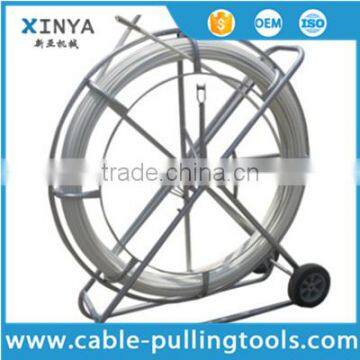

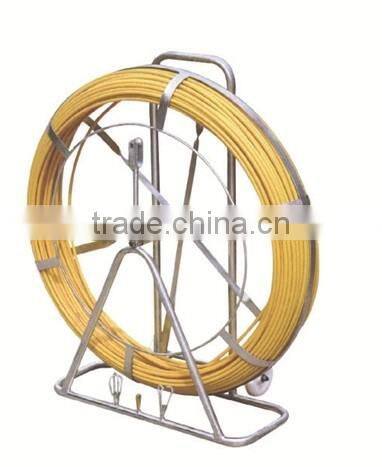

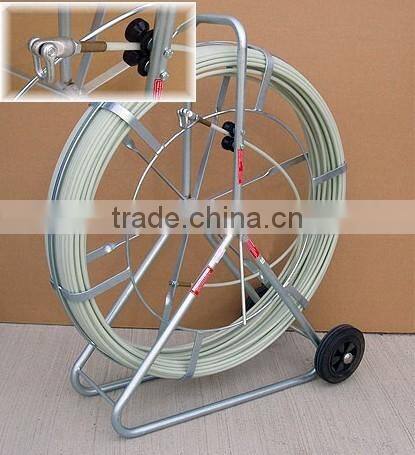

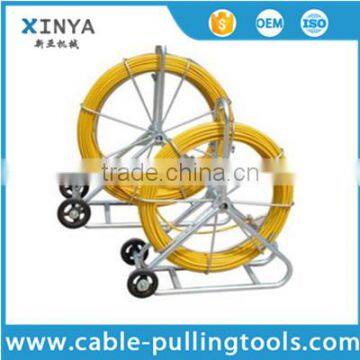

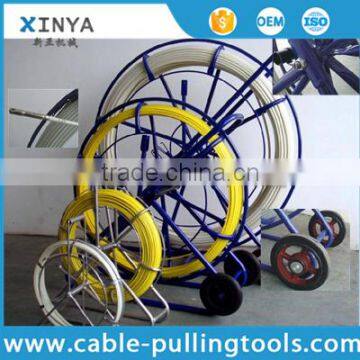

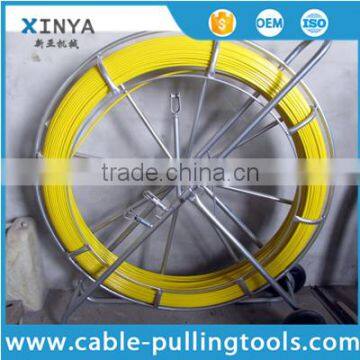

Fiberglass Duct Rod Continuous/Continuous Duct Rodder
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Available push pull rodder
3.With cable roller
4.Lightweight and non-conductive
Features of Fiberglass Duct Rod Continuous/Continuous Duct Rodder
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
- Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
- There is copper wire inside for tracing easily.
- Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
- Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
- Feed device allows rod to feed out or be back with easy push or pull of rod
- Rugged tubular steel reel with adjustable positioning
- Rustproof bull-nose pulling eye for longer conduit run and underground duct
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod
Technical Data of Fiberglass Duct Rod Continuous/Continuous Duct Rodder
Specification |
Rod Diameter (mm) |
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) |
30~500 |
|
Frame Spec.(mm) |
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc |
|
Wheel Diameter(mm) |
300mm |
|
Wall thickness of Metal Frame |
2.2mm |
|
Color |
blue, yellow, red, white etc |
|
Material |
Rod Inner |
Extruded by fiber glass and high strength resin at high temperature |
Rod Outer |
High Density polyethylene coating |
|
Iron Frame |
Steel with high-temperature sprayed plastic or Spray coating |
|
Wheel |
rubber |
|
Brake |
Yes |
|
Drawing head |
copper |
|
Physical Characters |
Density |
55g/m |
Working temperature |
-40°C to +80°C |
|
Breaking tension |
100kg |
|
Bending Radius |
295mm |
|
Technology |
Pultrusion |
|
Packaging |
Inside |
plastic woven strip wind around the frame |
Outside |
Wooden pallet and Wooden box |
Please tell us the following information in your enquiry:
1. Dia of duct rod(mm) ?
2. Length of pulling rod(KN) ?
3. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
,
