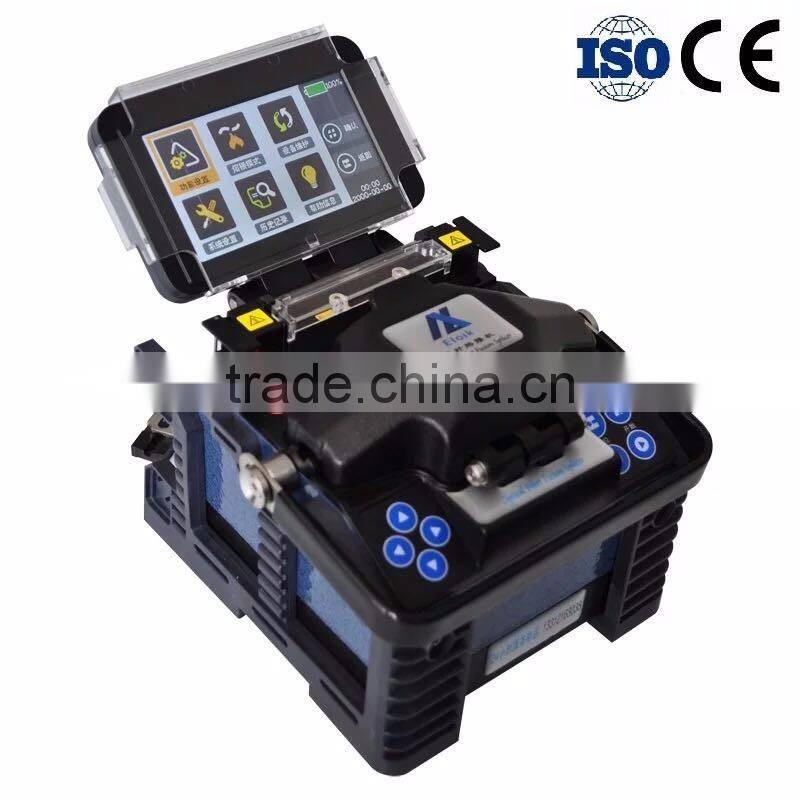

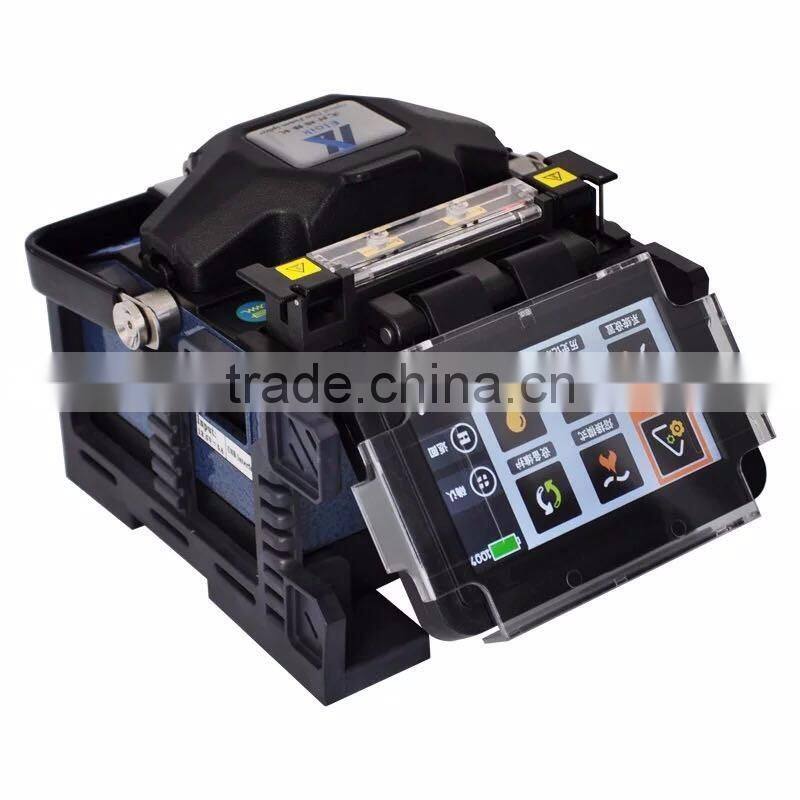

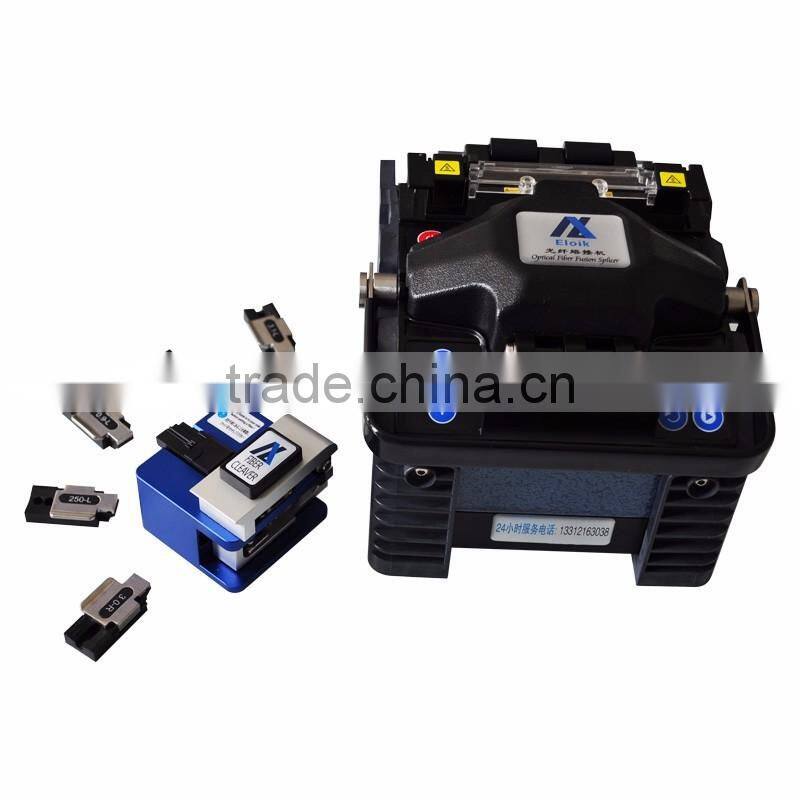

Mini Fiber Optic splicing Machine Eloik ALK-88 - fiber optic machine with fiber optic stripping tool
1.Product introduction
Fusion Splicer ALK-88 (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed
2.Features:
(1)Hardness: The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
(2)Fast: 7s fast splicing , 30s fast heating, support continuous heating , average efficiency improve 2-3times.
(3)Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
(4)Convenience: convenient for maintenance
(5)Six languages: Chinese, English, Russian, Portuguese, French etc.
3. Technology Indexes
Applicable fiber Type |
SM, MM, DS, NZDS |
Applicable fiber Count |
Single |
Applicable diber diameter |
Cladding diameter of 125μm, coating diameter 250~900μm |
Splice Mode |
Stored 40 groups, 80 groups of user-defined |
Average splice loss |
0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
Return Loss |
More than 60dB |
Connecting time |
9sec (typical time) |
Splice loss evaluation |
Have |
Tensile test |
2N |
Screen |
4.3inch color LCD, support Chinese and English display |
Optical magnification |
X/Y:115 times, X,or Y: 230 times |
Power Supply |
11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
Battery |
Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h, can be resued 500 times |
Maximum storage |
5000 set of the latest record storage |
Data interface |
USB2.0 |
Operating environment |
Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, the maximum wind speed 15 m/s |
Storage Conditions |
0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) temperature -10 oC ~30 oC(battery) |
Weight |
1.54kgs (without battery), 1.82kgs(including battery), including attachments packing gross weight:5.38kgs |
Corrosion resistance |
Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion |
Size |
150D X 130W X 126H (mm) |
Packing |
New waterproof, drop, more than can be heavy 300kgs |
4.Package
Standard Package | |||
No. |
Description |
Quantity |
Remark |
1 |
Optical fiber fusion splicer |
1 |
|
2 |
Power Adapter |
1 |
|
3 |
AC power Line |
1 |
|
4 |
Electrodes |
1 |
|
5 |
Cooler |
1 |
|
6 |
Stripper |
1 |
|
7 |
Miller Clamp |
1 |
|
8 |
Blowing Dust Ball with Brush |
1 |
|
