Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.

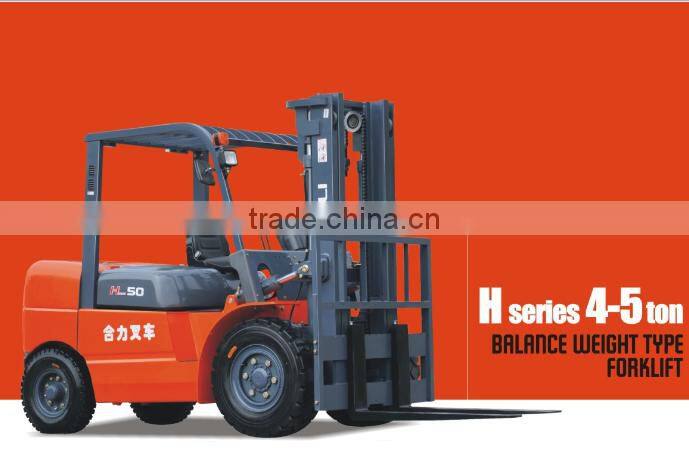

China Top1 Manufacturer Heli Brand H Series 5 ton forklift for sale
| Characteristics | |||||
| 1 | Manufacturer | HELI | HELI | ||
| 2 | Model | CPC50 | CPCD50 | ||
| 3 | Powe type | Diesel | Diesel | ||
| 4 | Load capacity | kg | 5000 | 5000 | |
| 5 | Load center | mm | 500 | 500 | |
| 6 | Operating type | Seated | |||

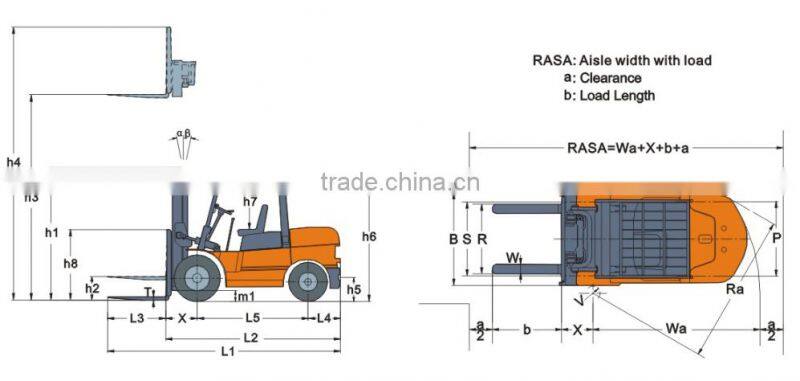

| Dimension Parameter | |||||
| 7 | Overall max.lifting height(with backrest) | h4 | mm | 4250 | |
| 8 | Standard Lifting height | h3 | mm | 3000 | |
| 9 | Height mast retracted(upright) | h1 | mm | 2275 | |
| 10 | Free lift height | h2 | mm | 150 | |
| 11 | Backrest height(from upper face of forks) | h8 | mm | 1250 | |
| 12 | Overhead Guard clearance(from face of seat) | h7 | mm | 1000 | |
| 13 | Overall Height(Overhead guard) | h6 | mm | 2270 | |
| 14 | Overall Length(with forks/without forks) | L1/L2 | mm | 4209/3139 | |
| 15 | Front overhang | X | mm | 555 | |
| 16 | Rear overhang | L4 | mm | 584 | |
| 17 | Wheel Base | L5 | mm | 2000 | |
| 18 | Coupler height | h5 | mm | 300 | |
| 19 | Min.ground clearance under mast | m1 | mm | 175 | |
| 20 | Overall width | B | mm | 1480 | |
| 21 | Lateral Fork Adjustment Outside of fork(Max./Min.) | R | mm | 1340/300 | |
| 22 | Thread(front/rear) | S/P | mm | 2780 | 2800 |
| 23 | Outside turning radius | Wa | mm | 2800 | |
| 24 | Inside turning radius | V | mm | 220 | |
| 25 | Min.intersecting aisle | Ra | mm | 2550 | |
| 26 | Tilting angles(forward/backward) | α/β | 6/12 | ||
| 27 | Fork Dimensions(axbxc) | mm | 1070/150/50 | ||
| Driving Performance | |||||
| 28 | Max. travel speed(loaded/unloaded) | km/h | 25/26 | 18/19 | |
| 29 | Lifting speed(W/WL) | mm/s | 460/520 | 460/480 | |
| 30 | Lowering speed(W/WL) | mm/s | <600/>300 | ||
| 31 | Max.Draw-bar pull(W/WL) | KN | 22/16 | 30/15 | |
| 32 | Max. gradeability (loaded/unloaded) | % | 16/20 | 20/20 | |
| Weight | |||||
| 33 | Service Mass | kg | 7000 | 6700 | |
| 34 | Load Wheel with load(front/rear) | kg | 10200/1800 | 9550/1800 | |
| 35 | Load Wheel without load(front/rear) | kg | 2600/4400 | 2550/4150 | |
| Tyres | |||||
| 36 | Wheel number front/rear(x=driven) | 2X/2 | 2X/2 | ||
| 37 | Tyre Type | Pneumatic | Pneumatic | ||
| 38 | Tyre size(front) | 300-15-22PR | 300-15-22PR | ||
| 39 | Tyre size(rear) | 7.00-12-12PR | 7.00-12-12PR | ||
| 40 | Service Brake | Hydraulic Type | Mechanical type | ||
| 41 | Parking Brake | Mechanical type | |||
| Drive | |||||
| 42 | Battery(Voltage/Capacity) | V/Ah | 12/100 | 24/80 | |
| 43 | Engine Model | Mitsubishi S6S-230 | Xichai | ||
| 44 | Engine Fuel | Diesel | |||
| 45 | Engine Rated Output | kW/rpm | 52/2300 | 61/2200 | |
| 46 | Engine Rated Torque | Nm/rpm | 248/1700 | 305/1400-1600 | |
| 47 | Engine Number of Cylinder | ||||
| 48 | Engine displacement | L | 4.966 | 4.75 | |
| 49 | Fuel Tank Capacity | L | 90 | 90 | |
| 50 | Transmission type | Hydraulic Type | Mechanical type | ||
| 51 | Transmission Number of Speed Fwd/Bwd | 2-1Electro-hydraulic | 2-2Mechanical-hand | ||
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
