One Way Bearing CSK15 Clutch Bearing

One Way Bearing CSK15 Clutch Bearing thumbnail-1
One Way Bearing CSK15 Clutch Bearing photo-1
US$ 0.09 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TXIND
Bore Size:
8, 40
Outside Diameter:
9, 22
Contact Supplier Request Quote Chat Now
Tianjin Century Ruixin Transmission Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TXIND
Bore Size 8, 40
Outside Diameter 9, 22
Model Number CSK15
Precision Rating P2/P5/P6
Seals Type sealed, Separated type one way clutch bearing
Number of Row Single Row
Place of Origin Shandong, China

Printing machine spare parts CSK15 fishing reel one way clutch bearing/ One way bearing

Specification:

The CSK series freewheel include CSK CSK…P CSK..PP type. CSK…P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race, The type of CSK…PP clutches have a keyway on both inner race and outer race.

The CSK series one way cluth bearings have be used widely in washing machine, grass cutter, printing machine, textile machinery and food machinery etc.



P....ONE KEYWAY
PP...TWO KAYWAYS



One-way bearing features:



High carrying capacity



Enough storage grease space



High limited speed



Long life



One-way bearing application:



One-way bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry; Household appliances; Currency detector, etc







One-way bearing types:



We may produce many kinds of one-way bearing including: HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF, DZ, CKA, CKZ, MG, ASNU, UHF, GC, CKH, PB, CKY, CKF, NYD, CKS and so on.



Printing machine spare parts CSK15 fishing reel one way clutch bearing / One way bearing Product show:

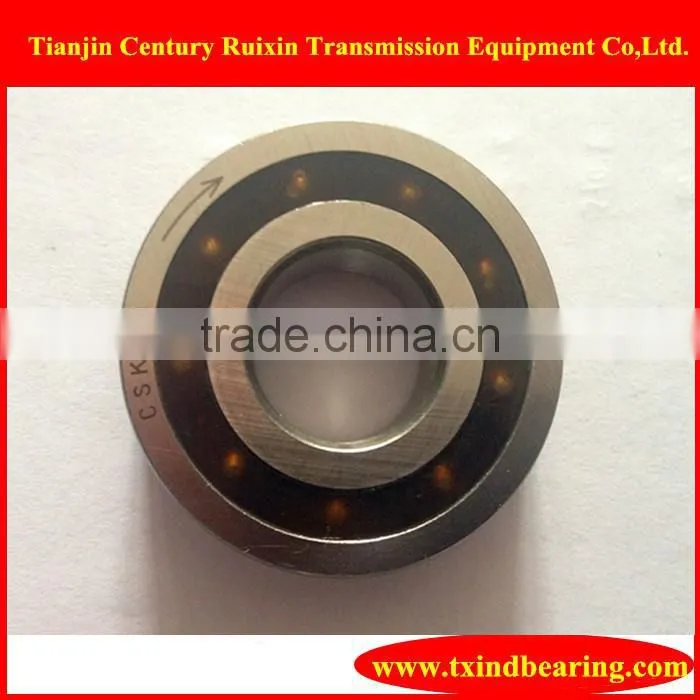

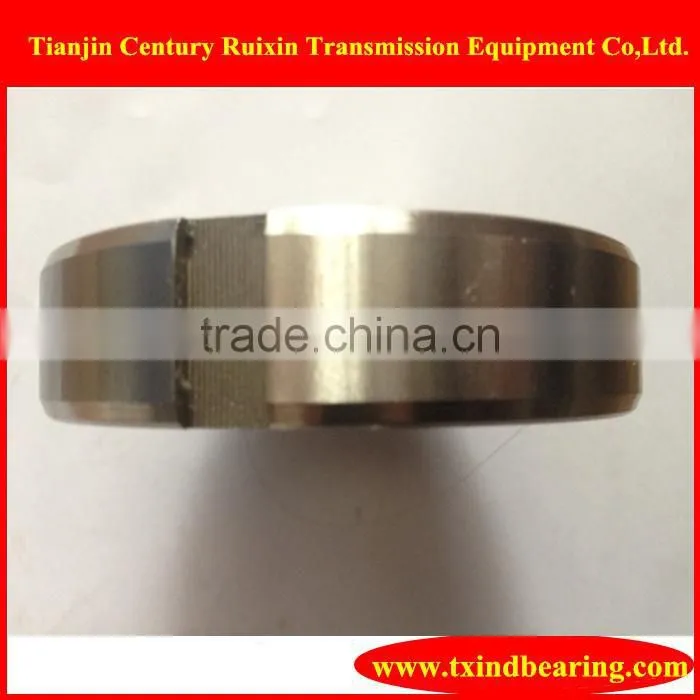

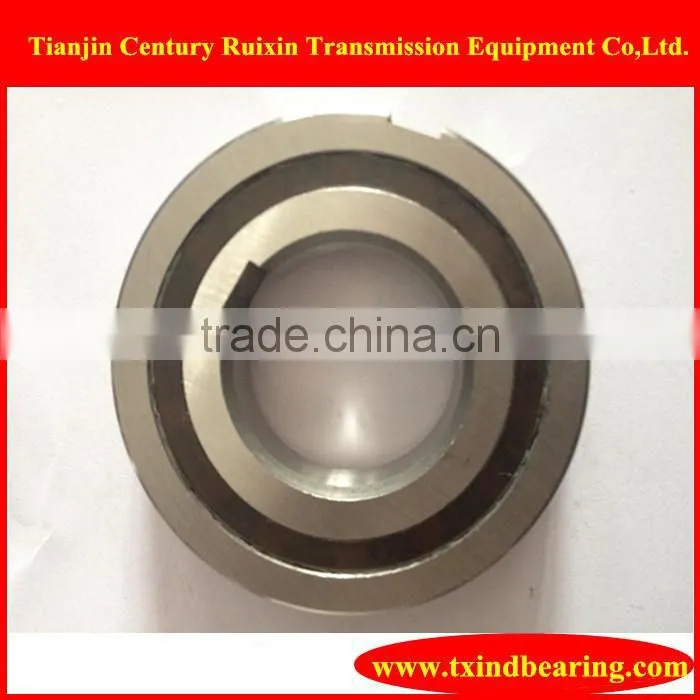

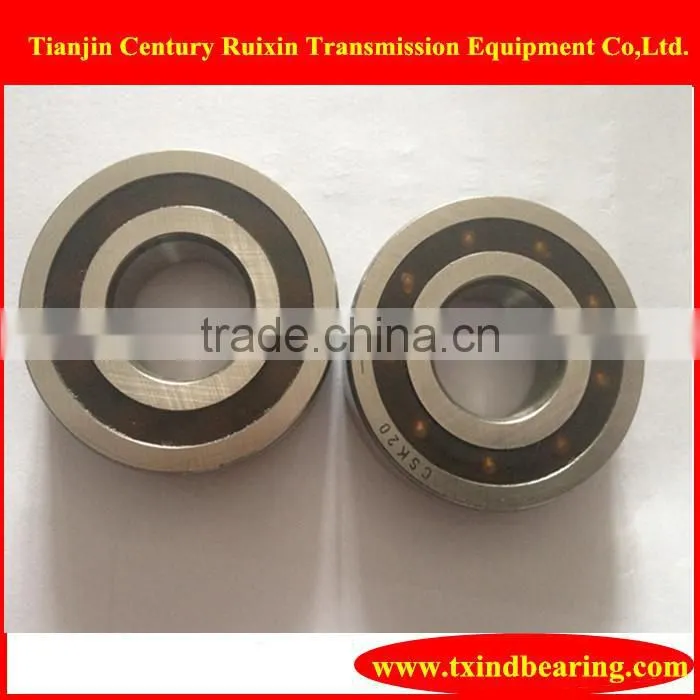

One way bearing CSK15 clutch bearing

One way bearing CSK15 clutch bearing

One way bearing CSK15 clutch bearingOne way bearing CSK15 clutch bearing

Printing machine spare parts CSK Type fishing reel one way clutch bearing main mode no:

One way bearing CSK15 clutch bearing





Model
Bore
Width
O. D.
Torque
Max.
Bearing Loads
Single
dH7
B
Dh5
lb. ft.
Overrunning
Weight
in./mm
in./mm
in./mm

Speed
Dynamic
Static
kg

RPM
lb.
lb.

CSK 8
.31 / 8
.35 / 9
.87 / 22
3
15,000
738
193.5
0.015
CSK 12
.47 / 12
.39 / 10
1.26 / 32
11
10,000
1372.5
623.25
0.050
CSK 15
.59 / 15
.43 / 11
1.38 / 35
20
8,400
1665
769.5
0.060
CSK 17
.67 / 17
.47 / 12
1.57 / 40
36
7,350
1777.5
855
0.070
CSK 20
.79 / 20
.55 / 14
1.85 / 47
59
6,000
2115
1003.5
0.110
CSK 25
.98 / 25
.59 / 15
2.05 / 52
100
5,200
2407.5
1228.5
0.140
CSK 30
1.18 / 30
.63 / 16
2.44 / 62
162
4,200
2632.5
1451.25
0.220
CSK 35
1.38 / 35
.67 / 17
2.83 / 72
207
3,600
2835
1638
0.330
CSK 40
1.57 / 40
.87 / 22
3.15 / 80
384
3,000
3496.5
2756
0.500





Printing machine spare parts CSK20PP fishing reel one way



clutch bearing packing:



1.Tube packing+carton+Wooden pallets
2.Plastic bag+Small box(Single)carton+Wooden pallets
3.According to customer requirement
