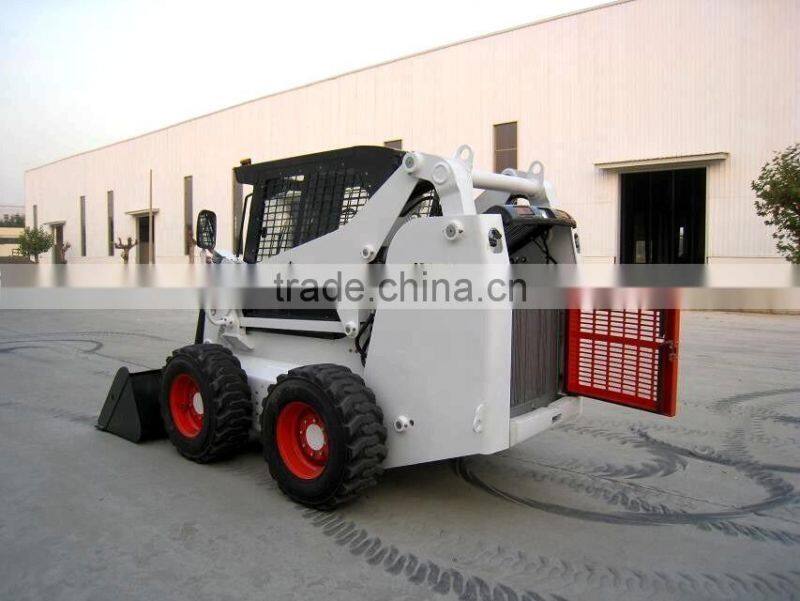

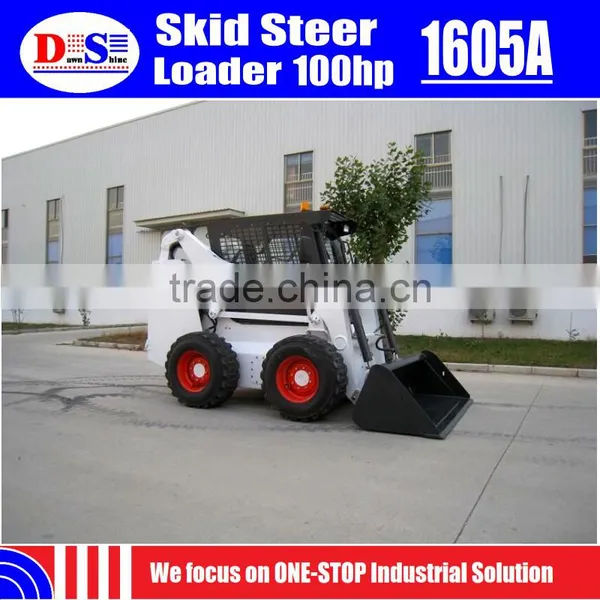

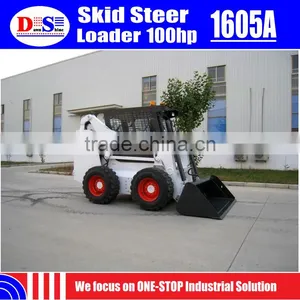

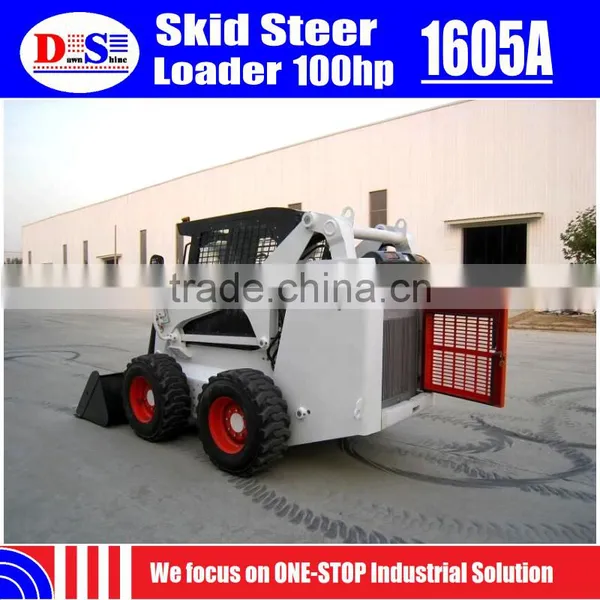

Hydraulic Joystick Skid Steer Loader 1605A WECAN Skid Steer Tires 12x16.5
Good performance with comfortable control
Hydraulic joystick
Turn within its own length
Turn within its own length

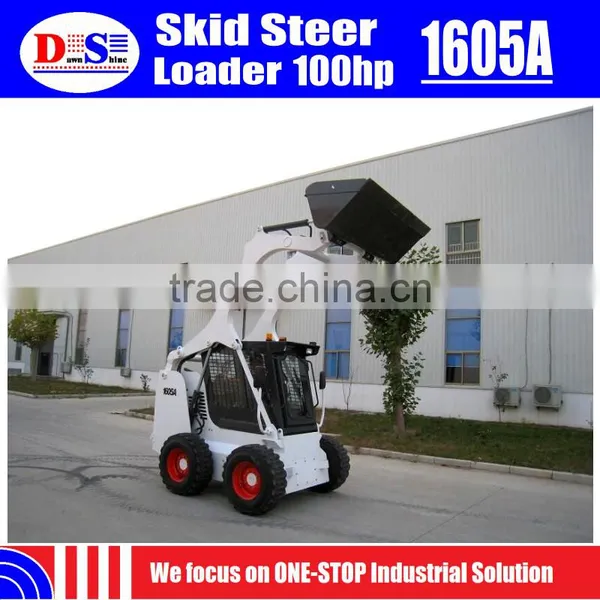

Vertical lifting type and 2540mm discharging height make perfect loader
Attachment can be used with bobcat type skid steer loader

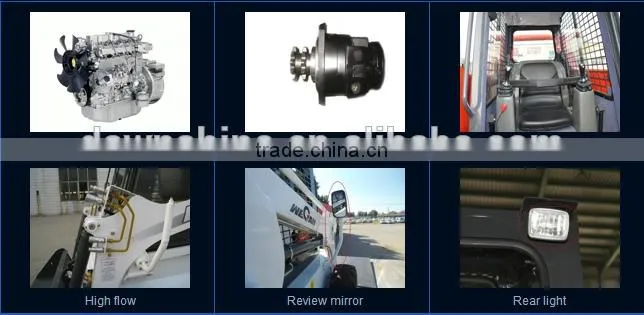

World famous parts from German (Rexroth pump, double speed motor, right-left operating joystick)
World famous parts from America (America electromagnetic valve, hydraulic balance valve, bearing and three stage air filter)
EUROIII UK Perkins engine
Multifunctional, maneuverable and reliable
| General | ||
| Model | 1605A | |
| Rated capacity | kg | 1600 |
| Rated flow | L/min | 88 |
| High flow | L/min | 158 |
| Discharge height | mm | 2540 |
| Discharge distance | mm | 850 |
| Power type | Diesel | |
| Control type: | Hydraulic joystick | |
| Dimensions | ||
| Overall length with bucket | mm | 3666 |
| Overall length without bucket | mm | 2878 |
| Overall width with bucket | mm | 1980 |
| Overall width without bucket | mm | 1864 |
| Overall height | mm | 2080 |
| Max. operating height | mm | 4234 |
| Front turning radius | mm | 2200 |
| Front turning radius without attachments | mm | 1540 |
| Rear turning radius | mm | 1710 |
| Wheel base | mm | 1218 |
| Tread | mm | 1530 |
| Performance | ||
| Max. Speed | km/h | 10.2/20.4 |
| Max. load | kg | 3200 |
| Lifting type | Vertical | |
| Bucket capacity | M3 | 0.55 |
| Total weight with bucket | kg | 4260 |
| Engine | ||
| Engine model | Perkins 1104D-44T | |
| Power | kw | 74.5 |
| Rated speed | rpm | 2200 |
| Displacement | L | 4.4 |
| No. of cylinder | 4 | |
| Tire | ||
| Tubeless tire | 12-16.5 | |

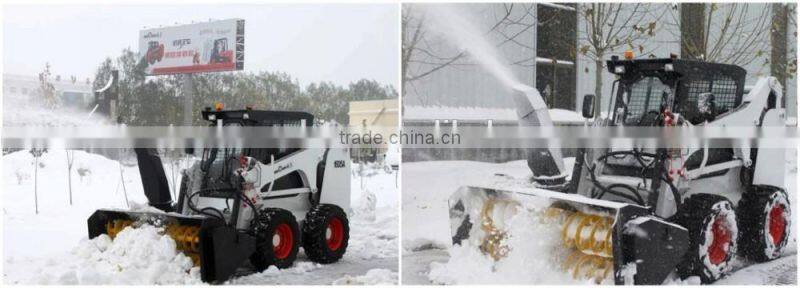

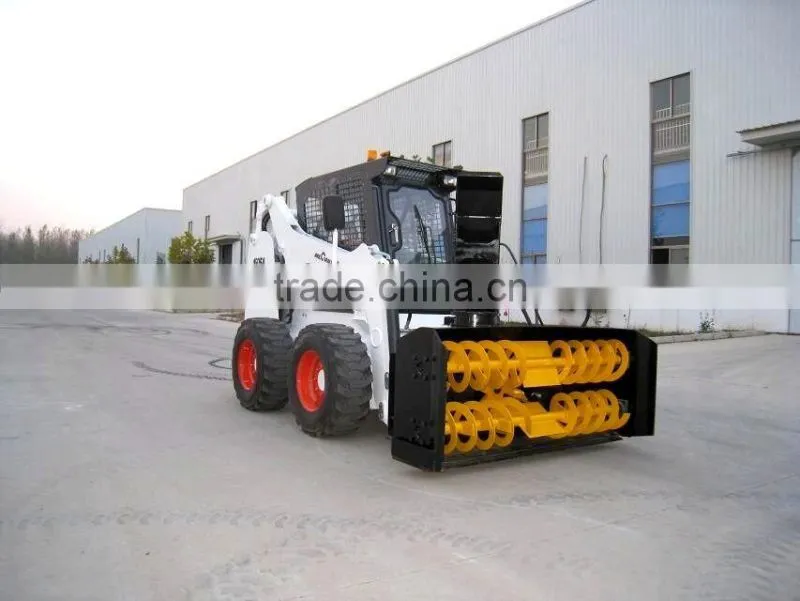

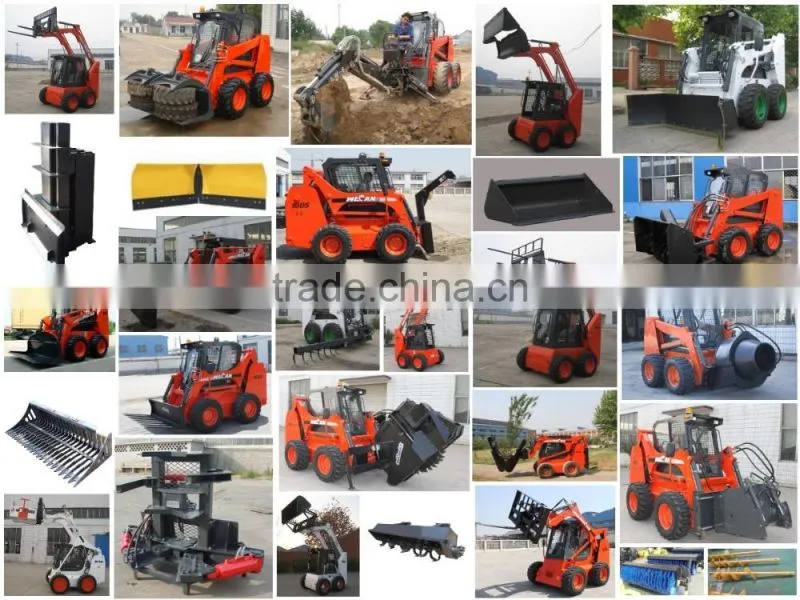

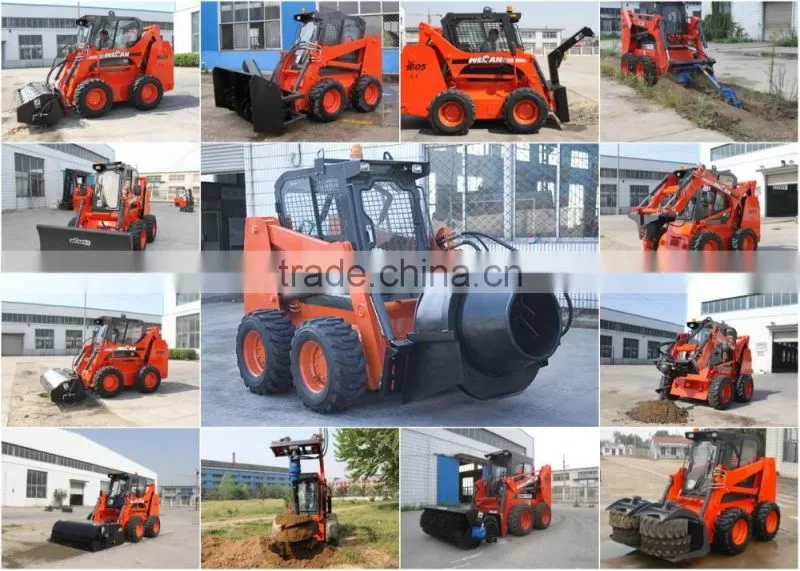

More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.
