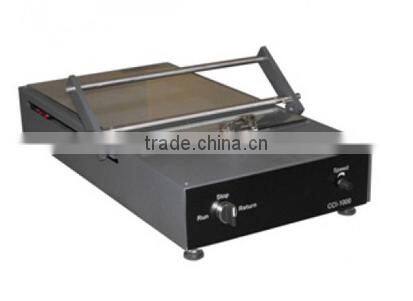

AFA-IV Compact Coating Machine

Model:

AFA-IV Compact Coating Machine

Brief

Introduction:

AFA-IV Compact Coating Machine is a new lab. Instrument developing in recent years. It is a innovation of organic combination between the electrical control and mechanical control, It save a lot of materials in the coating manufacturing field, change the productive technology; The key is vastly enhancing the coating repeatability basic on the researching.
The function of the lab. Coater is precision coating on the different substrate,decrease or eliminate the errors cause by the coating speed , different pressure and other personal factors.
It is mainly used for testing or manufacturing glue, paper, thin film, also can be used coating on the others related materials, coating industry.

Main Feature:

AFA-IV Compact Coating Machine is on the basis of the mini coating requirement, well-designed, running reliable, easy to operate.
It's basic coating principle:coating system is mainly consist of speed adjustable motor, import lead screw, import sliding roller, hand shank, import wire bar, etc. To adjust the coating thickness through changing the wire bar, speed adjustable button to set the coating speed, coat uniformly.

Technical

Parameter:

Main material: Stainless steel
Coating speed: 0-120 cm/min
Coating area: 35cm(width), 42cm(length)

Coating thickness: 1. 2um-170um(decide by coating thickness of the specialized wire bar)

                             2. Can customize the thickness adjustable coater, Min. thickness:5um, The accuracy adjustable: 1um;

Coating bar specification: 1.2cm diameter and 40cm(length)

Main motor usage power supply: 220V/50Hz

Main motor power: 50W

Specification:

Size: 580×340×100 mm

Weight: 20KG

Optional

Accessories :

Can customize the thickness adjustable coater, Min. thickness: 5um, The accuracy adjustable: 1um;

Can selective buy the specialized coating roller:  thickness:5 um-170um
