Help CenterMSK-AFA-E300-UL Roll to Roll Battery Electrode Coating System (Max. 250mm Width) With Drying Oven
Related Products
-
Scientz-30N/50N In-situ Freeze Drying MachineUS$ 99 - 999MOQ: 1 Set -
0.8mm Measuring Span Lever Indicator, MetricUS$ 999 - 9,999MOQ: 1 Set
-
Scientz-04 Laboratory Paddle BlendersUS$ 999 - 9,999MOQ: 1 Set
-
Scientz-09l Laboraory Padle BlendersUS$ 999 - 9,999MOQ: 1 Set
-
0.008in Measuring Span Lever Indicator, InchUS$ 9 - 999MOQ: 1 Set

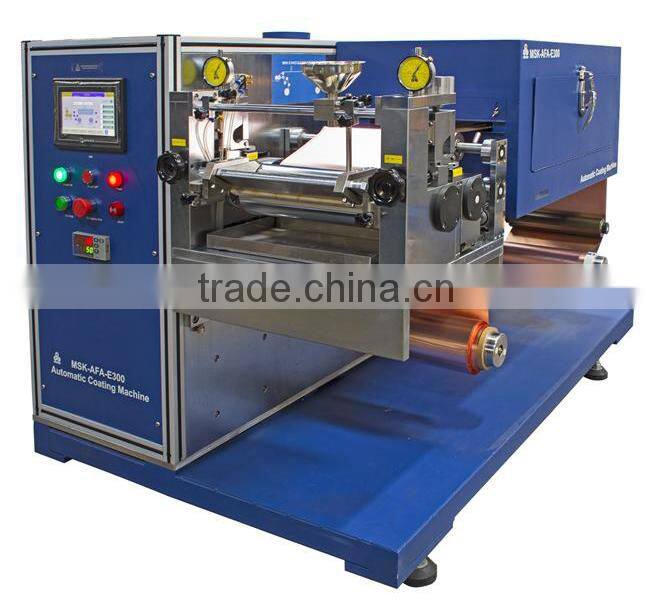

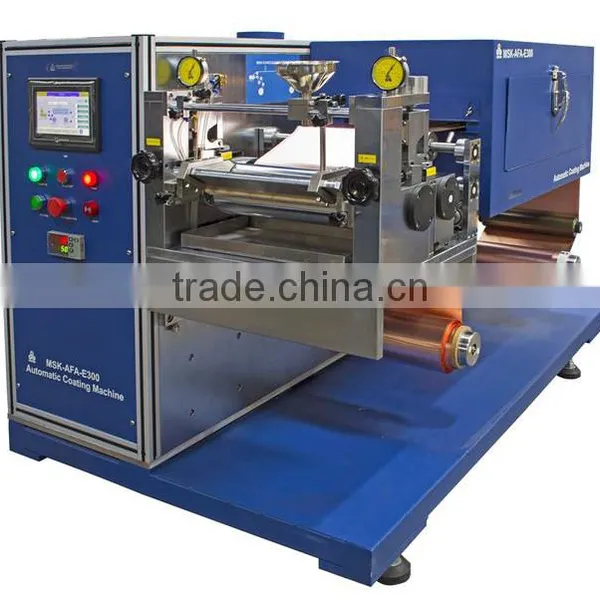

MSK-AFA-E300-UL is a CE Certified and UL inspection ready automatic battery electrode coating system with a compact footprint that is less than 6'x3'. It is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience.
( Note: MSK-AFA-E300-UL is updated from MSK-AFA-E300 with all UL certified electric parts from June 1, 2014 , whcih is ready to pass UL or TUV test at extra cost )
SPECIFICATIONS:
Working Voltage |
|
Max. Power Consumption |
3 KW ( 30A Air breaker required ) |
Max. Coating Width |
250mm |
Coating Speed |
0-750 mm / minute |
Thickness Precision |
± 3µm (± 5µm at edges) |
Max. Drying Temperature |
150°C |
Temperature Accuracy |
±1°C |
Heating Zone Length |
710mm (28") |
Reeling/Unreeling Shaft |
75mm (ID) |
Max. Reeling/Unreeling Diameter |
250mm (OD) |
Max. Coating Length |
|
Slurry Stirring |
SS316 Moving Rod |
Compressed Air |
0.5-0.8 MPa (Air compressor not included. Please click here to order) |
Optional |
You may order Dual-Filtration System for NMP Vapor and coonect it to the coating system for keeping enviromental healthy.
|
Product Dimensions |
1750mm ( L) x 950mm (W) x 1060mm (H) |
Compliance |
|
Warranty |
|
| Operation Manual & Video | |
| Application Notes |
|
| Net Weight | 900 kg (2000 lbs) |
| Shipping Dimension | 70" x 45" x 55" |
