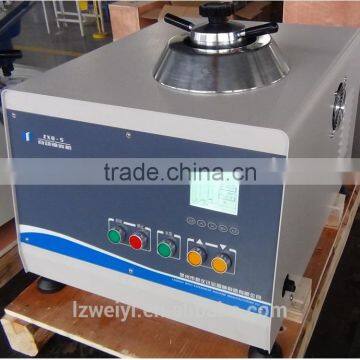

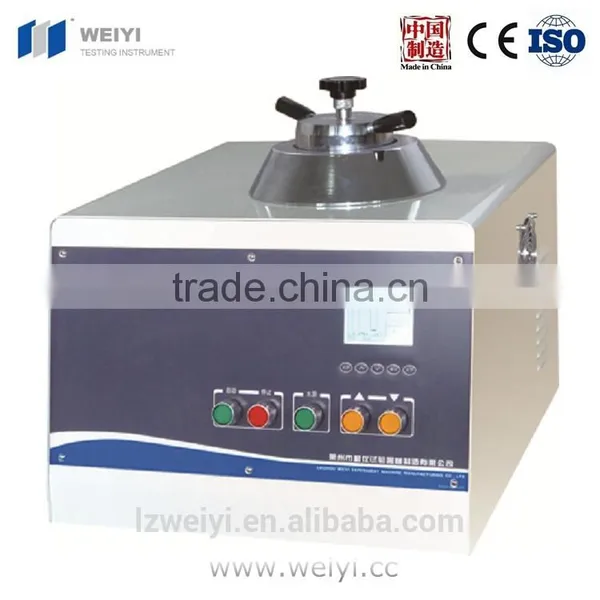

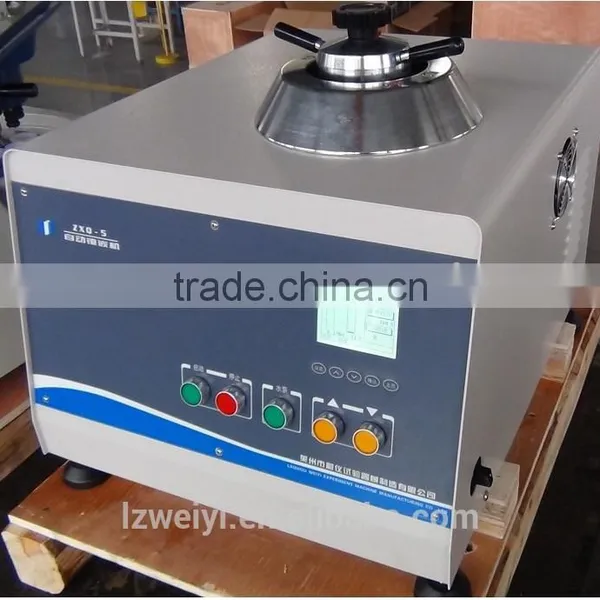

ZXQ-5 Automatic Metallographic Sample Mounting Equipment
Description
This machine is used for setting up those irregular specimens.Then the specimens can fix in with the request of the surface.It also can protect the edge and keep out of the abrasion .The specimen size is limited by the Semi-automatic or Automatic Grinder/Polisher.With this view ,this machine is one of the necessary equipments in the metallographic lab.
The machine is automatic mounting press for metallographic specimen.It is fit of all thermosetting materials because of the cooling system .It can finish automatically with the heating temperature,the holding time, and acting force.The operator can change 4 specification patterns according to the difficult specimens.It can make 2 specimens at one time.
Table
Thermosetting materials | Diameter of specimen | Volume of inserted powder | Heating temperature | Temperature holding time | Time for cooling | Pressure |
Urea formal degde moulding powder (white) | φ25 | 10ml | 150℃ | 10min | 15min | 300-1000kpa |
φ30 | 20ml | 150℃ | 10min | 15min | 350-1200kpa | |
φ40 | 30ml | 150℃ | 10min | 15min | 400-1500kpa | |
φ50 | 40ml | 150℃ | 10min | 15min | 500-2000kpa | |
Insulating moulding powder (black) | φ25 | 10ml | 135-150℃ | 8min | 15min | 300-1000kpa |
φ30 | 20ml | 135-150℃ | 8min | 15min | 350-1200kpa | |
φ40 | 30ml | 135-150℃ | 8min | 15min | 400-1500kpa | |
φ50 | 40ml | 135-150℃ | 8min | 15min | 500-2000kpa |
Technology Parameter
| Model | ZXQ-5 |
| Sample diameter | Φ22,30,40,50 mm |
| Thermoforming ranges | 90-190℃ |
| System pressure range | 0-2Mpa |
| Cooling temperature range | 40-90℃ |
| Holding time range | 100-2999s |
| Cooling mode | cooling |
| heating power | 1600W |
| Input voltage | 220V/50HZ |
| Dimension | 700mm x550mm x515mm |
| Net weight | 110kg |
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: Q-80Z DTQ-5 LDQ-350A IQIEGE 60S GTQ-5000B
Enter to Related website on Alibaba by Clicking product photo
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
