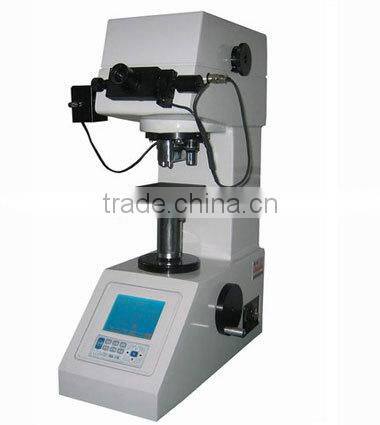

Help CenterDigital Display Vickers Rohardness Tester
Related Products
-
HVS-1000 Digital Displar Microhardness TesterNegotiableMOQ: 2 Sets -
Digital Display Vickers Rohardness TesterNegotiableMOQ: 2 Sets
-
HV-1000B Microhardness TesterNegotiableMOQ: 2 Sets
-
HV-1000A Microhardness TesterNegotiableMOQ: 2 Sets
-
HBMT-3000A Gate Type On-line Automatic Brinell Hardness TesterNegotiableMOQ: 2 Sets
Specifications
200HVS-5 DIGITAL DISPLAY VICKERSMeasuring range: 5-3000HV
Test force: 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N
(0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5kgf)
Hardness scale: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5
Measuring accuracy of micrometer: ±0.01μm
Test force dwelling time: 0~99 seconds
Optical system:
Objective lens: 10X (for observation), 40X (for measurement)
Ocular lens: 12.5X
Total magnification: 125X (for observation), 500X (for measurement)
Max. Height of specimen: 130mm
Depth of throat: 110mm
Size of XY coordinate worktable: 100×100mm
Travel of XY coordinate worktable: 25×25mm
Resolution of XY coordinate worktable: 0.01um
Optical source: 12V/20W
Language: Chinese/English
Power supply: 220V/110V, 50Hz/60Hz
Power consumption: ≤50W
Overall dimensions: 486×337×657mm
Weight: 68 kg
