EQ-SPC-1 Compact Precision Screen Printing Film Coater

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

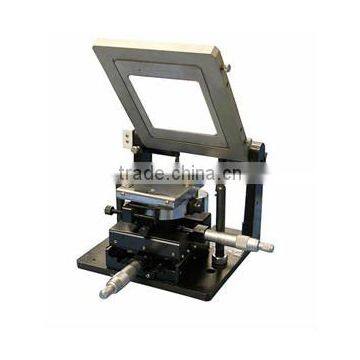

EQ-SPC-1 Compact Precision Screen Printing Film Coater thumbnail-1

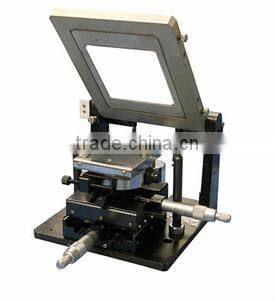

EQ-SPC-1 Compact Precision Screen Printing Film Coater photo-1
US$ 9 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WEIYI
Model Number:
EQ-SPC-1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name WEIYI
Model Number EQ-SPC-1
Condition New
After-sales Service Provided No overseas service provided
Product Description







EQ-SPC-1 Compact Precision Screen Printing Film Coater

SPC-1 is a manually operated precision screen printing film & circuit coater.  The coater has Max. 70 x 50 mm  printing area with precision position adjustable at three dimension and vacuum chunk to load and unload substrate esaily.  It is a ideal tool to make patten film in research Lab.

Specifications:

Working Voltage
Single Phase 220V, 50/60Hz
(For operations under 110V, please order a 500W transformer.)
Sample holder

  • Sample is held by built in vacuum chuck.

  •  One small Vacuum Pump is included for immediate use ( click picture below right to see specs )



Position adjustment & accuracy		X:   20 mm +/- 0.01 mmY:   20 mm +/- 0.01 mmZ:   3 mm   +/- 0.05 mmThe position can be adjusted by three micrometers.
Screen Frame adjusting±10º adjustable
Substrate HolderVacuum chunk, 100mm x 80mm
Frame size & Silk-screen Stencil
Top Frame -- Outside: 180×130 (mm), inside:156×106(mm)Bottom Frame -- Outside:  125×108 (mm), inside: 105×88(mm)Middle Screen -- Outside:  180×130(mm), inside: 126×109(mm)

Note: MTI doesn't supply the custom made silk-screen stencils. Customer may source them from other suppliers.

Application Notes

  • You can insert your own screen into middle frame to quick exchange screen stencil

  • One squeegee is included to apply printable material




Operation Instruction

Dimension300x 240x 170, mm ( close frame )300x 240x 330, mm ( open Frame )
Weight11 kg Net20 kg Shipping







More Lab Equipment

EQ-SPC-1 Compact Precision Screen Printing Film Coater

Model: MoPao 3S                      MP-1B                      MP-2B                     BG-32                    MPJ-1A

Enter to Related website on Alibaba by Clicking model details

EQ-SPC-1 Compact Precision Screen Printing Film Coater

Model:  Q-80Z                       DTQ-5                      LDQ-350A                   IQIEGE 60S               GTQ-5000B

Enter to Related website on Alibaba by Clicking model details

EQ-SPC-1 Compact Precision Screen Printing Film Coater

Model: ZXQ-5                        ZXQ-1                       XQ-2B

Enter to Related website on Alibaba by Clicking model details

Packaging & Shipping

EQ-SPC-1 Compact Precision Screen Printing Film Coater

Company Information

Brief Introduction

Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .

In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
