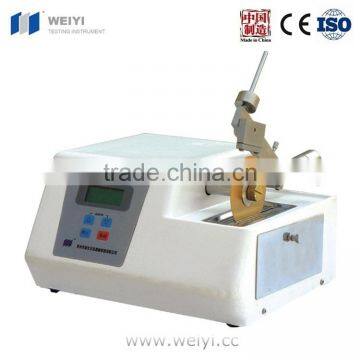

DTQ-5 cut off machine
Application
DTQ-5 low-speed precision cutter is applicable to accurate cutting of hard materials, especially to high-value fragile artificial crystal.

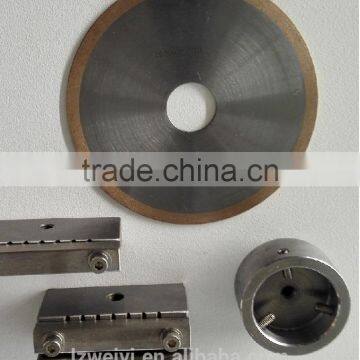

There are four kinds of fixtures, so the processed workpiece can be cut at the optimal angle. The machine, with a limit switch, can work without a watchman. The spindle has high accuracy of operation, the horizontal feed position of the processed workpiece can slightly be adjusted, and the machine can be power-off automatically after cutting is finished.
Technical Parameters
| Model | DTQ-5 |
| Input voltage | 220V/110V |
| Max moving travel | 25mm |
| Positioning accuracy | 0.01mm |
| Wheel speed | 10-600r/min |

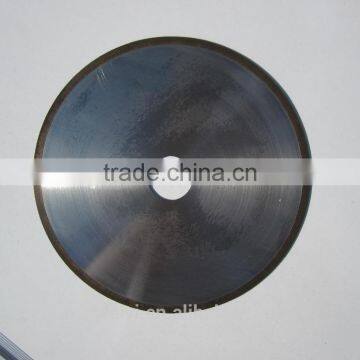

| Cutting wheel size | Φ100mm x0.5mm x20mm |
| MAX cutting section | 30mmx30mm |
| Motor | 80W |
| Dimension | 350mm x305mm x205mm |
| Net weight | 18.5kg |
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: ZXQ-5 ZXQ-1 XQ-2B
Enter to Related website on Alibaba by Clicking product photo
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
