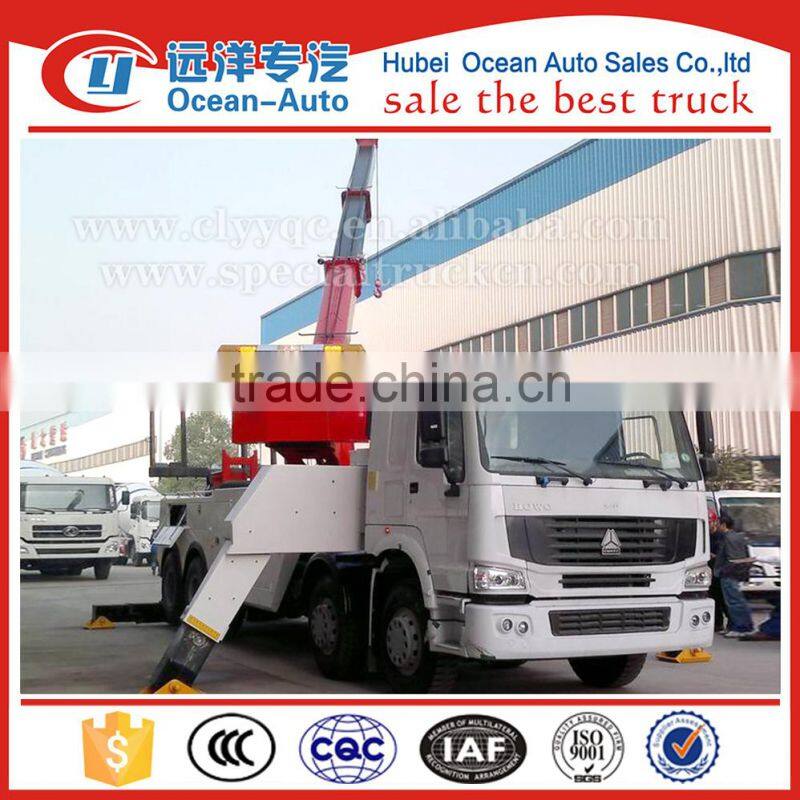

Chassis model

HOWO ZZ1317N4668W

Truck upper part form

           30DZ3+16T+40ZT1

Empty load(Kg)

Curb weight

24770

Front double shaft

12000

Rear double shaft

12770

Full load(Kg)

Max gross weight(two people included)

31000

Front double shaft

5700

Rear double shaft

25300

Overall dimension(mm)

Length

10960

Width

2500

Height

3270,3470( warning light installed)

Wheelbase(mm)

1800+4600+1350

Transmission

10 forward gear,1 reverse gear

Cab description

HW76 medium, luxurious interior trim with seats and air condition

Wheel tread(Front/Rear)(mm)

2022/2022; 2041/2041

Front/Rear hang(mm)

1500/1710

Rear distance(mm)

3150

Approach/departure angle(°)

16/13

Drive type

8×4

Tyre spec.

12.00-20

Max speed(Km/h)

90

Max grade ability(%)

30

Minimum turning diameter(m)

27.5

Minimum ground clearance(mm)

310

Engine

Model

WD615.96E

Power(kW/r/min)

276/2200

Torque(N·m/r/min)

1350/1100-1600

Oil consumption per 100Km(L)

less than 32

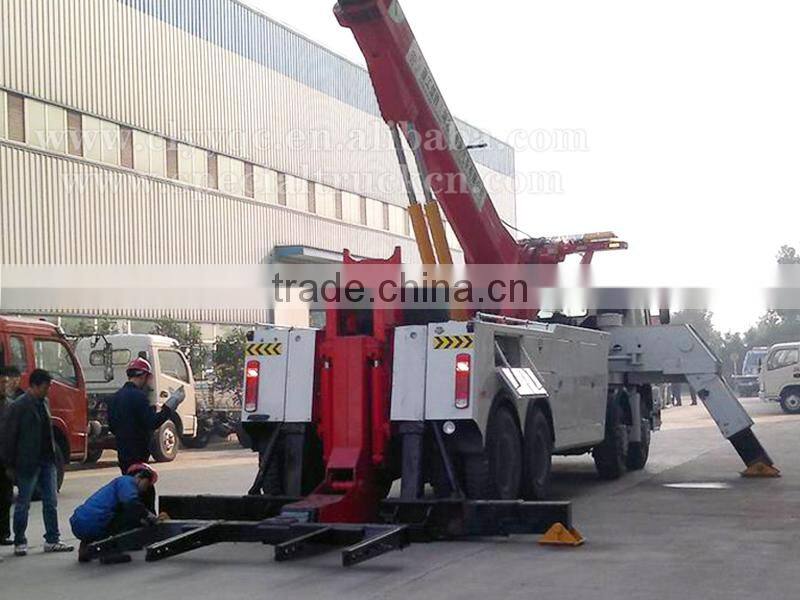

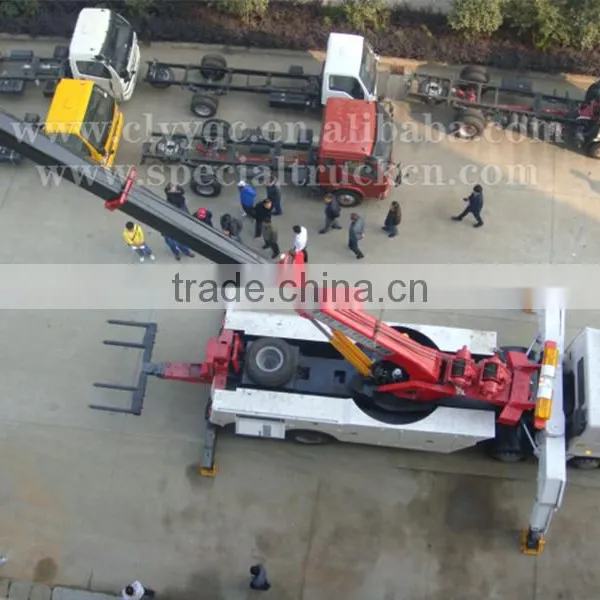

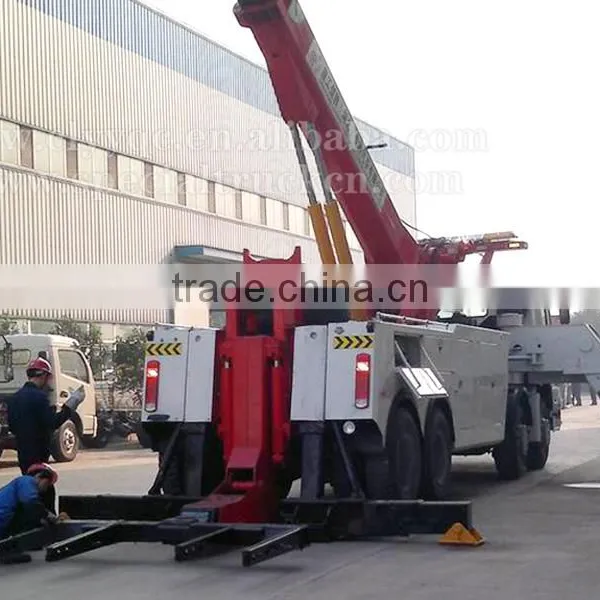

Lifting system

Max lifting weight(Kg)

16000

Fully extended max lifting capacity(kg)

6100(9500)

Effective lifting length(mm)

1575 to 3214

Bracket arm flexible stroke(mm)

1639

Inclination angle under the lifting arm(⁰)

-10

Folding angle(⁰)

-10 to 93

Maximum distance from the ground of upper surface of full retracted cross arm(mm)

more than 900

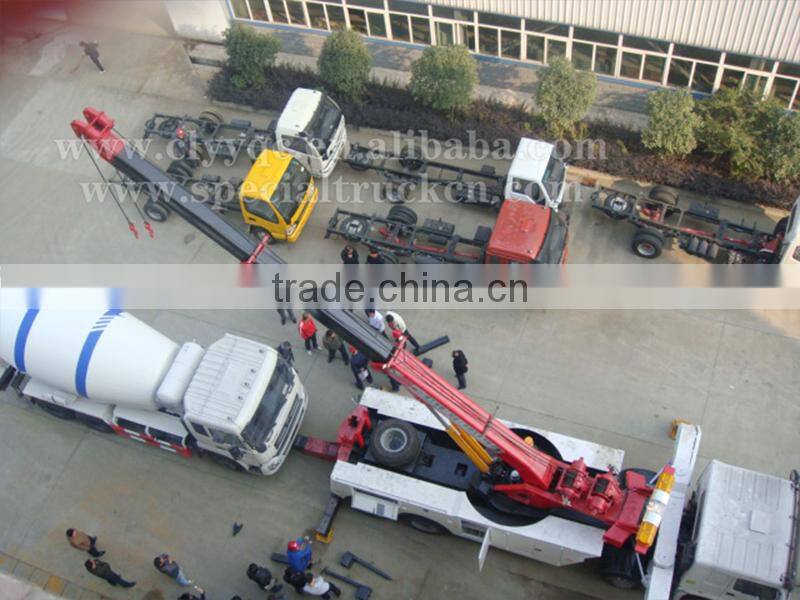

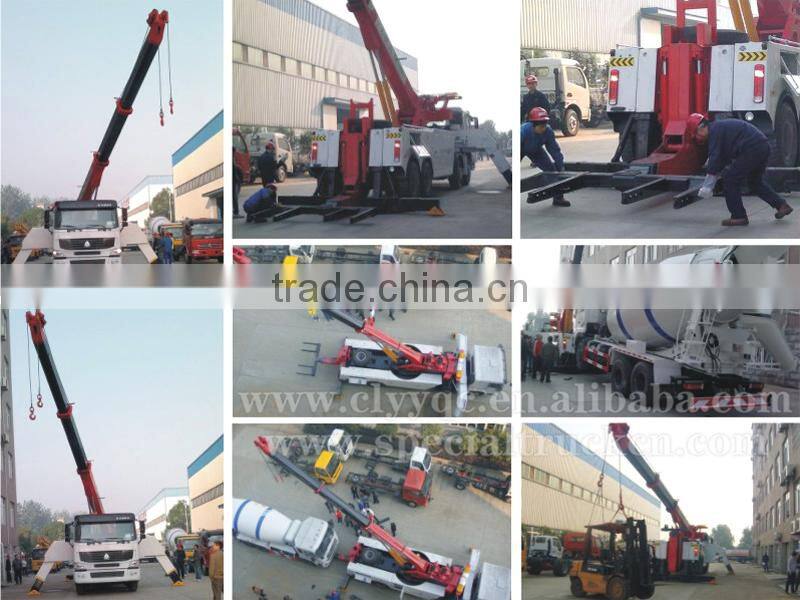

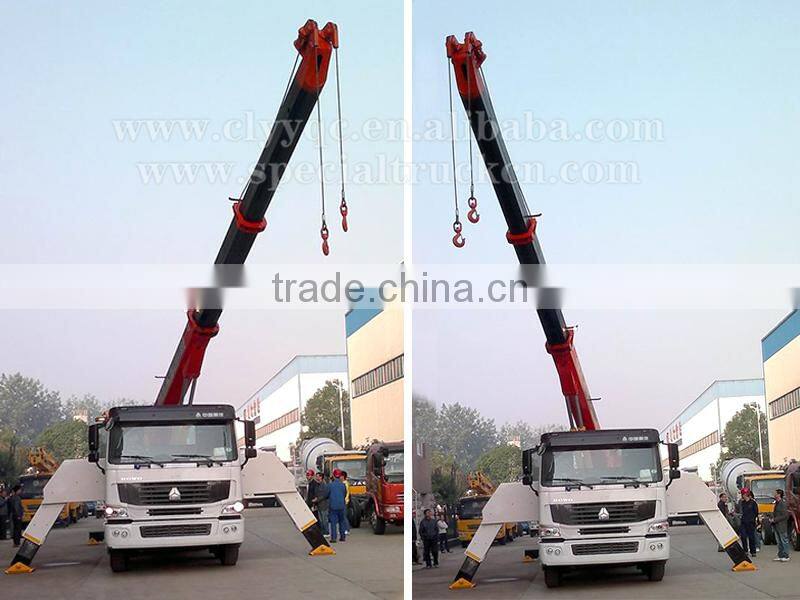

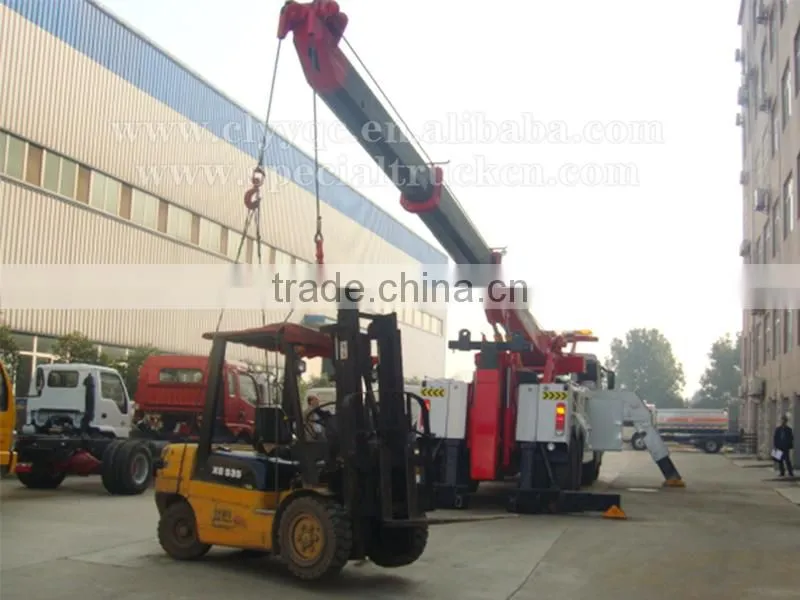

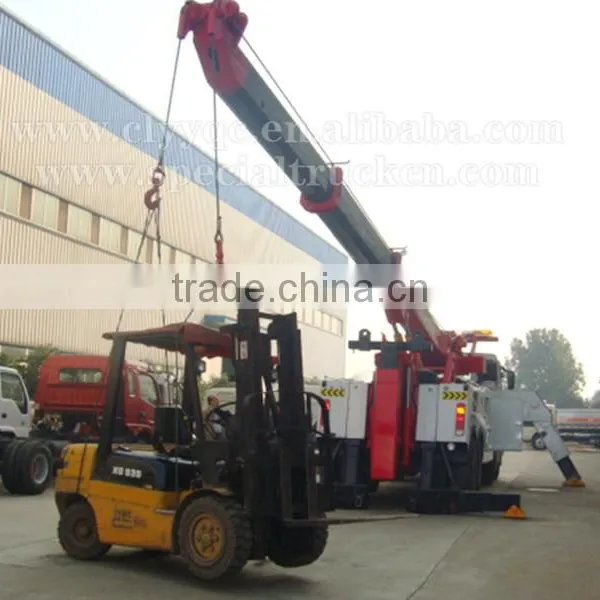

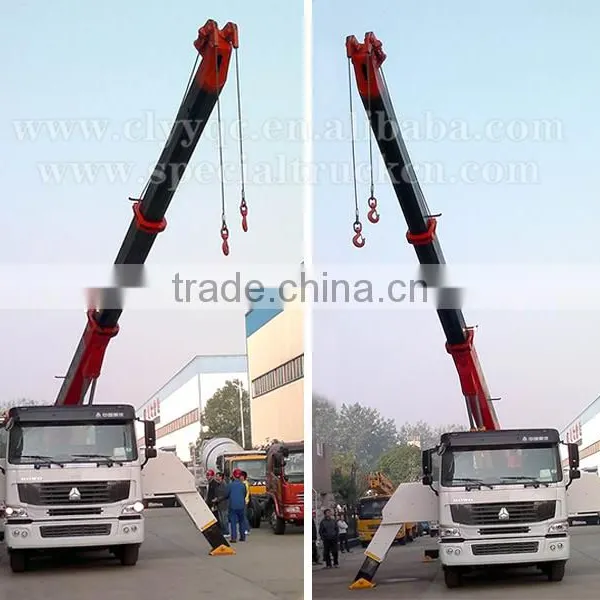

Hoisting system

Max hoisting weight(Kg)

30000

Fully extended max hoisting weight(Kg)

3500

Basic arm length(mm)

5420

Total arm length(mm)

11420

Oil cylinder stretching stroke(mm)

6000

Max hoisting height(mm)

12000

Hoisting angle(°)

5~60

Rotation angle(°)

360°Continuous rotary

Winch

Qty(Piece)

2

Rated traction(kN)

150X2

Steel wire rope diameter(mm)

φ22

Steel wire rope length(m)

55X2

Minimum rope speed of steel wire rope(m/min)

5

Outrigger

Outrigger model

40ZT1

Front outrigger lateral span(mm)

6100

Rear outrigger lateral span(mm)

4000

Front and rear outrigger longitudinal span

7500

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
