Home > Transportation > Specialized Vehicle > Wrecker > SHACMAN 8x4 16Ton Tow Truck Wrecker

SHACMAN 8x4 16Ton Tow Truck Wrecker

SHACMAN 8x4 16Ton Tow Truck Wrecker photo-1
SHACMAN 8x4 16Ton Tow Truck Wrecker photo-2
SHACMAN 8x4 16Ton Tow Truck Wrecker photo-3

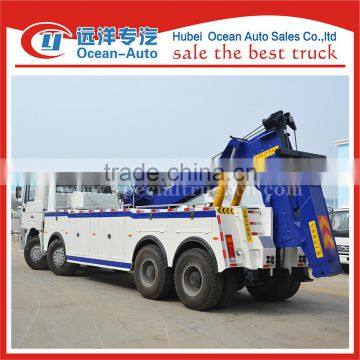

SHACMAN 8x4 16Ton Tow Truck Wrecker photo-4

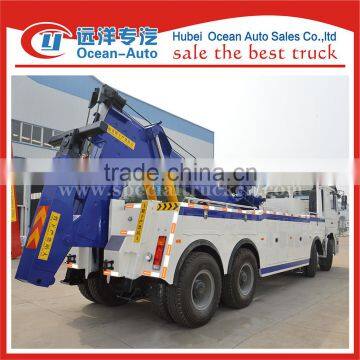

SHACMAN 8x4 16Ton Tow Truck Wrecker photo-5
SHACMAN 8x4 16Ton Tow Truck Wrecker photo-6
US$ 75,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Fuel Type:
Diesel
Emission Standard:
Euro 3
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Usually Shanghai port or any other ports in China as your request
Delivery Detail:
Delivery time depends on order quantity.
Fuel Type Diesel
Emission Standard Euro 3
Condition New
Transmission Type Manual
Dimensions (L x W x H) (mm) 11480x2500x3273,3720
Place of Origin Hubei, China
Brand Name SHACMAN
Model Number WHZ5381TQZ

SHACMAN 8x4 16Ton tow truck wrecker

Detailed Parameter

Main specification

Product model and name

WHZ5381TQZ tow truck wrecker

Gross weight(Kg)

38000

Drive type

8X4

Curb weight(Kg)

21805

Overall dimension(mm)

11480×2500×3273,3720

Approach/departure angle(°)

16/13

Cab seats

3

Axle No.

4

Front/rear hang(mm)

1525/2305

Axle load(Kg)

7000/7000/24000

Wheelbase(mm)

1800+4500+1350

Max speed(Km/h)

90





Chassis specification

Chassis model

SX1315NM456

Manufacturer

Shacman Auto Group Co.,Ltd

Brand name

Shacman

Dimension(mm)

11675×2490×3720

Tyre specification

12.00R20

Tyre No.

12

Steel spring number

13/12

Front track base(mm)

1939/1939

Fuel type

Diesel

Rear track base(mm)

1800/1800

Emission standard

Euro 3

Transmission

9 forward gear,1 reverse gear(manual)

Cab

F2000 lengthen top cab, electric window regulator, central control door lock, PXD-B dashboard with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

WP10.270E32

Weichai Power Co.,Ltd

9726

199(270 HP)

Performance

Lifting system

Max lifting capacity(kg)

16000

Fully extended max lifting capacity(kg)

7310

Effective length of the bracket arm(mm)

1460 to 3099

Bracket arm flexible stroke(mm)

1639

Hoisting system

Max hoisting capacity(kg)

18000

Farthest hoisting capacity(kg)

8000

Max hoisting height(mm)

6500

Winch

QTY(piece)

2

Rated traction for each(kN)

100

Steel wire rope diameter(mm)

18

Steel wire rope length(m)

45

Instruction

The wrecker truck is equipped with lifting, pulling and hoisting etc. on the basis of special purpose chassis.It has the function of lifting, pulling, hoisting , lift platform and load transportation and others.It is mainly used for road fault vehicles,city peccancy vehicles and emergency rescue etc.The wrecker truck is widely used in highway,the traffic police, airport, wharf, auto repair industry and highway departments etc.It can be used to clean up the accident, fault, violation vehicles etc .timely and quickly.

Product Show

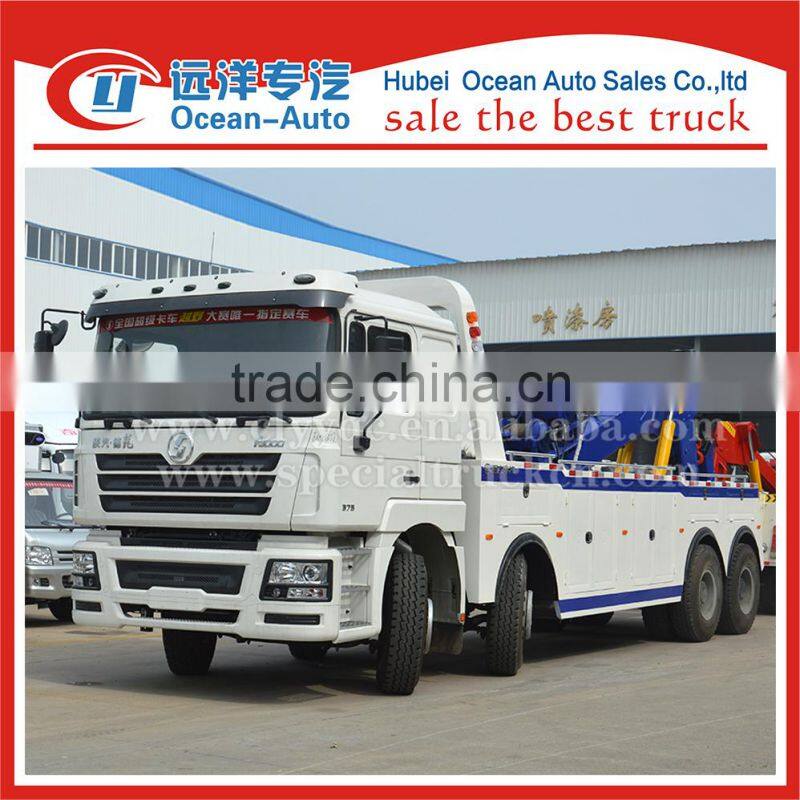

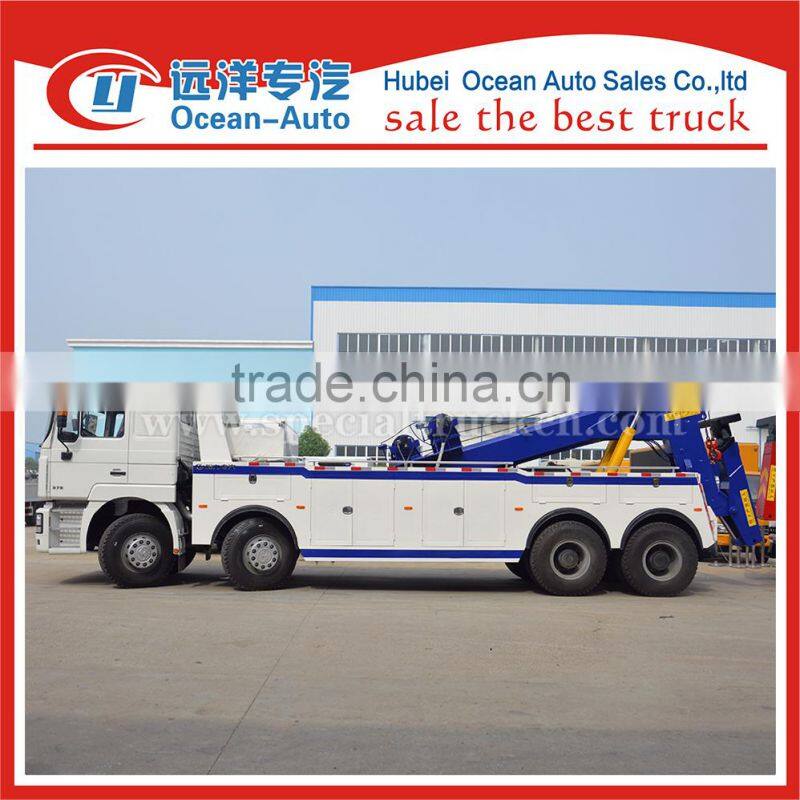

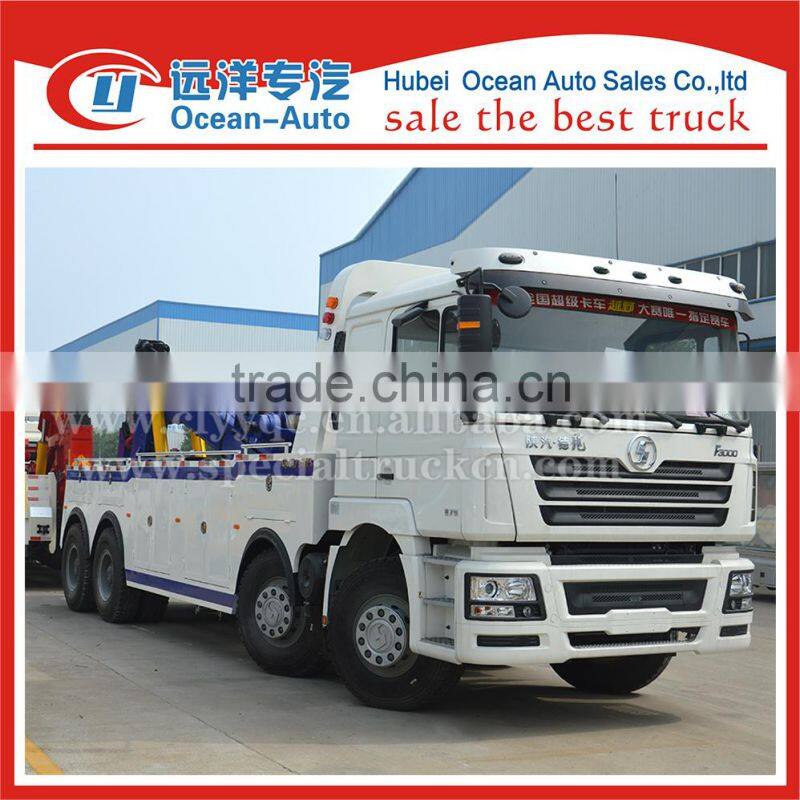

SHACMAN 8x4 16TON tow truck wrecker image

SHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wrecker

SHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wrecker

Operation Image

 SHACMAN 8x4 16Ton tow truck wreckerTow truck wreckers in bulk exported to oversea market

SHACMAN 8x4 16Ton tow truck wrecker

Shipping show

SHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wrecker

Packaging & Shipping

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Company Information

SHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wreckerSHACMAN 8x4 16Ton tow truck wreckerCustomer visiting

SHACMAN 8x4 16Ton tow truck wrecker

Our Certificates

SHACMAN 8x4 16Ton tow truck wrecker

Our Services
A.Delivery time
Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY.
B.Terms of payment
30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
C.After-sales warranty to solve our clients’ worries when purchasing
The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life.
