JAC 4X2 10000liters /10cbm water tank truck for sale
Main specification | ||||||||||
Product model and name |
XZL5163GSS3 water tank truck |
|||||||||
Gross weight(Kg) |
15950 |
Drive type |
4X2 |
|||||||
Payload(Kg) |
7500 |
Overall dimension(mm) |
8500X2350X2860 |
|||||||
Curb weight(Kg) |
8255 |
Cab seats |
3 |
|||||||
Approach/departure angle(°) |
16/10 |
Front/rear hang(mm) |
1535/2265 |
|||||||
Axle No. |
2 |
Wheelbase(mm) |
4700 |
|||||||
Axle load(Kg) |
5950/10000 |
Max speed(Km/h) |
98 |
|||||||
Chassis specification | ||||||||||
Chassis model |
HFC1166KR1T |
Manufacturer |
Anhui Jianghuai Auto Co.,Ltd |
|||||||
Brand name |
JAC |
Dimension(mm) |
8030,8230,7235X2195X2860 |
|||||||
Tyre specification |
9.00-20 |
Tyre No. |
6 |
|||||||
Steel spring number |
9/9+7 |
Front track base(mm) |
1900,1963 |
|||||||
Fuel type |
Diesel |
Rear track base(mm) |
1800 |
|||||||
Emission standard |
Euro 3 |
Transmission |
6 forward gear,1 reverse gear |
|||||||
Cab |
Luxurious interior trim with dashboard and air condition, sleeper. |
|||||||||
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||||
YC6J180-33 |
Guangxi Yuchai Machinery Co.,Ltd |
6494 |
132 |
|||||||
Performance | ||||||||||
Tank volume(m³) |
10(10 000liter) |
Tank material |
Carbon steel Q235 |
|||||||
Water pump model |
80QZF-60/90N |
Water pump flow(m³/h) |
60 |
|||||||
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
|||||||
Feature and Application | ||||||||||
|
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. | ||||||||||

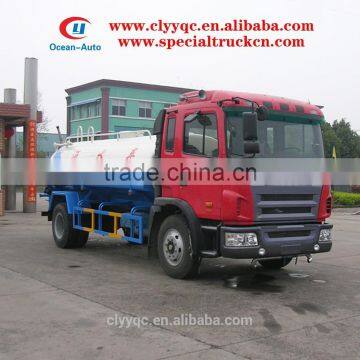

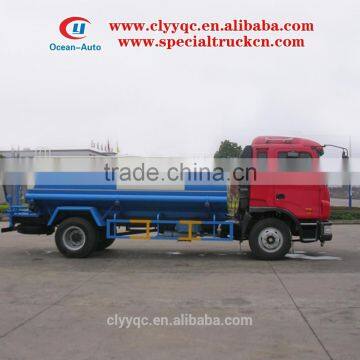

JAC water tank truck image

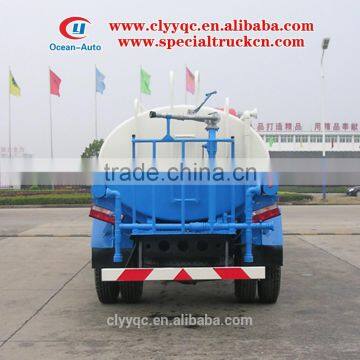

Detailed parts of JAC water tank truck
Water tank truck volume of small to big series image
Water tank trucks in bulk exported to oversea market
Customer visiting
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
