Dongfeng 8X4 Tractor Water Tanker 25000liter Water Tanker Truck for Sale

Name: Dongfeng 8X4 Tractor Water Tanker 25000liter Water Tanker Truck for Sale
Brand: Dongfeng
SKU: 140784496
Availability: InStock

US$ 20,000 - 60,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

Other, 8X4

Fuel:

Diesel

Transmission Type:

Manual

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Usually Shanghai or any other ports in China as your request

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel Other, 8X4

Fuel Diesel

Transmission Type Manual

Condition New

Emission Standard Euro 3

Tank Volume 15001 - 30000L

Dimensions (L x W x H) (mm) 11960X2500X3690,3250

Brand Name Dongfeng

Place of Origin Hubei, China

Model Number HLQ5310GSSD

Gross Vehicle Weight 31000

Certification ISO9001,ISO14001 and CCC

Warranty One year since you get the truck and under the normal operation

After-sales Service Provided Overseas service center available

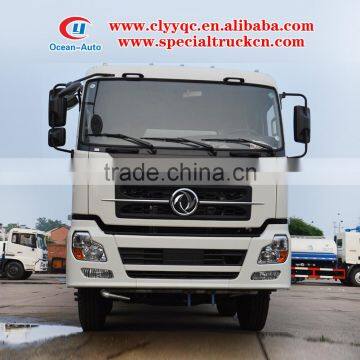

Dongfeng 8X4 tractor water tanker 25000liter water tanker truck for sale

Detailed spec. of tractor water tanker water tanker truck

Main specification
Product model and name		HLQ5310GSSD water truck
Gross weight(Kg)		31000		Drive type				8X4
Payload(Kg)		18900,18965		Overall dimension(mm)				11960X2500X3690,3250
Curb weight(Kg)		11905		Cab seats				3
Approach/departure angle(°)		28/12		Front/rear hang(mm)				1460/2620
Axle No.		4		Wheelbase(mm)				1850+4600+1350
Axle load(Kg)		6500/6500/18000		Max speed(Km/h)				90
Chassis specification
Chassis model	DFL1311A4		Manufacturer				Dongfeng Motor Co., Ltd
Brand name	Dongfeng		Dimension(mm)				11475X2500X3030,3600,3690
Tyre specification	11.00R20		Tyre No.				12
Steel spring number	8/8/10		Front track base(mm)				1940/1940
Fuel type	Diesel		Rear track base(mm)				1860/1860
Emission standard	Euro 3		Transmission				9 forward gear,1 reverse gear
Cab	Luxurious interior trim with dashboard and air condition, sleeper.
Engine model	Engine manufacturer					Displacement(ml)			Power(Kw)
L315 30	Dongfeng Cummins Engine Co.,Ltd					8900			231
Performance
Tank volume(m³)	25				Tank material					Carbon steel Q235
Water pump model	80QZF-60/90N				Water pump flow(m³/h)					60
Watering width(M)	≥14				Water cannon range (M)					≥28

The features and application of tractor water tanker
A.The main component of tractor water tanker
The key part of water truck mainly consists of tank, water pump, high pressure resistance water cannon, ball valves, water pipes and sprinklers. All of the pump, ball valves are the national standard brand, have the feature of good function, reliable quality, powerful, large flow, low oil waste etc.
B.The feature and material of our tank
It is fully sealed with high strength and good corrosion resistance as well as good environmental protection. About the material of our tank, stainless steel tank is optional. It depends on our clients’ request.
C.The practical and comprehensive function of our water truck
Equipped with front, rear and side sprinklers, and rear working platform. The water cannon which is installed on the working platform that can rotate 360 degree and the water flow can be adjusted into various rain shape.
D.The applied range of our water tank truck
Mainly used for big medium and small cities' road washing and dust full, watering on trees, green belts and lawn , construction site dust full .And also used for drinking water delivery and fire fighting function etc.
E.Various options to satisfy our clients' request
Customers can choose to install different special devices according to their demands, such as crane arm, high working platform and pesticide-spraying gun and so on.
F.OEM is available.
