china manufacturer HOWO 20000l vacuum sewage sucker truck
1. We are professional manufacturers for the special vehicles,locate in Suizhou City,Hubei province,which is the birthplace of special purpose vehicle .We coulld supply all kinds of brand of special
trucks, such as Dongfeng ,Faw,Jmc,Shacman,north Benz(beiben),Toton,Sinotruck,Jac,etc.
2.The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3.LHD (left hand drive) or RHD (right hand drive) vehicles are optional .
4.We can customize the truck according to your requirement, such as material, tanker capacity,
color, paint, logo, etc.
Below specification is just for your reference. More information of our Sewage Suction Truck,
please feel free to contact with Ms. April Zhu. we have a professional team and professional
answer for you.
Main specifications | ||||||||||
Product model,name |
CSL5250GXWZ, Sewage suction truck |
|||||||||
Gross weight(Kg) |
25000 |
Driving type |
6*4 |
|||||||
Payload (Kg) |
13000 |
Overall dimension (mm) |
10100*2490*3850 |
|||||||
Curb weight(Kg) |
11870 |
Cab seats (man) |
3 |
|||||||
Approach/departure angle (°) |
16/18 |
Front/rear hang(mm) |
1500/2445,1500/2420 |
|||||||
Axle No. |
3 |
Wheelbase (mm) |
4600+1350 |
|||||||
Axle load(Kg) |
7000/18000 |
Max speed(Km/h) |
90 |
|||||||
Chassis specifications | ||||||||||
Chassis model |
ZZ1257N4647C |
Manufacture |
CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO.,LTD |
|||||||
Brand name |
SINOTRUK |
Overall dimension (mm) |
9895*2496*2958 |
|||||||
Tire specification |
11.00-20 |
Tires No. |
6+1 |
|||||||
Steel spring number |
10/12,4/12 |
Front track(mm) |
2022,2041 |
|||||||
Fuel type |
Diesel |
Rear track(mm) |
1830/1830 |
|||||||
Emission standard |
Euro Ⅲ |
Gear box |
10forward |
|||||||
Cab |
||||||||||
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||||
WD615.95E |
Weichai Holding GroupCo., Ltd. |
9726 |
247 |
|||||||
Tank body | ||||||||||
Tank capacity(m³) |
20 |
Tank material |
Q235 carbon steel |
|||||||
Main Characteristic | ||||||||||
|
1)The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up 2)the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, 3)the truck is widely used. Full tank pumpingtime: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects. | ||||||||||

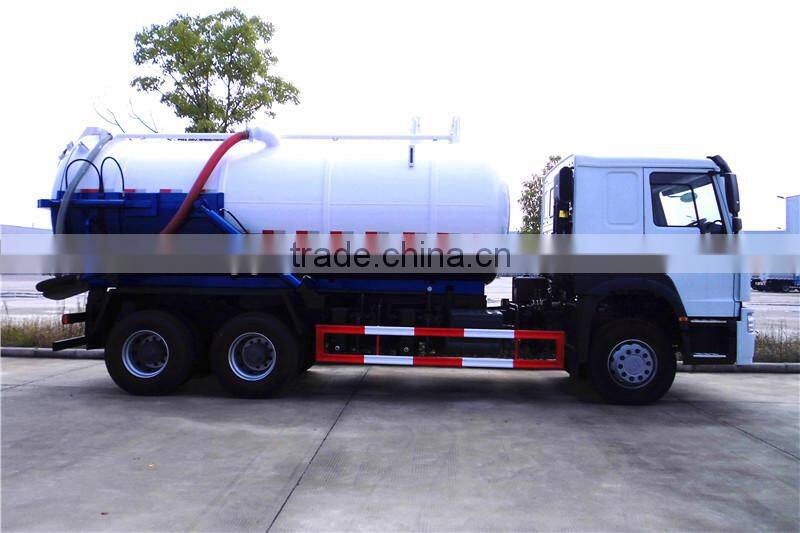

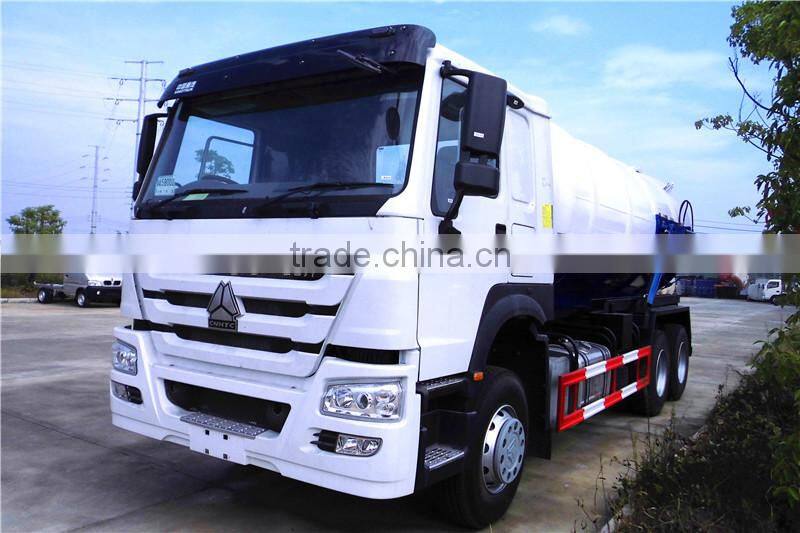

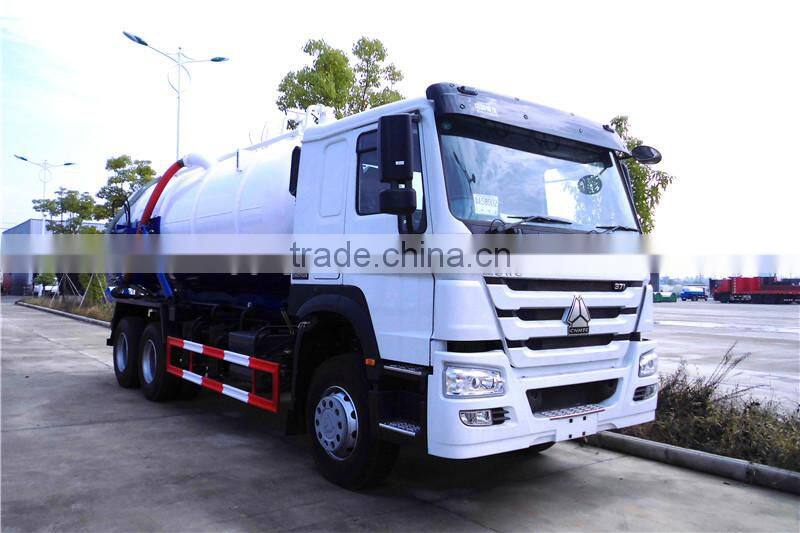

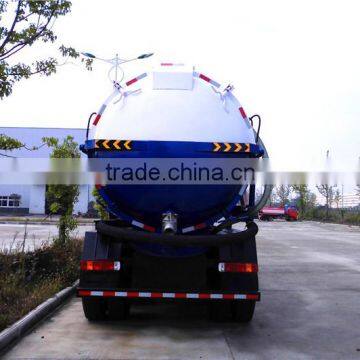

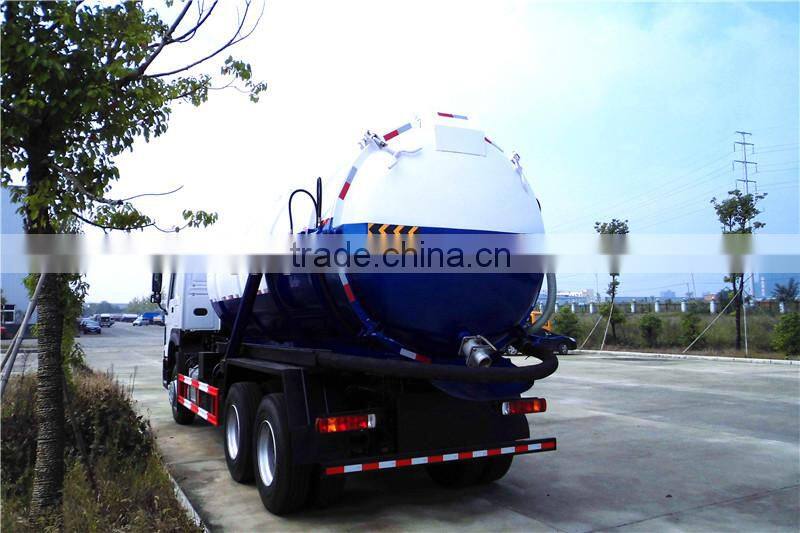

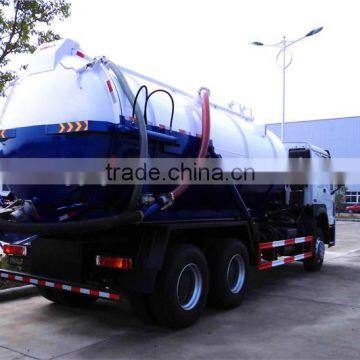

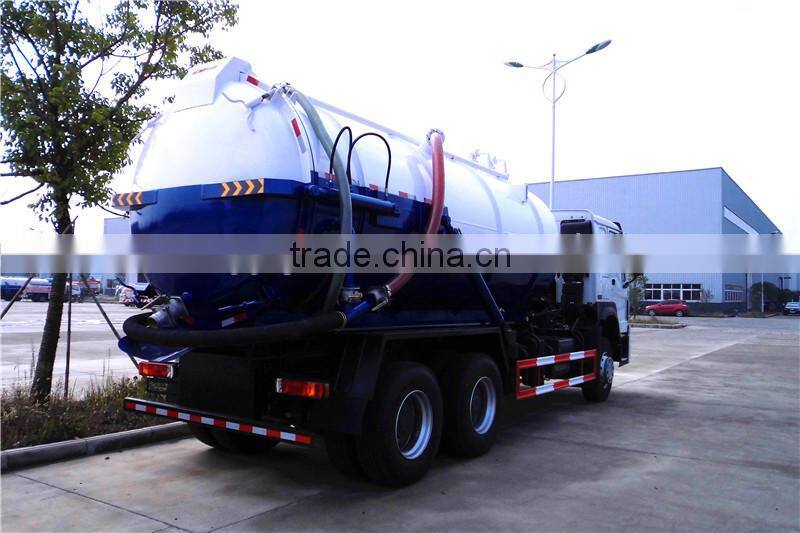

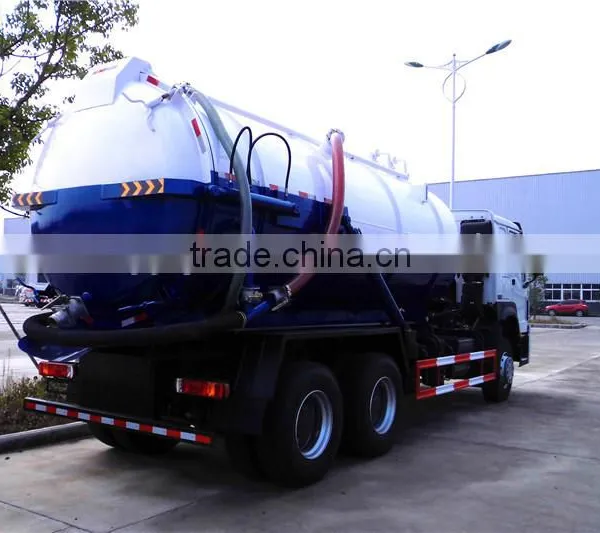

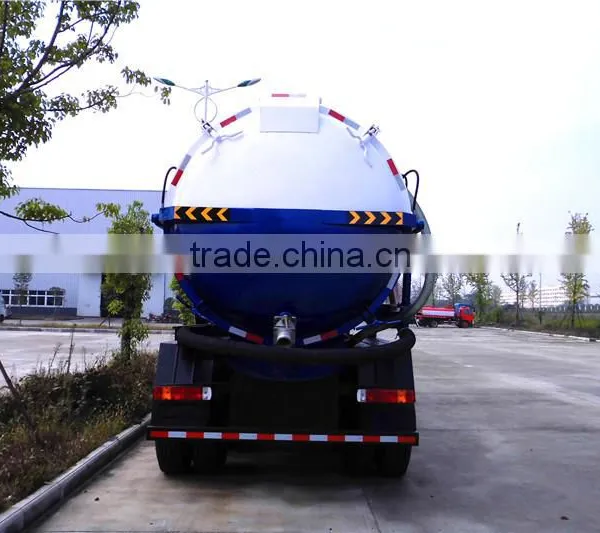

Vacuum sewage suction truck main part show and main application
Our sales team will try our best to provide the information what is your needs.
All questions response in 12 hours. We are glad to service for you.
