Aluminum Vacuum Tank Truck 4000L With Optional Chassis

Aluminum Vacuum Tank Truck 4000L With Optional Chassis photo-1
Aluminum Vacuum Tank Truck 4000L With Optional Chassis photo-2
Aluminum Vacuum Tank Truck 4000L With Optional Chassis photo-3

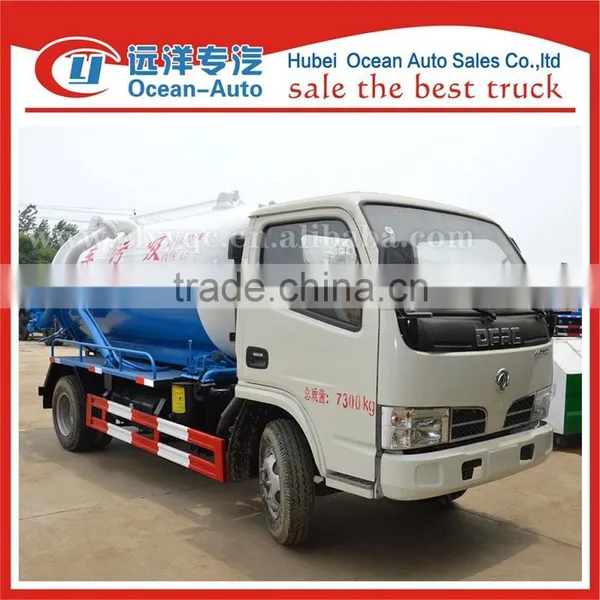

Aluminum Vacuum Tank Truck 4000L With Optional Chassis photo-4
Aluminum Vacuum Tank Truck 4000L With Optional Chassis photo-5
US$ 17,075 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other port of China
Delivery Detail:
Delivery time depends on order quantity.
Transmission Type Manual
Condition New
Emission Standard Euro 3
Fuel Type Diesel
Tank Volume 4000L
Dimension (L x W x H) 5950*2045*2450
Place of Origin Hubei, China
Brand Name Dongfeng
Model Number CSC5070GXW3
Horsepower 115
Gross Vehicle Weight 7495

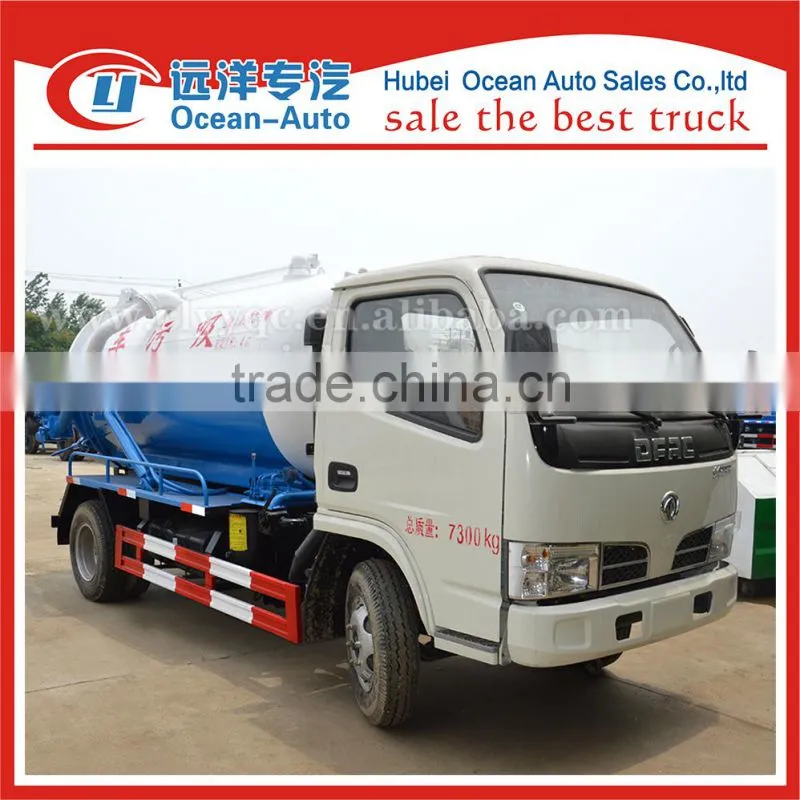

aluminum vacuum tank truck 4000L with optional chassis

Product Description



Main specifications

Product model,name

     CSC5070GXW3 Sewage suction truck

Gross weight(Kg)

7495

Driving type

4x2

Payload (Kg)

3500

Overall dimension (mm)

5950×2045×2450

Curb weight(Kg)

3800

Cab seats (man)

3

Approach/departure angle (°)

20/17

Front/rear hang(mm)

1115/1535

Axle No.

2

Wheelbase (mm)

3300

Axle load(Kg)

3200/4295

Max speed(Km/h)

95

Chassis specifications

Chassis model

EQ1070T35DJ3AC

Manufacture

Dongfeng Automobile Co,.Ltd

Brand name

Dongfeng brand

Overall dimension (mm)

5895×2045×2210

Tire specification

7.00-16

Tires No.

6

Steel spring number

8/9+5

Front track(mm)

1586

Fuel type

Diesel

Rear track(mm)

1530

Emission standard

Euro

Gear box

5

Cab



Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

YC4F115-30

Guangxi Yuchai Machinery co,  Ltd

2659

85

Tank body

Tank capacity()

4

Tank material

Q235 carbon steel

Main Characteristic

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on  both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.





Product Overviews

. aluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassis














Technology

aluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassisaluminum vacuum tank truck 4000L with optional chassis











aluminum vacuum tank truck 4000L with optional chassis



aluminum vacuum tank truck 4000L with optional chassis



aluminum vacuum tank truck 4000L with optional chassis

aluminum vacuum tank truck 4000L with optional chassis









Service details



If you want to know more about the truck ,our sales team will try our best to provide the information what is your needs. All questions response in 12 hours. We are glad to service for you
