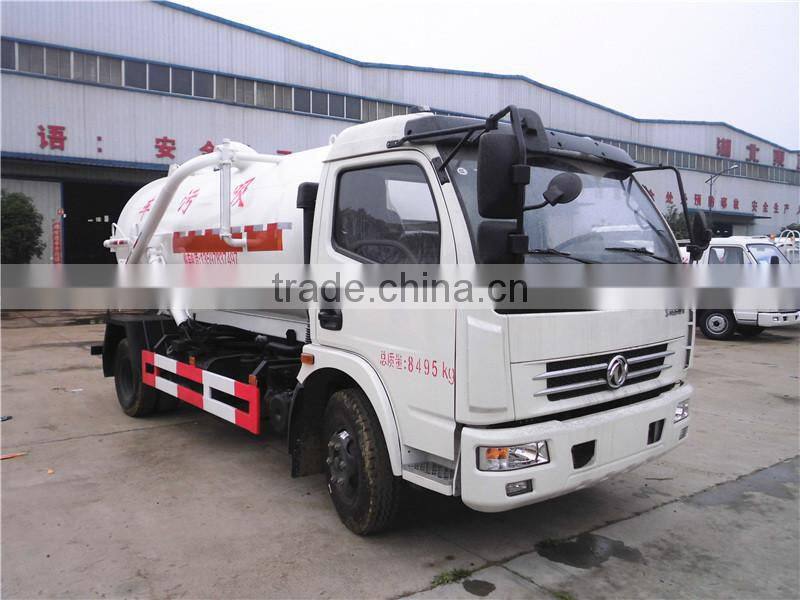

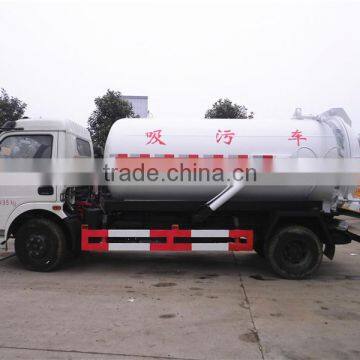

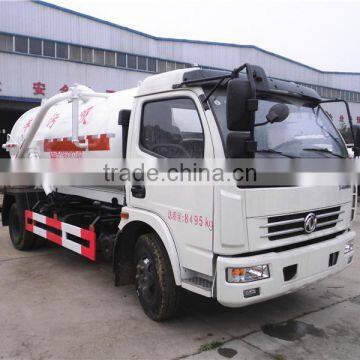

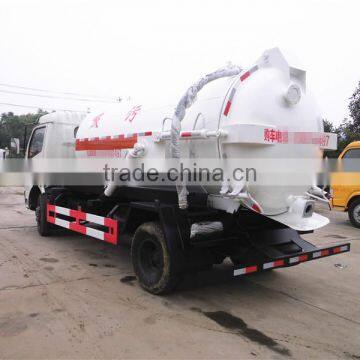

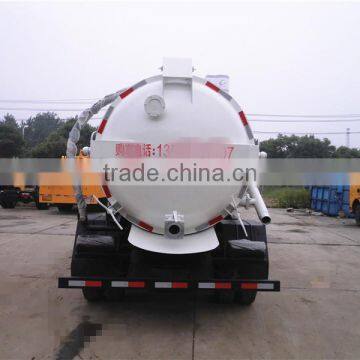

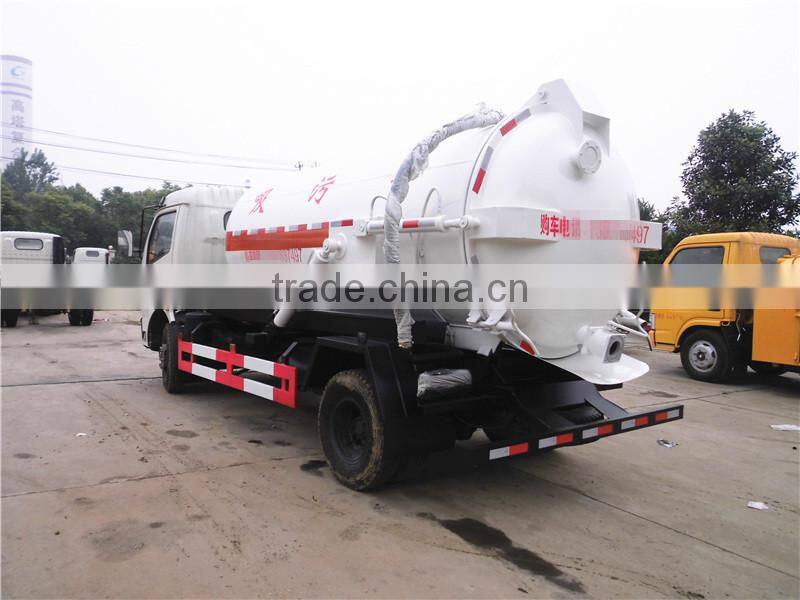

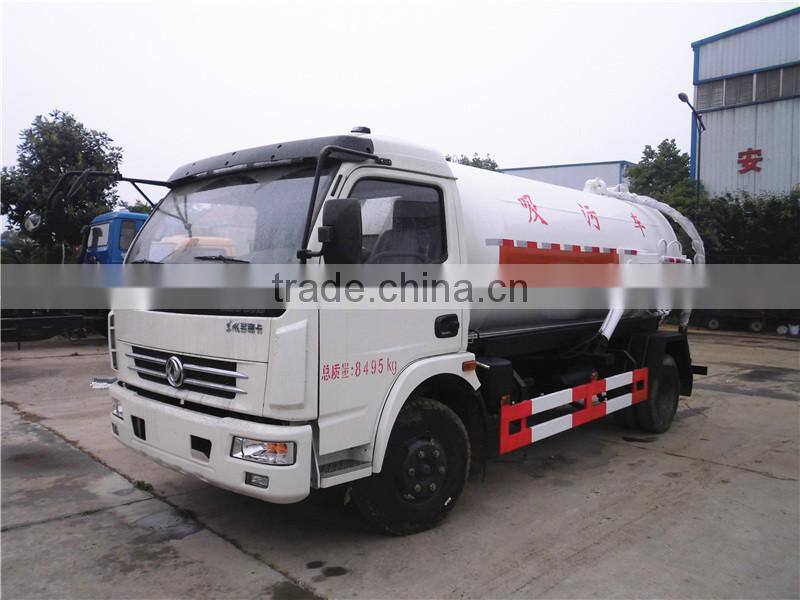

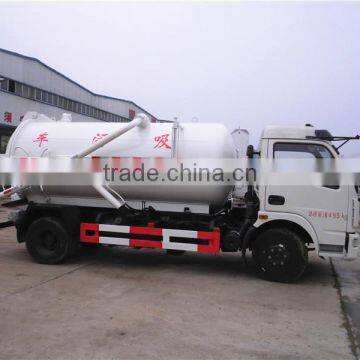

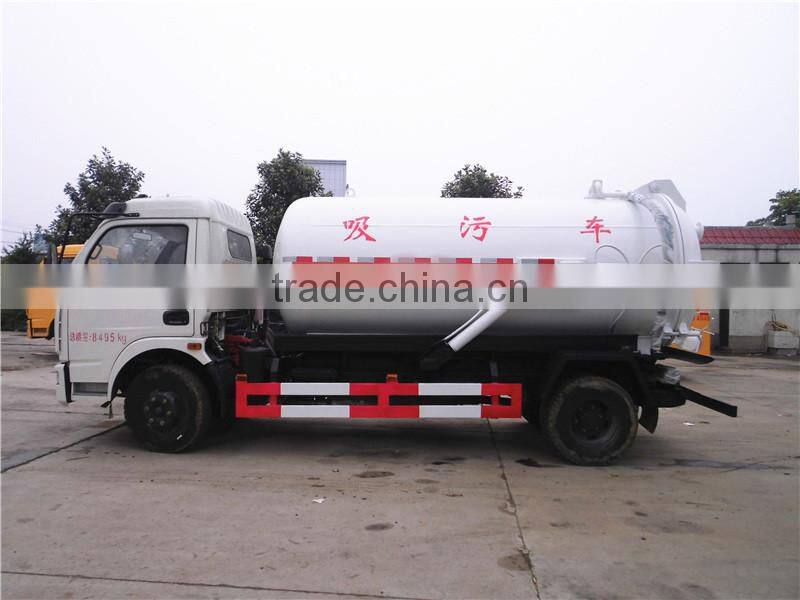

Dongfeng mini 5cbm sewage suction tanker truck
Main specifications | ||||||||||
Product model,name | EQ1090T9ADJ3AC sewage suction tanker truck | |||||||||
Gross weight(Kg) | 9400 | Drive type | 4X2 | |||||||
Payload (Kg) | 4700 | Overall dimension (mm) | 6700X2350X2650 | |||||||
Curb weight(Kg) | 4505 | Cab seats (man) | 3 | |||||||
Approach/departure angle (°) | 22/13 | Front/rear hang(mm) | 1180/1720 | |||||||
Axle No. | 2 | Wheelbase (mm) | 3800 | |||||||
Axle load(Kg) | 3460/5940 | Max speed(Km/h) | 95 | |||||||
Chassis specifications | ||||||||||
Chassis model | EQ1090T9ADJ3AC | Manufacture | Dongfeng Automobile Co,.Ltd | |||||||
Brand name | Dongfeng | Overall dimension (mm) | 6695×2285×2480 | |||||||
Tire specification | 7.50R16 | Tires No. | 6+1(for the spare) | |||||||
Steel spring number | 11/9+7 | Front track(mm) | 1831 | |||||||
Fuel type | Diesel | Rear track(mm) | 1640 | |||||||
Emission standard | Euro Ⅲ | Gear box | 5 forward gear,1 reverse gear | |||||||
Cab | Single row, luxurious interior and seat, with power steering, optional air condition | |||||||||
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | |||||||
CY4102-E3C | Dongfeng Chaoyang Chaochai Power Co.,Ltd | 3856 | 91 | |||||||
Tank body | ||||||||||
Tank capacity(m³) | 5 to 6 | Tank material | Q235 carbon steel | |||||||
Main Characteristic | ||||||||||
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects. | ||||||||||
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
