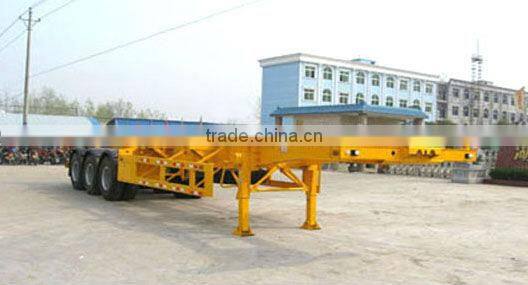

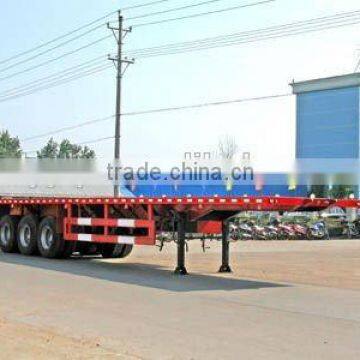

Low Transport Semi Trailer, Flat Deck Semi Trailer

Vehicle model

CLW9400TJZG Container transport semi-trailer

Batch No.

230

Manufacturer

Hubei Chengli Special purpose automobile Co. ,Ltd(china)

Brand name

CLW

Overall dimension(mm)

12400x2480x1510

Total weight(Kg)

39600

Approach/departure angle

-/13.5

Curb weight(Kg)

6500

Front/rear hang(mm)

-/1560

Max speed(km/h)

Axle number

3

Tyre number

12

Wheelbase

7470+1360+1360

Tyre specification

11.00-20 12PR

Others

The car used to transport a 40-foot container or tank containers frame traction pin at frame total height of 85mm. Protective Material: Q235A carbon steel,

connections: left and right side, and the rear lower protective welding connection,

rear protective section size (mm): 210 × 50 × 5

the rear protective ground clearance (mm): 480.

ABS manufacturers: Haldex International Trading (Shanghai) Co., Ltd.,

ABS Model: 4S/3M.
